IPC-603MB User Manual 10

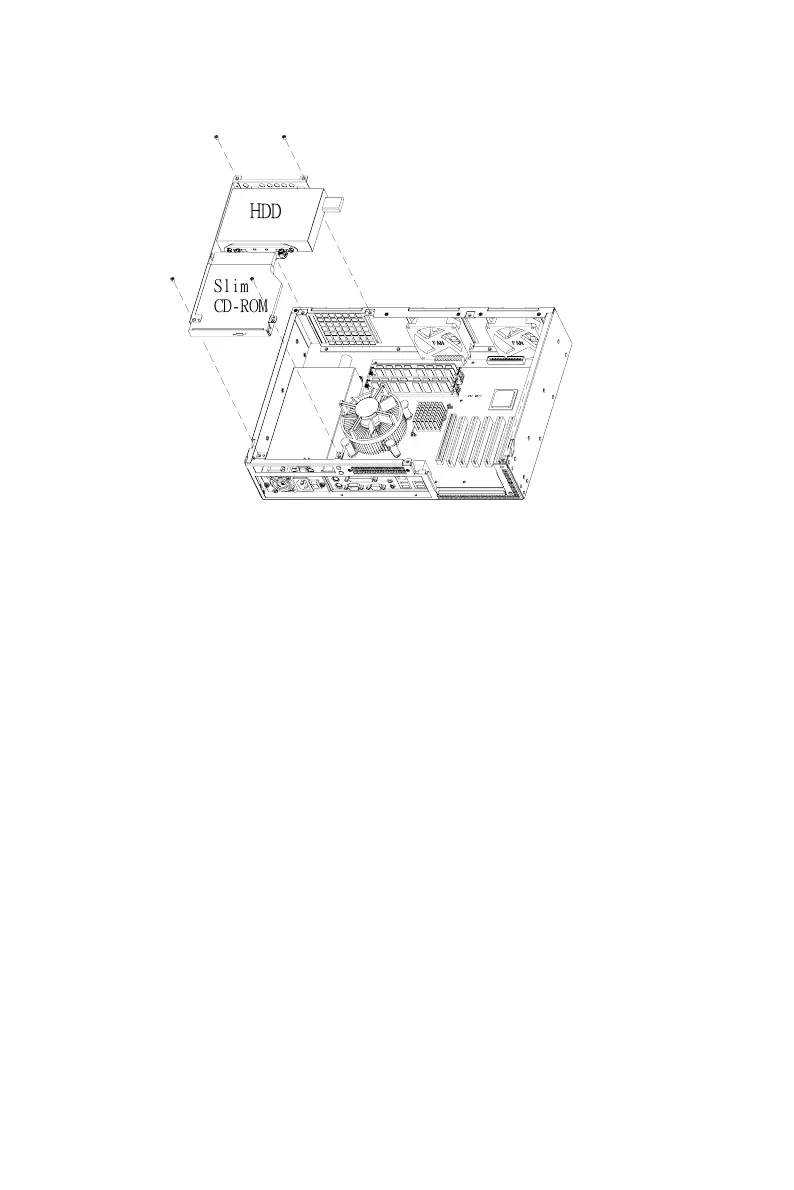

Figure 2-5 Place the drive bay bracket kit into IPC-603MB chassis
1. Open the top cover of IPC-603MB chassis.
2. Remove the four screws that mount the drive bay bracket kit in
IPC-603MB chassis.
3. Remove the blank cover of the slim-type CD-ROM from the
bracket kit.
4. Refer to Figure 2-4 and mount a slim-type CD-ROM/-RW and a
3.5" HDD with screws.
5. Refer to Figure 2-5 to return the drive bay bracket kit into the IPC-
603MB chassis and fix it with screws.
6. Connect a 40-pin flat cable from the motherboard to the slim-type
CD-ROM/-RW, and another 40-pin flat cable to an ATA (IDE)
HDD or a SATA cable to a SATA HDD. Insert the proper power
connectors into each drive.
H
D
D
S
l
i
m
C
D
-
R
O
M
