7 Chapter 2
2.1 Removing the Cover
To remove the top cover of IPC-603MB, please refer to Figure 2-2.

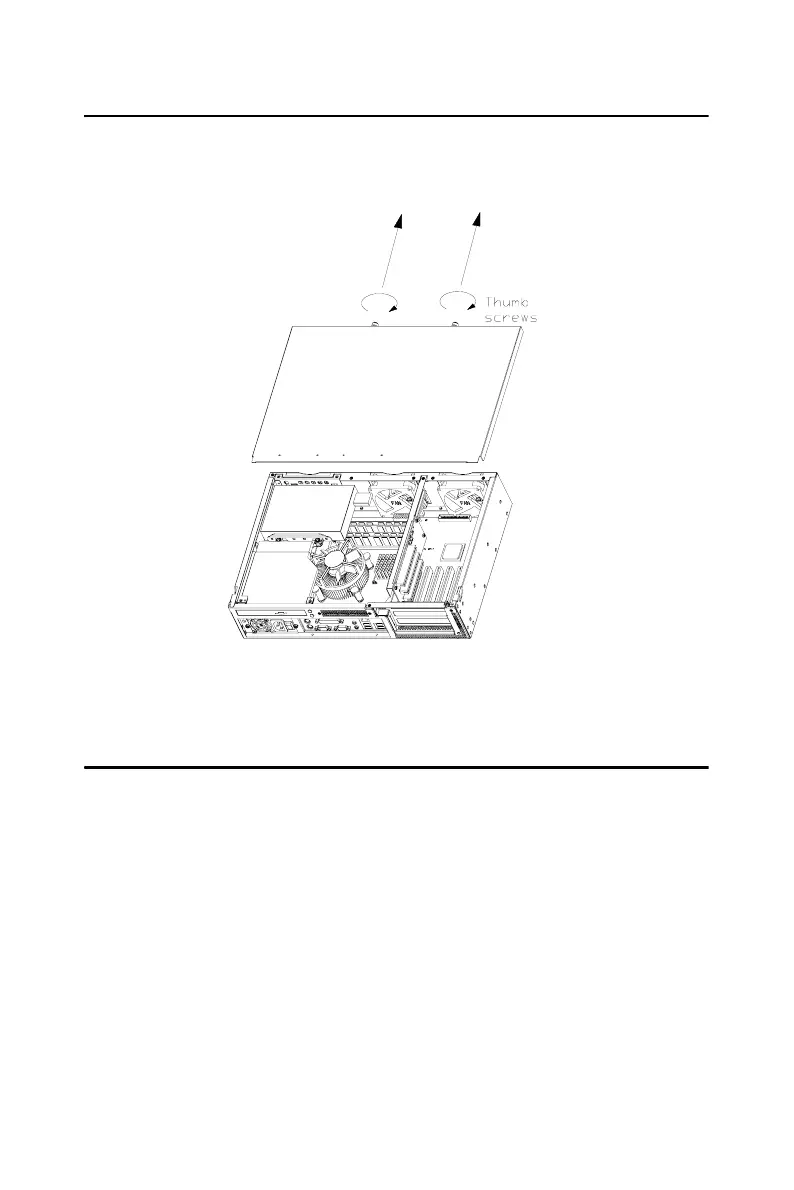

Figure 2-2 Removing the top cover
2.2 Installing a Motherboard
IPC-603MB accepts both ATX and microATX motherboards. To install a
motherboard, refer to Figure 2-1 and proceed as follows:
1. Remove the three screws from the L-form riser card holder in the
IPC-603MB chassis. It is NOT necessary to remove the riser card
from the L-form bracket.
2. From inside of the chassis, attach the motherboard I/O shield to the
front plate of the chassis.
Note Use a CPU cooler that is less than 60 mm high to
ensure the best air flow inside the chassis.
