IDK-2115 User Manual 30

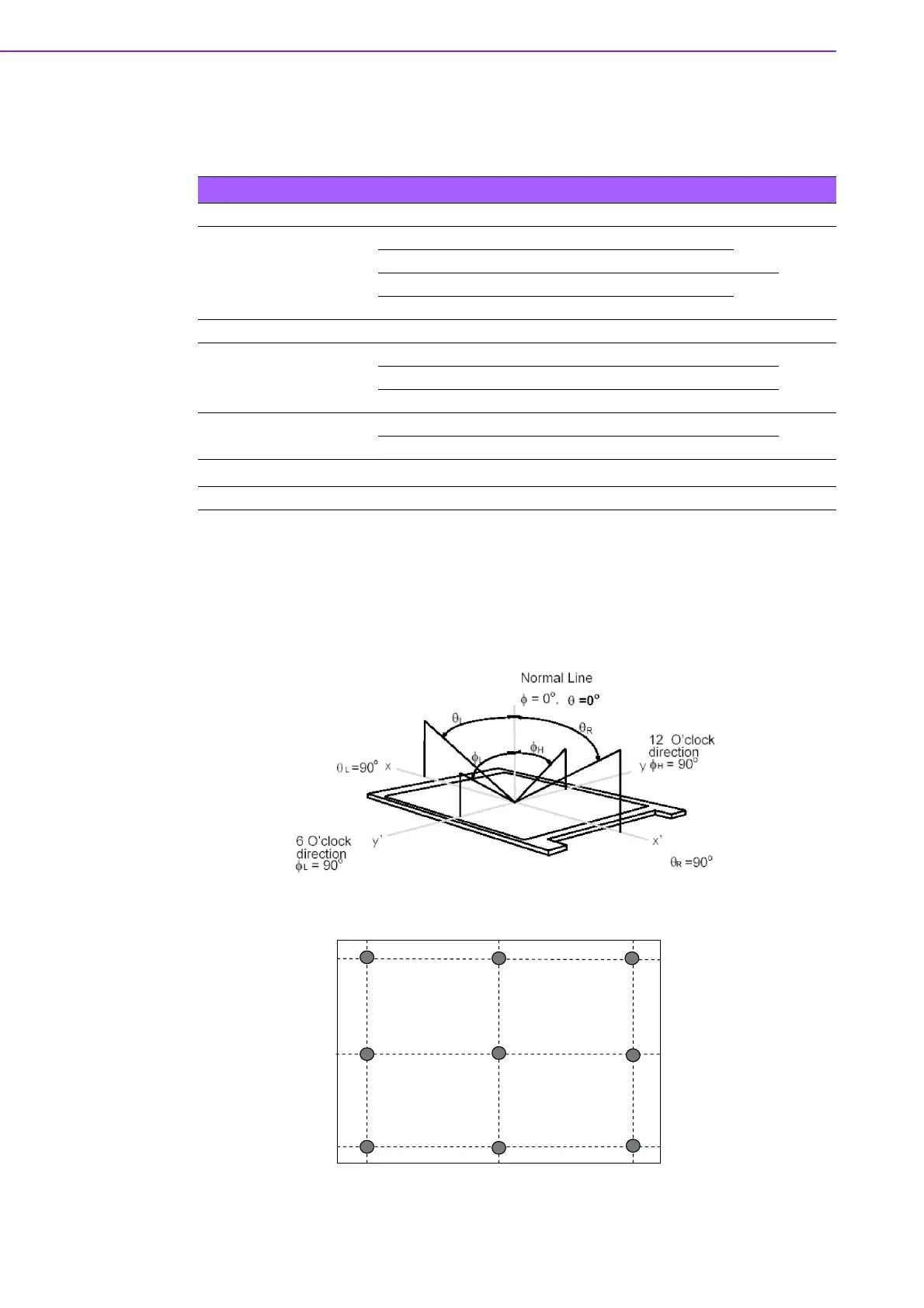

A.1 LCD Optical Characteristics
The optical characteristics are measured under stable conditions at 25°C (Room
Temperature):
Note(1): Definition of viewing angle
Viewing angle is the measurement of contrast ratio R10, at the screen center, over a
180° horizontal and 180° vertical range (off-normal viewing angles). The 180° view-
ing angle range is broken down as: 90° ) horizontal left and right, and 90° () verti-
cal high (up) and low (down). The measurement direction is typically perpendicular to
the display surface with the screen rotated to its center to develop the desired mea-
surement viewing angle.
Note(2): 9-point position
Note(3): 9-point luminance uniformity is defined by dividing the maximum luminance
values by the minimum test point luminance
Table A.1: Optical Characteristics
Item Unit Conditions Min. Typ. Max. Note
Viewing Angle
[degree] Horizontal (Right) 80 88
-
(1)
CR = 10 (Left) 80 88
Vertical (Upper) 80 88
-
CR = 10 (Lower) 80 88
Luminance Uniformity [%] 9 Points 70 75 - (2), (3)
Optical Response Time
[msec] Rising - 16 21
(5)Falling - 7 14
Rising + Falling - 23 35
Color/Chromaticity Coor-
dinates (CIE 1931)
White x - 0.313 -
(4)
White y - 0.329 -
White Luminance
[cd/m
2
]
1100 1200 - (4)
Contrast Ratio 1800 2500 - (4)
50 %
90 %
90 %
50 %
10 %
10 %
