IDK-2110WP-K5XGA1 User Manual 8
2.3 Interface Timing
2.3.1 Timing Characteristics
Note:
1. HT * VT * Frame Frequency ≤ (76.6) MHz.
2. All reliabilities are specified for timing specification based on refresh rate of
60Hz.
2.3.2 Interface Timings

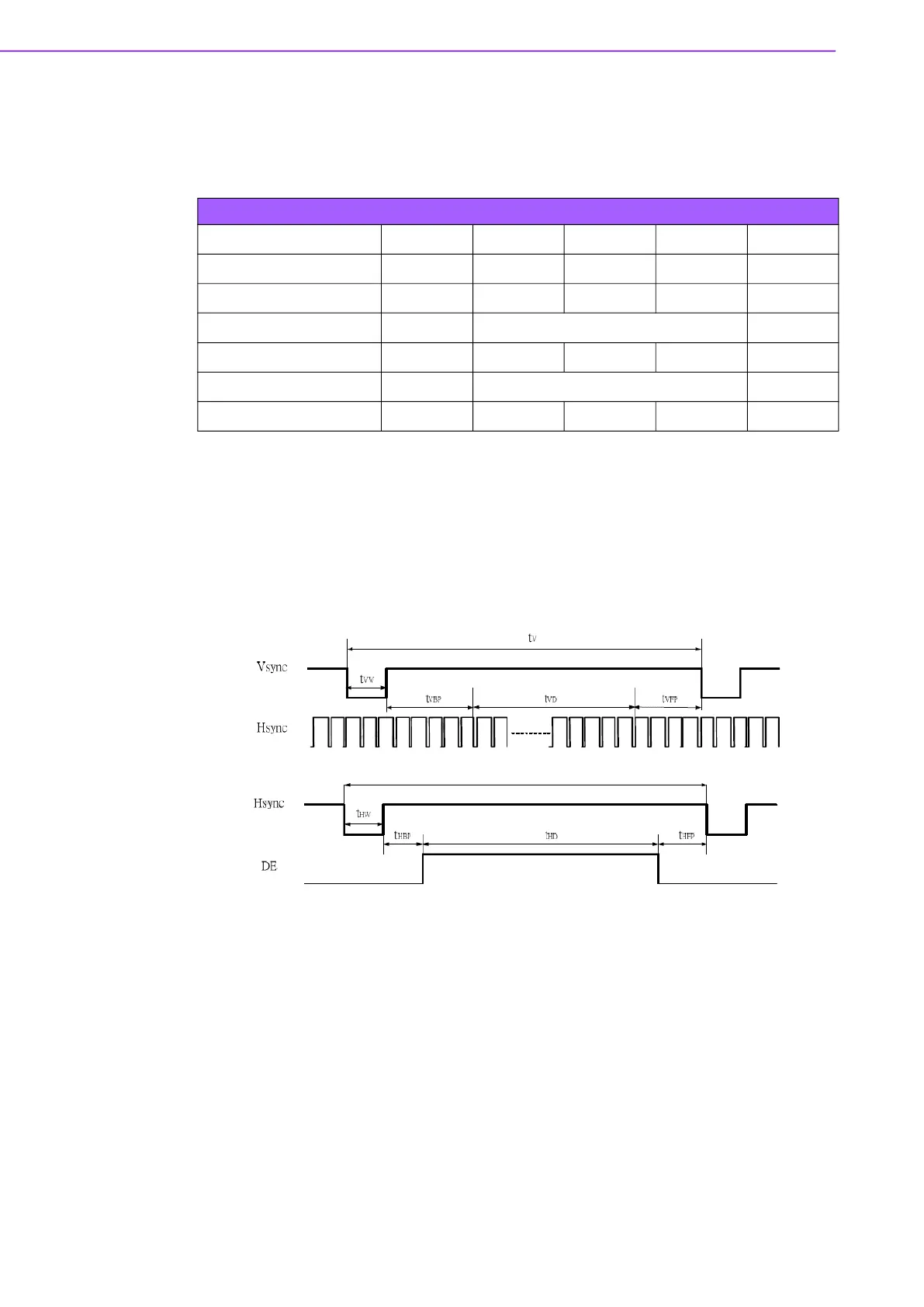

Timing Diagram of Interface Signal (DE mode)
Figure 2.1 Timing Characteristics
Table 2.3: Timing Characteristics
Parameter
Symbol Min. Typ. Max. Unit
LVDS Clock Frequency
Fclk (70.0) (72.4) (76.6) MHz
H Total Time
HT (1,410) (1,440) (1,470) Clocks
H Active Time
HA 1,280 Clocks
V Total Time
VT (828) (838) (868) Lines
V Active Time
VA 800 Lines
Frame Rate
FV - (60) - HZ
