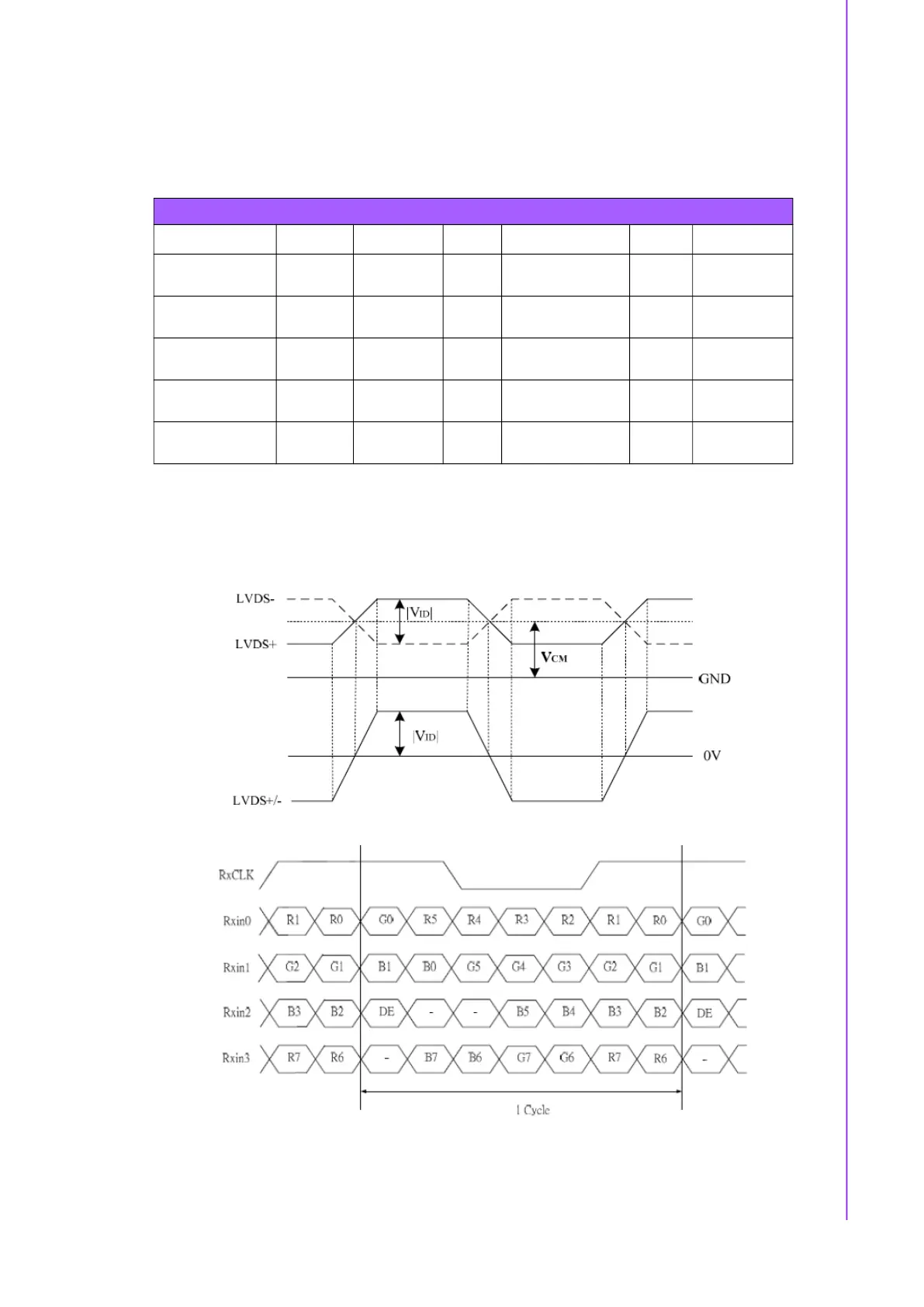

7 IDK-2110WP-K5XGA1 User Manual
Chapter 2 LCD Display
2.2 LVDS Receiver
2.2.1 Signal Electrical Characteristics for the LVDS Receiver
Note:
1. Input signals shall be low or Hi-Z state when VDD is off.
2. All electrical characteristics for the LVDS signal are defined and shall be mea-
sured at the interface connector of the LCD.
Table 2.2: LVDS Receiver Electrical Characteristics
Parameter Symbol Min. Typ. Max. Unit Conditions
Differential
input High
Vth - - +100 mV Vcm=+1.2V
Differential
Input Low
VtI -100 - - mV Vcm=+1.2V
Magnitude
Differential Input
|V
ID
|
200 - 400 mV -
Common
Mode Voltage
V
CM
0.3+(VID/2) - VDD-1.2-(VID/2) V -
Common
Mode Voltage
∆V
CM
- - 50 mV Vcm=+1.2V
