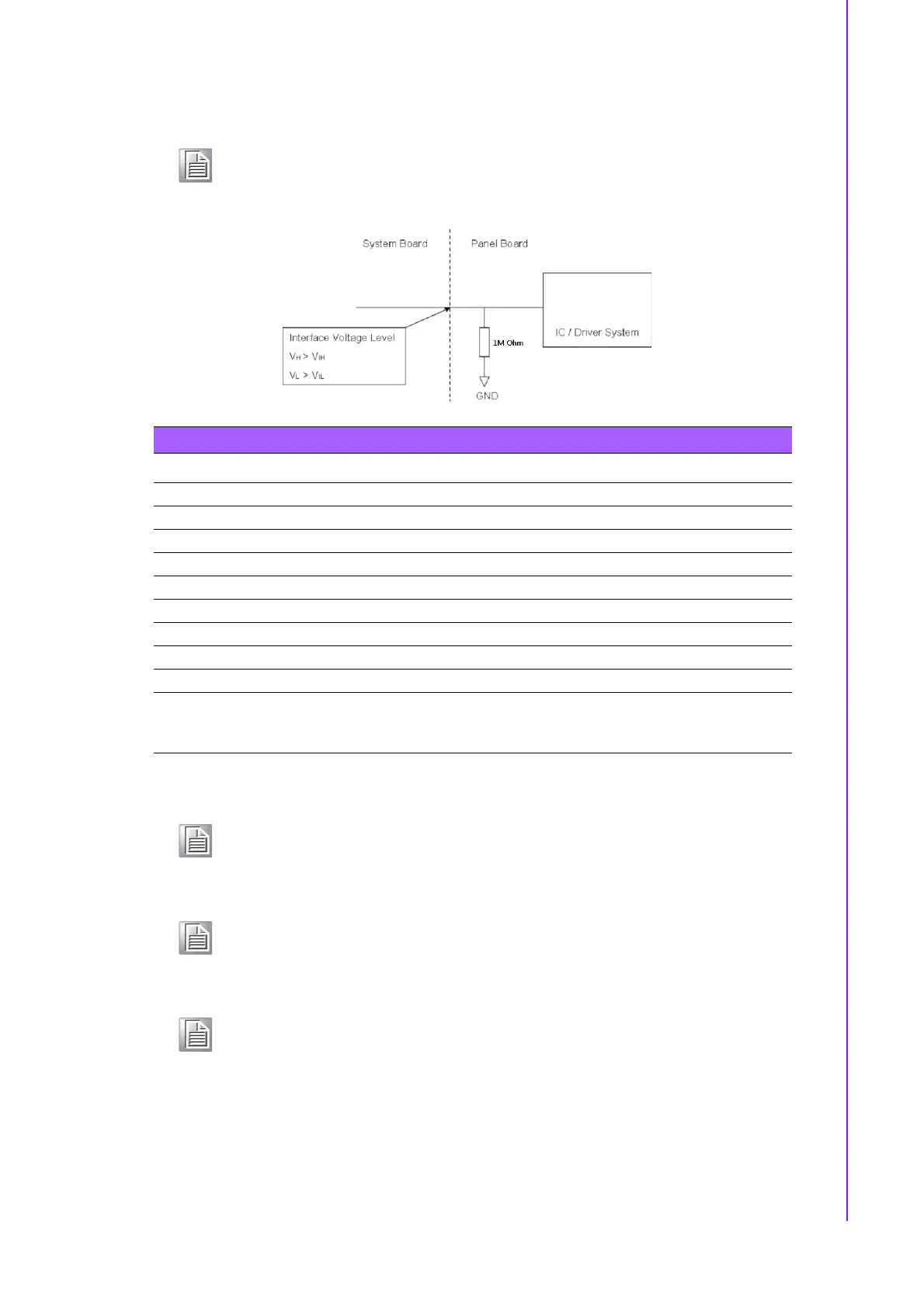

11 IDK-1112R-50XGA1 User Manual
Chapter 2 LCD Display
Note (4) SEL68, reLR, reUD.
Table 2.4: Backlight Pin Assignments
Pin Symbol Description Remark
1 Vi Converter Input Voltage 12V
2 Vi Converter Input Voltage 12V
3 Vi Converter Input Voltage 12V
4 Vi Converter Input Voltage 12V
5 VGND Converter Ground Ground
6 VGND Converter Ground Ground
7 VGND Converter Ground Ground
8 VGND Converter Ground Ground
9 EN Enable Pin 3.3 V, Note (3)
10 ADJ Backlight Adjust
PWM Dimming
(190-210Hz, Hi: 3.3VDC,
Lo: 0VDC) , Note (3)
Note (1) Connector Part No.: 91208-01001-H01 (ACES) or equivalent.
Note (2) User's connector Part No.: 91209-01011 (ACES) or equivalent .
Note (3) EN(BLON), ADJ(E_PWM) as shown below:
