IDK-1108R-50SVB1 User Manual 12

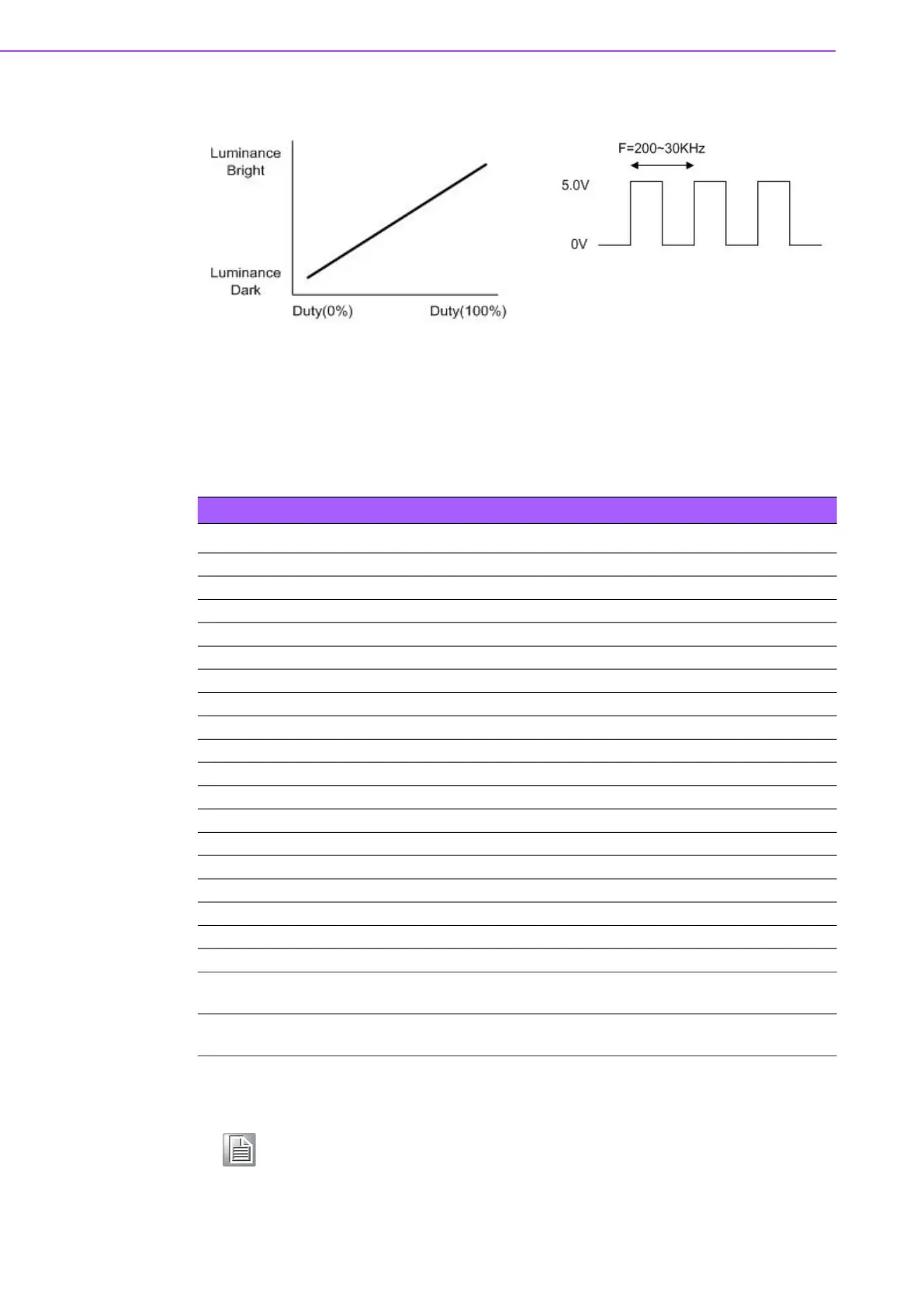

2.4.1 PWM Dimming Control
2.5 Interface
2.5.1 Interface Definitions
2.5.1.1 CN1: LVDS Connector
Table 2.6: CN1: LVDS Connector
Pin no Symbol Function
1 VCC POWER SUPPLY:3.3V
2 VCC POWER SUPPLY:3.3V
3 UD Vertical Reverse Scan Control.
4 LR Horizontal Reverse Scan Control.
5 RXIN1- Transmission Data of Pixels 1
6 RXIN1+ Transmission Data of Pixels 1
7 GND Power Ground
8 RXIN2- Transmission Data of Pixels 2
9 RXIN2+ Transmission Data of Pixels 2
10 GND Power Ground
11 RXIN3- Transmission Data of Pixels 3
12 RXIN3+ Transmission Data of Pixels 3
13 GND Power Ground
14 RXCKIN- Sampling Clock
15 RXCKIN+ Sampling Clock
16 GND Power Ground
17 NC No connection
18 NC No connection
19 NC
LVDS 6-bit mode: No connection (default)
LVDS 8-bit mode: (RXIN4-) Transmission Data of Pixels 4
20 NC
LVDS 6-bit mode: No connection (default)
LVDS 8-bit mode: (RXIN4+) Transmission Data of Pixels 4
Note! Connector Part No.: MPHTJ-12001AP20 (Kingfont)
