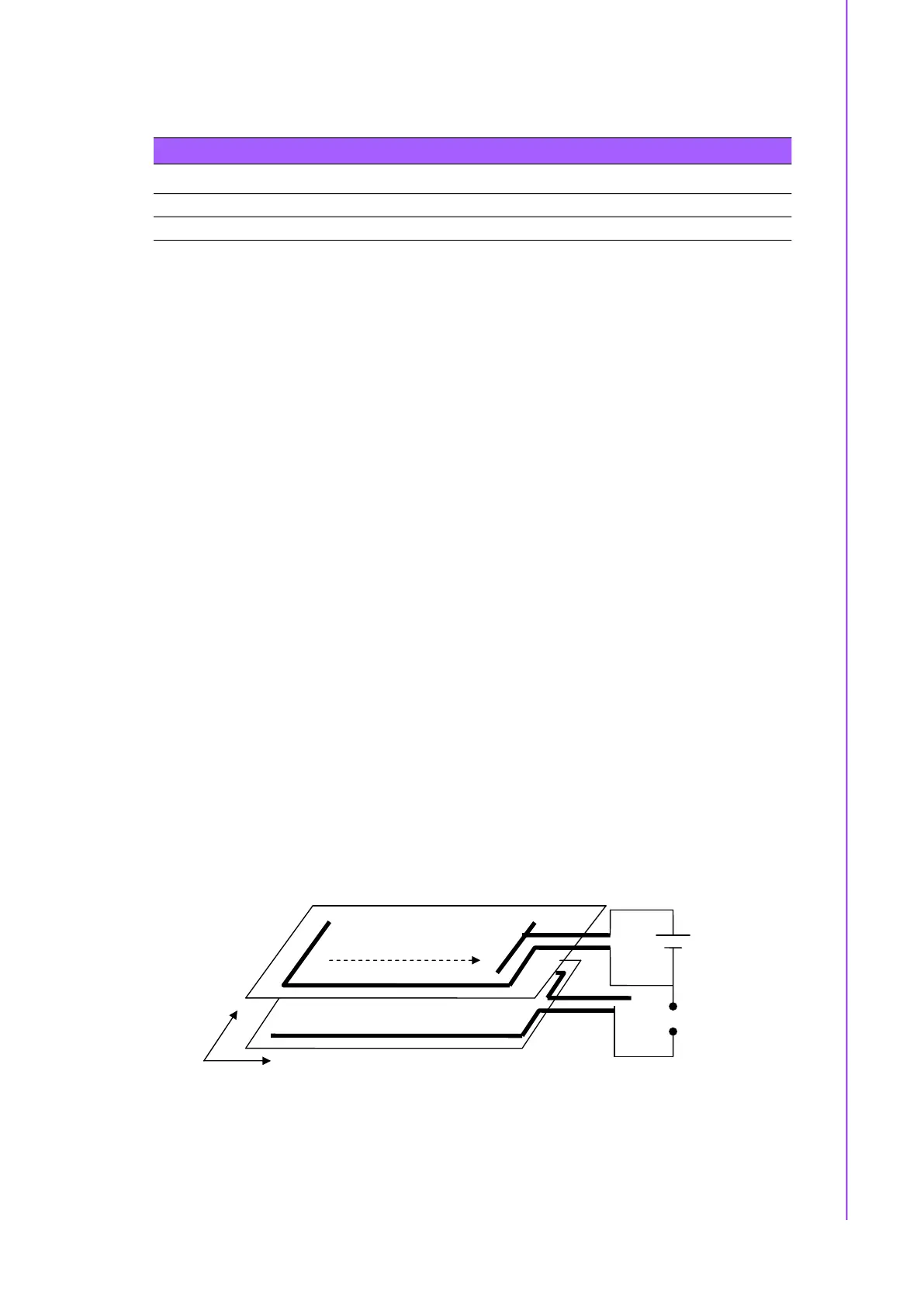

19 IDK-1106R-80VGA1 User Manual
Chapter 3 Touchscreen
3.1.1.3 Input Method and Activation Force
3.1.2 Typical Optical Characteristics
Visible Light Transmission: >80%
Haze: <13%
3.1.3 Electrical Specifications
Operating Voltage: 5.5V or less
Contact Current: 20mA (maximum)
Circuit Closed Resistance:
– X: 400~1000Ω
– Y: 200~650Ω
Circuit Open Resistance: > 10MΩ at 25V
DC
Contact Bounce: < 10ms
Linear Test: <1.5%
Capacitance: 100nF(maximum)
Electrostatic Discharge Protection: (per EN 61000-4-2)
The touchscreen withstands 15KV air discharge and 8KV contact discharge.
3.1.4 Linearity
Linear Test Specifications:
– Direction X: <1.5%
– Direction Y: <1.5%
Linearity Test
Apply voltage (DC5V) to upper (or lower) electrodes, output voltage Vx (see
Fig.3.1), or Vy (see Fig.3.2) on the other electrodes to measure at regular inter-
vals.
Linearity is the value of max. error voltage (see Fig. 3.3).
Figure 3.1
Table 3.2: Input Method and Activation Force
Input Method Average Activation Force
1.6mm dia. Delrin stylus 0.10~0.70N
16mm dia. silicon "finger" 0.10~0.80N
5V
Vx
X axis
Y axis
