IDK-1106R-80VGA1 User Manual 18
3.1 Touch Characteristics
This touch panel is a resistance type that customers use with flat displays like LCDs.
Once an operator touches it, the circuit sends coordinate points to the PC from the
voltage at contact points.
3.1.1 Mechanical Dimensions and Construction
3.1.1.1 General
The analog resistive touch screen is laminated by ITO PET to ITO glass.
3.1.1.2 Construction

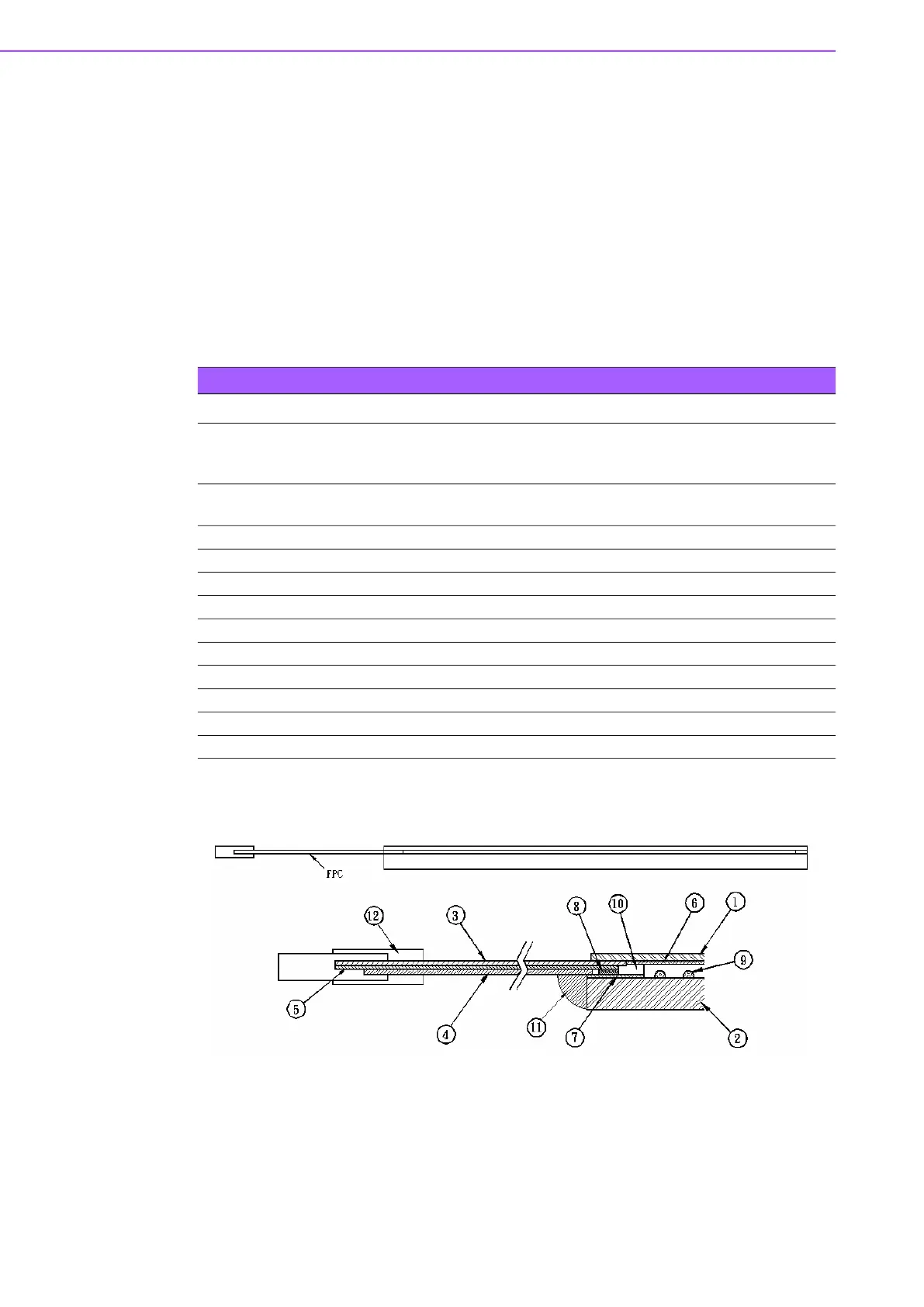

Touchscreen side view:
Table 3.1: Construction
Item Description Material Remarks
1 ITO PET (top layer) ITO PET Film
Antiglare coating
Surface hardness: 3H
Resistance:300~600Ω/□
2
ITO patterned glass
(bottom layer)
1.57mm ITO Glass Resistance:300~600Ω/□
3 Tail base Polyimide Separated Tail
4 Tail overlay Polyimide
5 Conductor AMP Compatible Pitch: 2.54 mm
6 Top layer circuit Silver ink
7 Bottom layer circuit Silver ink
8 Layer to layer contacted Silver glue
9 Dot spacer UV ink
10 Isolation layer Isolation adhesive
11 Glue UV glue
12 Thermofit tube Polyolefin
