IDK-1106R-80VGA1 User Manual 14
2.4.6 LED Backlight Unit Interface Signal Description
Note1: “NC stands for “No Connection””.
Note2: See Section 5.2.1 for a definition.

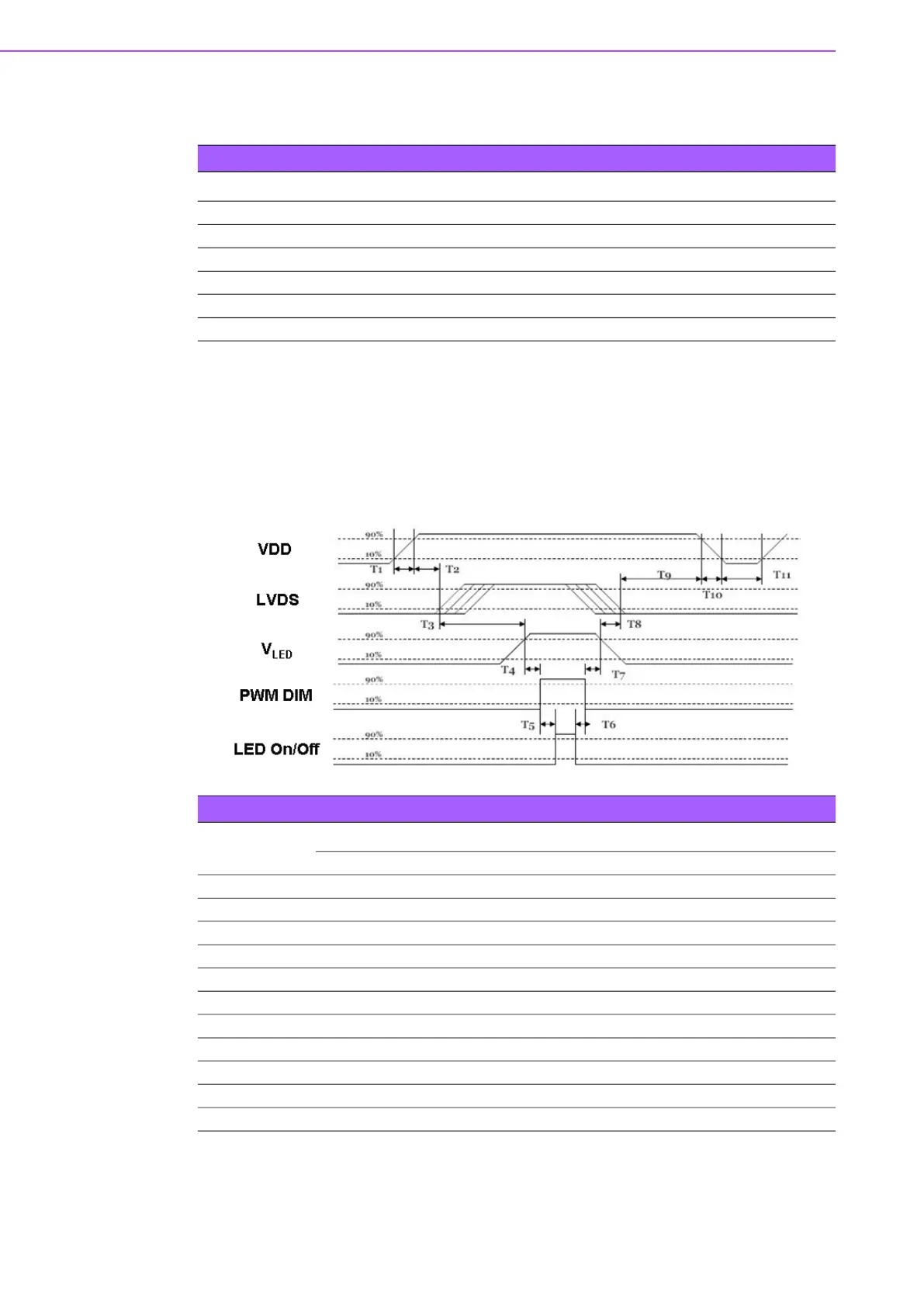

2.4.7 Power ON/OFF Sequence
VDD power, LCD interface signals, and backlight on/off sequence are shown in the
following chart. Signals from any system shall be in a Hi-Z state or low level when
VDD is off.
The ON/OFF sequence should be applied to avoid abnormal function of the display.
Please make sure to turn off the power when you plug the cable into the input con-
nector or pull the cable out of the connector.
Table 2.9: LED Backlight Unit Interface Signal Description
Pin # Symbol Pin Description
1 VLED 12V input
2 VLED 12V input
3 GND Ground
4 GND Ground
5 LED On/Off 3.3V-On; 0V/NC-Off
6 PWM DIM Dimming Signal (Note2)
Table 2.10: Power ON/OFF Sequence Timing
Parameter
Value Units
Min. Typ. Max.
T1 0.5 - 3 ms
T2 30 40 50 ms
T3 200 - - ms
T4 10 - - ms
T5 10 - - ms
T6 0 - - ms
T7 10 - - ms
T8 100 - - ms
T9 0 16 50 ms
T10 - - 10 ms
T11 1000 - - ms
