IDK-1106R-80VGA1 User Manual 12
2.4.4 TFT-LCD Interface Signal Description
The G065VN01 V2 TFT-LCD module includes an LVDS receiver. LVDS is a differen-
tial signal technology for high-speed data transfer with an LCD interface. The LVDS
Transmitter shall be THC63LVDM83A (THINE) or equivalent.
Note 1: “Low” stands for 0V. “High” stands for 3.3V. “NC” stands for “No Connection”.
Table 2.7: TFT- LCD Interface Signal Description
Pin No. Symbol Pin Description
1 VDD Power supply, 3.3V (typical)
2 VDD Power supply, 3.3V (typical)
3 GND Ground
4 SEL68
Selection for either 6-bit or 8-bit LVDS input:
SEL68 =“Low” or “NC”, accepts 6-bit LVDS data input;
SEL68 = “High”, accepts 8-bit LVDS data input
5 RxIN1- Negative LVDS differential input (R0-R5, G0)
6 RxIN1+ Positive LVDS differential input (R0-R5, G0)
7 GND Ground
8 RxIN2- Negative LVDS differential input (G1-G5, B0-B1)
9 RxIN2+ Positive LVDS differential input (G1-G5, B0-B1)
10 GND Ground
11 RxIN3- Negative LVDS differential input (B2-B5, DE)
12 RxIN3+ Positive LVDS differential input (B2-B5, DE)
13 GND Ground
14 RxCLKIN- Negative LVDS differential clock input
15 RxCLKIN+ Positive LVDS differential clock input
16 NC No connection
17 U/D Vertical Reverse (“L” or NC: Normal, “H”: Reverse)
18 R/L Horizontal Reverse (“L” or NC: Normal, “H”: Reverse)
19 RxIN4-
Negative LVDS differential input (R6-R7, G6-G7, B6-B7)
VDD for 6-bit LVDS input
Note2
20 RxIN4+
Positive LVDS differential input (R6-R7, G6-G7, B6-B7)
GND for 6-bit LVDS input
Note2

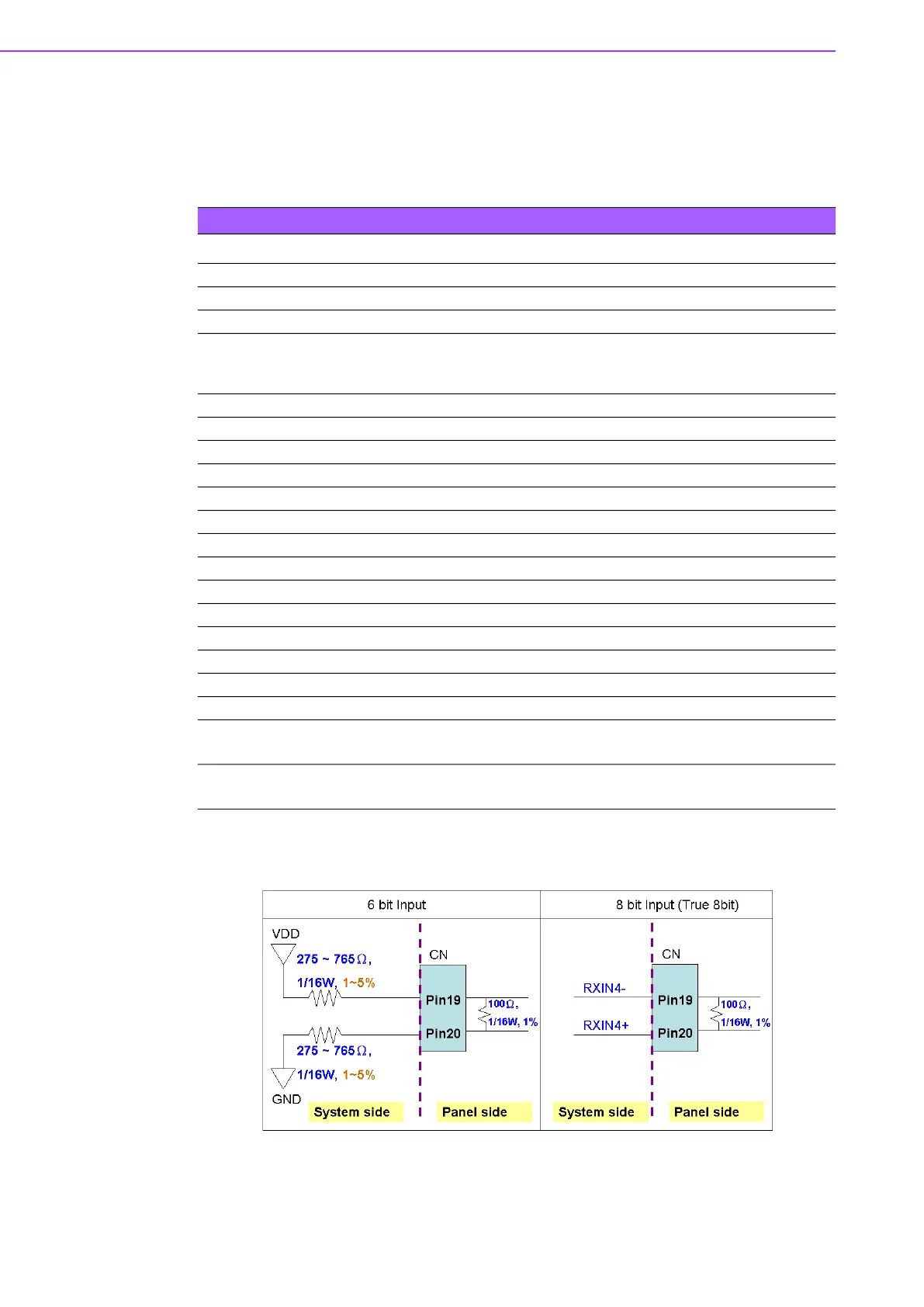

Note 2:
