9 IDK-1106R-80VGA1 User Manual
Chapter 2 LCD Display
2.3.2 Backlight Unit Drivers
2.3.2.1 Parameter Guidelines for LED Drivers
The following characteristics are measured under stable conditions at 25°C (Room
Temperature).
Note 1: If the G065VN01 V2 module is driven at a high ambient temperature & high
humidity condition, operating life will be reduced.
Note 2: The end of operating life means the brightness has dimmed down to 50% of
its initial brightness. Typical operating lifetime is estimated through data.
Note 3: The test condition is 49mA and 25°C (room temperature).
2.4 Signal Characteristics
2.4.1 Pixel Format Image

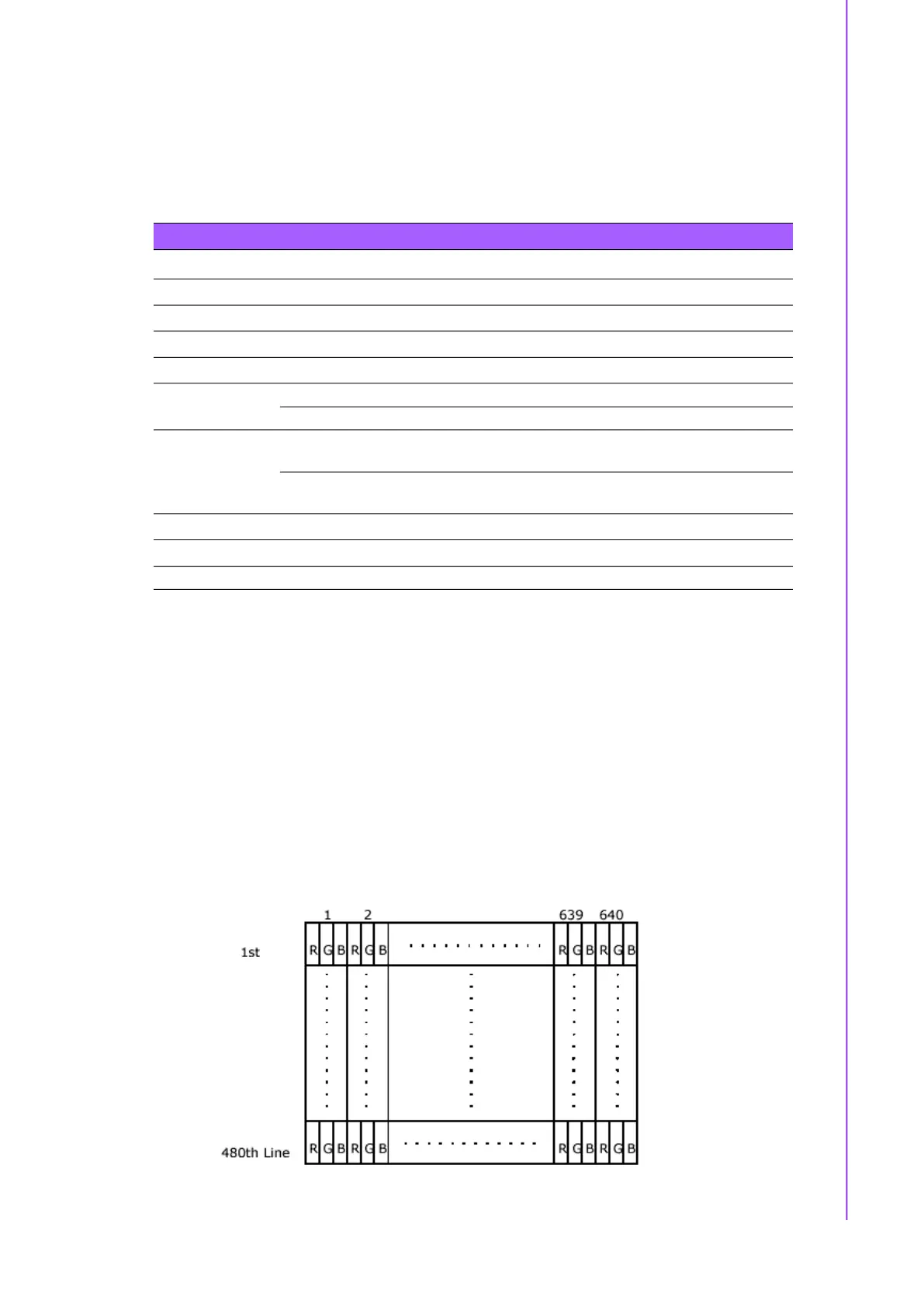

The following figure shows the relationship between input signal and LCD pixel for-
mat.
Table 2.5: Parameter Guidelines for LED Drivers
Symbol Parameter Min Typ Max Units Remark
V
LED
Input Voltage 9 12 13 Volt
I
LED
Input Current - 0.167 A 100% PWM duty
P
LED
Power Consumption - 2 W 100% PWM duty
Irush
LED
Inrush Current - 0.22 0.47 A 100% PWM duty
V
LED
On/Off
On Control Voltage 3.0 3.3 5.0 Volt
Off Control Voltage 0 0.15 Volt
V
PWM
Dimming Control
Voltage High
3.0 3.3 5.0 Volt
Dimming Control
Voltage Low
0 0.1 Volt
F
PWM
Dimming Frequency 200 20K Hz
D
PWM
Dimming Duty Cycle 1 100 %
Operating Life 70000 Hrs Note 1, 2, 3
