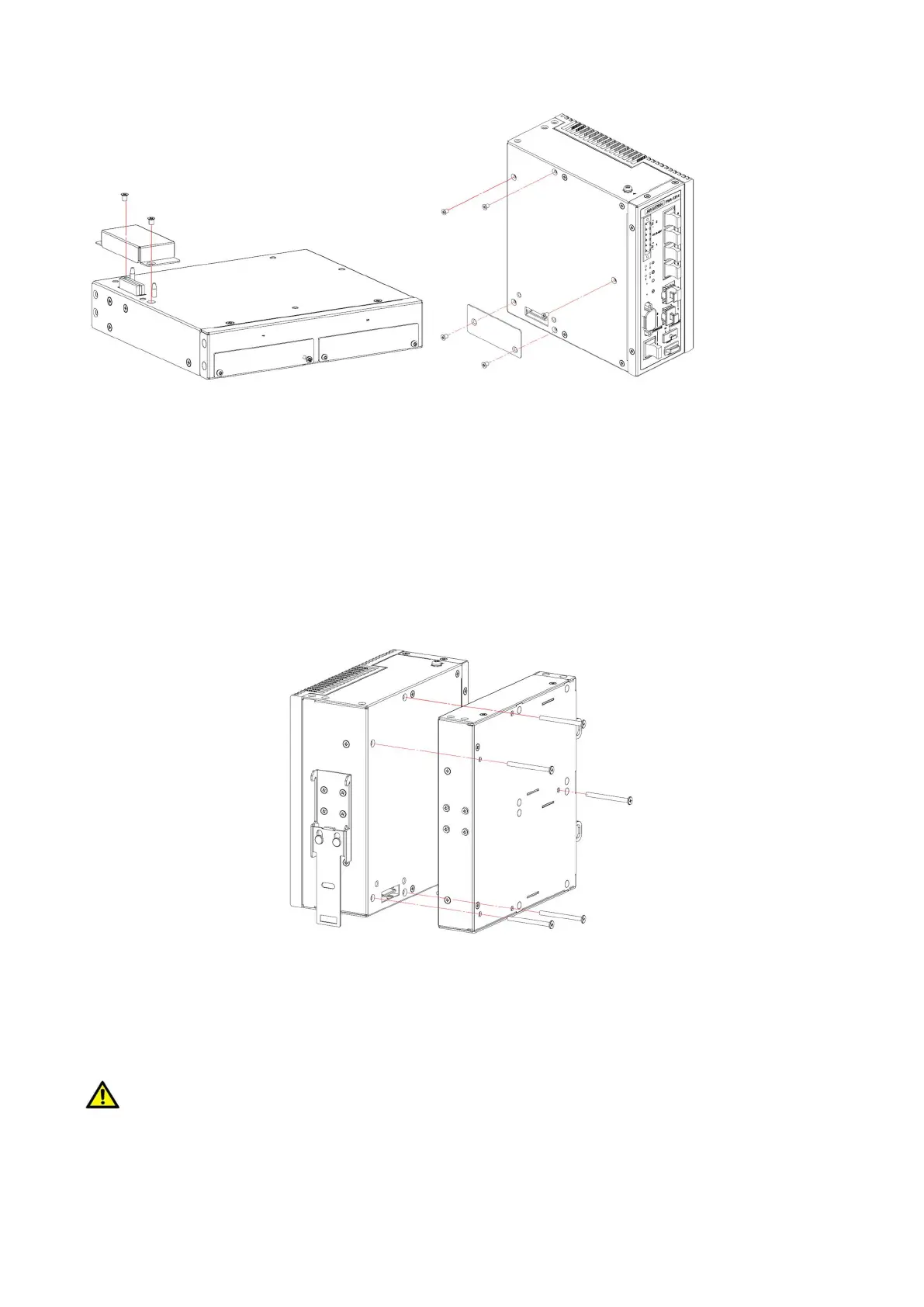

Figure 2.4-12 FWA-1214 and NMC-R0DK Installation
Correctly align the FWA-1214 connector with the NMC-R0DK connector as follows. Take out the five long
screws included in the NMC-R0DK accessory box, and insert the five long screws from the NMC-R0DK end
along the screw holes into the corresponding screw holes of FWA-1214. Use a screwdriver to tighten FWA-
1214 and NMC-R0DK with appropriate torque. After combining FWA-1214 and NMC-R0DK, only one set of
DIN rail holder is needed to stably fix it on the DIN rail. If you need another set of DIN rail holder to provide
stronger fixing force, please contact your distributor, sales representative, or Advantech's customer service
center for details. Long screw specification is M3x10(36L) F/S D=6 H=1 2+ ST/H BZN HT .
Figure 2.4-13 FWA-1214 and NMC-R0DK Installation
2.4.6 Powering On
Caution!
The following power supply installations must be installed by a skilled person. Before
connecting the FWA-1214 to the power source, ensure that the power rating of the
power source matched that of the FWA-1214’s power input rating. Also, verify the
