G. If the connection is successful, after powering on the unit, you should be able to view the BIOS
Power-On-Self-Test (POST) screen in the PuTTY terminal as below:

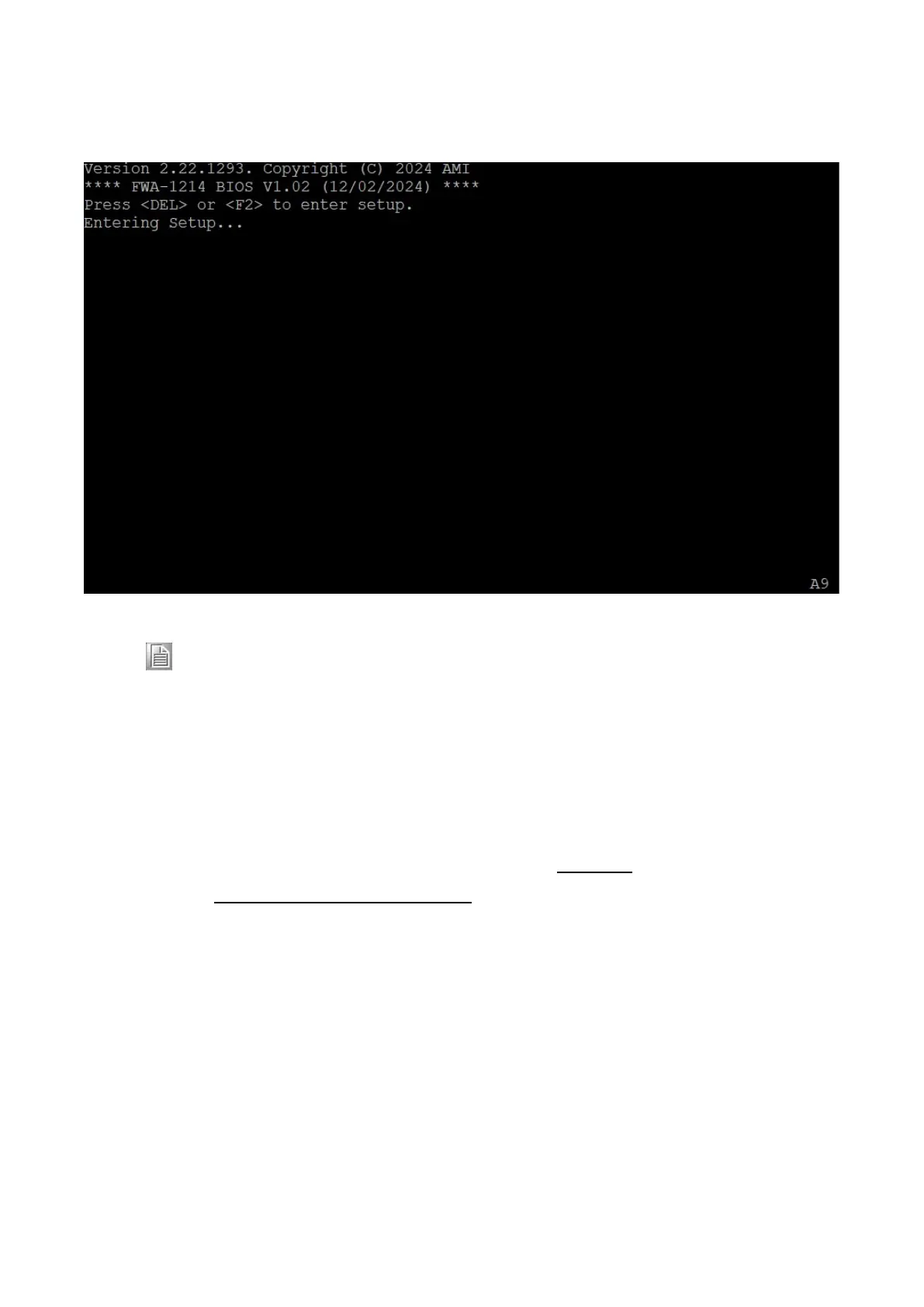

Figure 2.4-9 BIOS POST Screen
Note:
Please be aware that during the initial startup phase, the BIOS may be performing
tasks even if the console appears inactive. It might take a moment for the BIOS POST
screen to show up. However, the BIOS has been optimized for a swift boot time. It will
progress through the POST rapidly and then attempt to boot an OS based on the boot
options selected in the BIOS.
In case you would extend the time, the BIOS displays the POST screen and waits for a key press to enter the
setup menu, you can do so via the BIOS setup menu. Please refer to Section 4.2 for details.
H. Please refer “Related Manuals & Quick Start Image” to setup system and install OS on FWA-1214
2.4.3 FWA-1214 DIN rail holder Installation
DIN rail holder installation instruction: Align the holes on the DIN rail holder with the holes on the back of
FWA-1214. Insert screws through the holes in the DIN rail holder and into the corresponding holes on
appliance. Use a screwdriver or power drill with the appropriate bit to tighten the screws. Be careful not to
overtighten, as this can damage the appliance.
Please note if you do not need to use the DIN rail holder, please also install the 4 screws included in the
accessory box to cover these 4 screw holes. The SCREW SPECIFICATION IS M3*4.0L S/S D=4.8 H=0.8 (2+) ST/H
BZN.
