Figure 2.4-1 Location of the HDMI and USB port
2.4.2 Installation via Serial Console
Note: The serial console port is specifically designed for the installation of TEXT MODE OS only.
It's essential for the OS installation engineer to have expertise in text-based OS installation and to be familiar
with serial console client operations.
An RS232-to-RJ45 console cable is provided in the box. If you've misplaced it or need additional cables, make
sure to use the appropriate serial console cable to connect the engineer’s PC to the FWA-1214's RJ45 serial
port (Figure 2.4-2).
For more information on the cable's pin configuration, please refer to Section 5.2 , ensuring you use a well-
shielded cable, or contact Advantech representative.
If your PC lacks an RS232 port, consider acquiring a USB-to-RS232 cable (Figure 2.4-3). Do note that for the
two RS232 ends of the cables, one should be male and the other female.
In this configuration, both BIOS and OS outputs are directed through via a serial terminal connection. Note
that only TEXT MODE OS can be installed when using the serial console port.

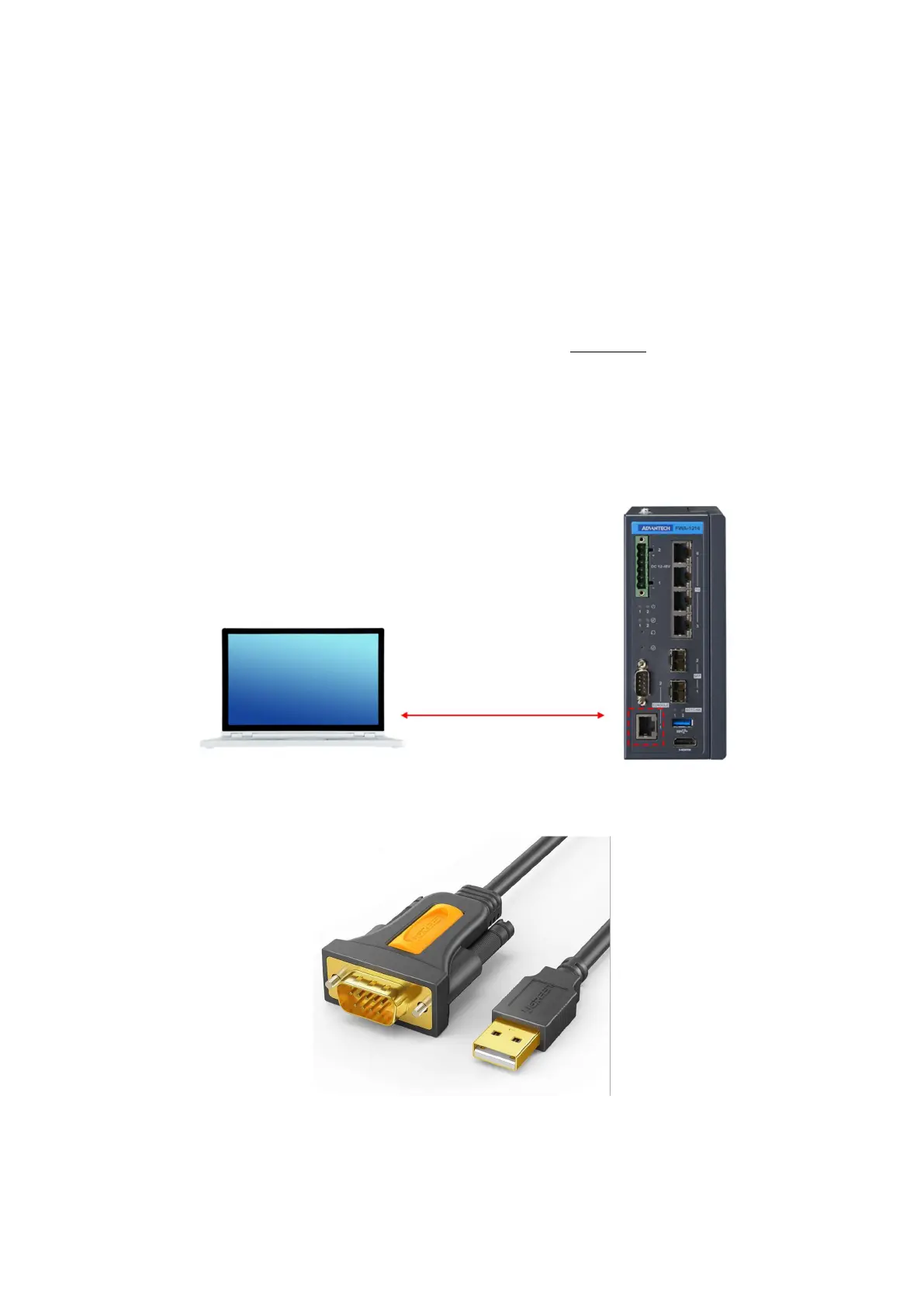

Figure 2.4-2 Access the server through serial console port
Figure 2.4-3 The diagram for the USB to 232 cable
There are several methods to connect to the serial console port.
