2 MIC-7_Flex_IO Startup Manual

P/N

NVMe

M.2

Eternet

Chip

Interface

Speed

Ethernet

Port

98910770320 - i210-AT 1 GbE 2

98910770330 1 i210-AT 1 GbE 4

98910770340 - i226-V 2.5 GbE 2

98910770350 1 i226-V 2.5 GbE 4

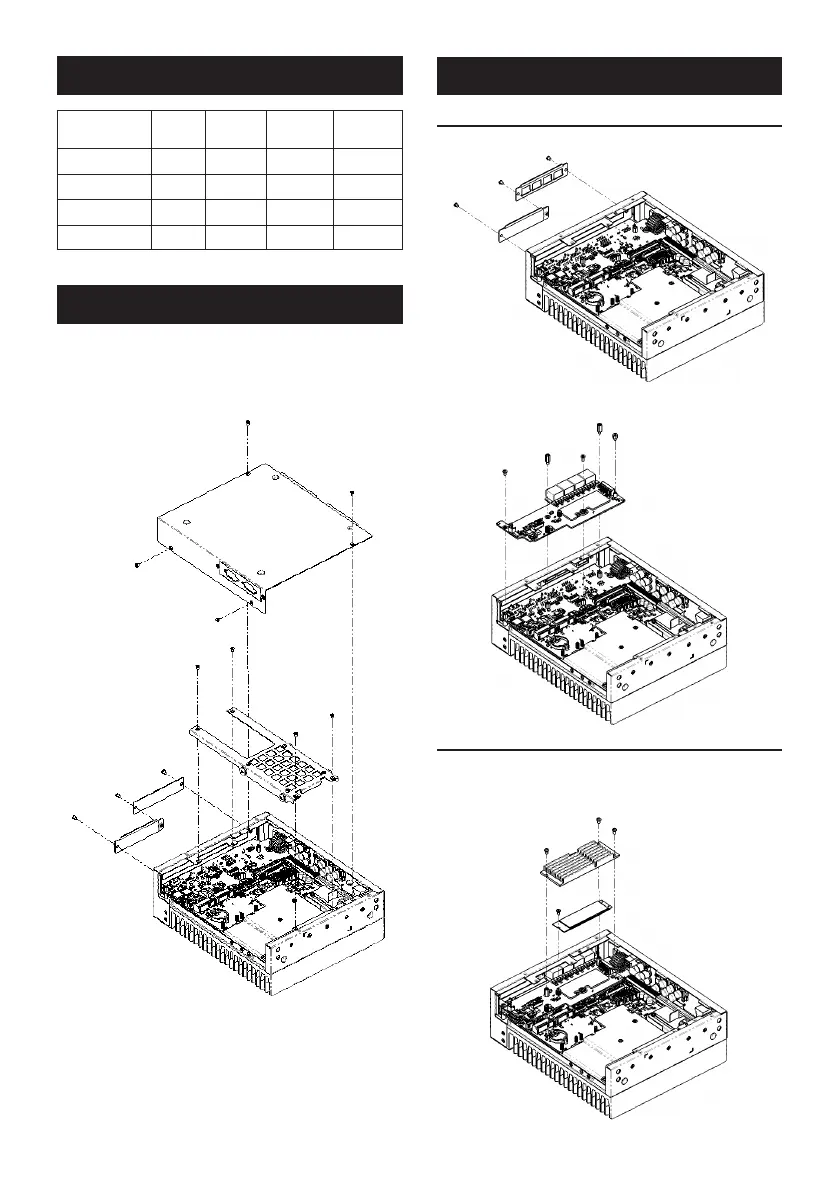

1. Remove the 4 screws and remove the bottom cover.

2. Remove the 4 screws and remove the storage device

bracket.

3. Remove the 2 screws and the front cover.

Selection Table

Simple Maintenance Process

Simple Maintenance Process (Cont.)

Flex IO Installation

1. Install the front cover and tighten the screws.

2. Install the front cover and tighten the screws.

NVMe Installation

1. Install NVMe and tighten 1 screw.

2. Install the NVMe HS and tighten the three screws.

3. Replace the bottom cover and secure it with the screws.
