ADAM-3600 Series User Manual 28
4.2.2.3 Ethernet I/O Device Configuration
ADAM-3600 is equipped two Ethernet ports; user can edit, delete and add devices through
iRTU Studio.
1. Double click or right click the “TCP” item under the “Data Center” in the left side
tree view and choose “edit” as shown in the following figure to edit the port.

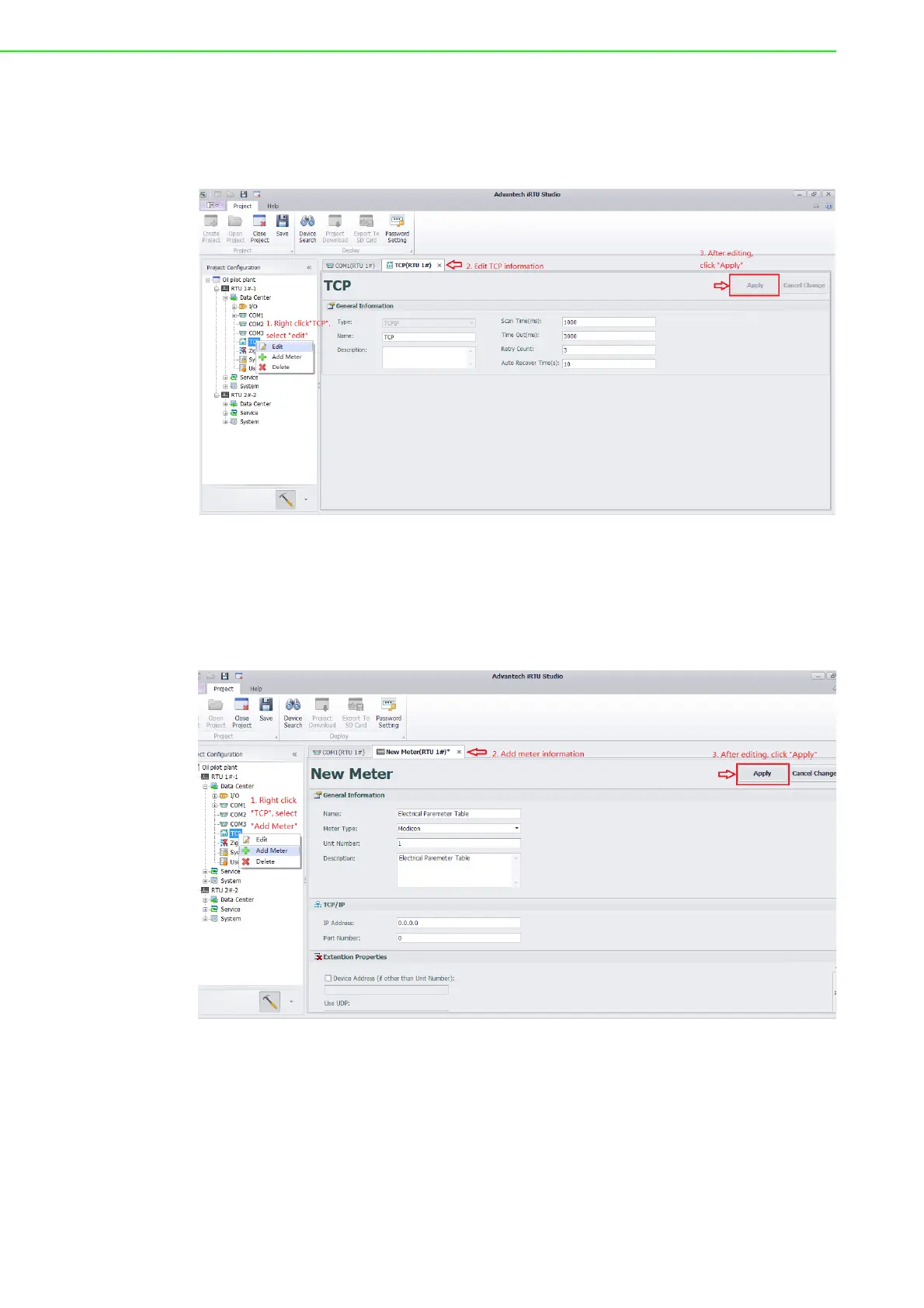

Figure 4.10 Editing TCP Information
2. Right click “TCP” item, choose “Delete”, the port will be deleted after your confir-
mation.
3. Right click “TCP” item, choose “Add Meter” to add a meter.
4. In the “New Meter” page, type in the name and related parameters, and click
“Apply” to add meter. While the meter added, there is a new item “I/O Tag”
below the meter, click the “+” in front of the port and meter to unfold it.
Figure 4.11 Adding and Deleting a TCP Meter
