27 ADAM-3600 Series User Manual
Chapter 4 Advantech iRTU Studio
4.2.2.2 Serial I/O Device Configuration
The ADAM-3600 has three serial ports including 1x RS232/RS485, 2 x RS485. iRTU Studio
can edit, delete and add device on these three ports.
1. Right click the “Data Center” on the left-side tree view, and select “Add Port”
2. In the “Type” field of “New Port” page, select "Serial", and input the related
parameters for the serial port.
3. Click button “Apply”, the port will be created on the left-hand side tree view
under the “Data Center” item

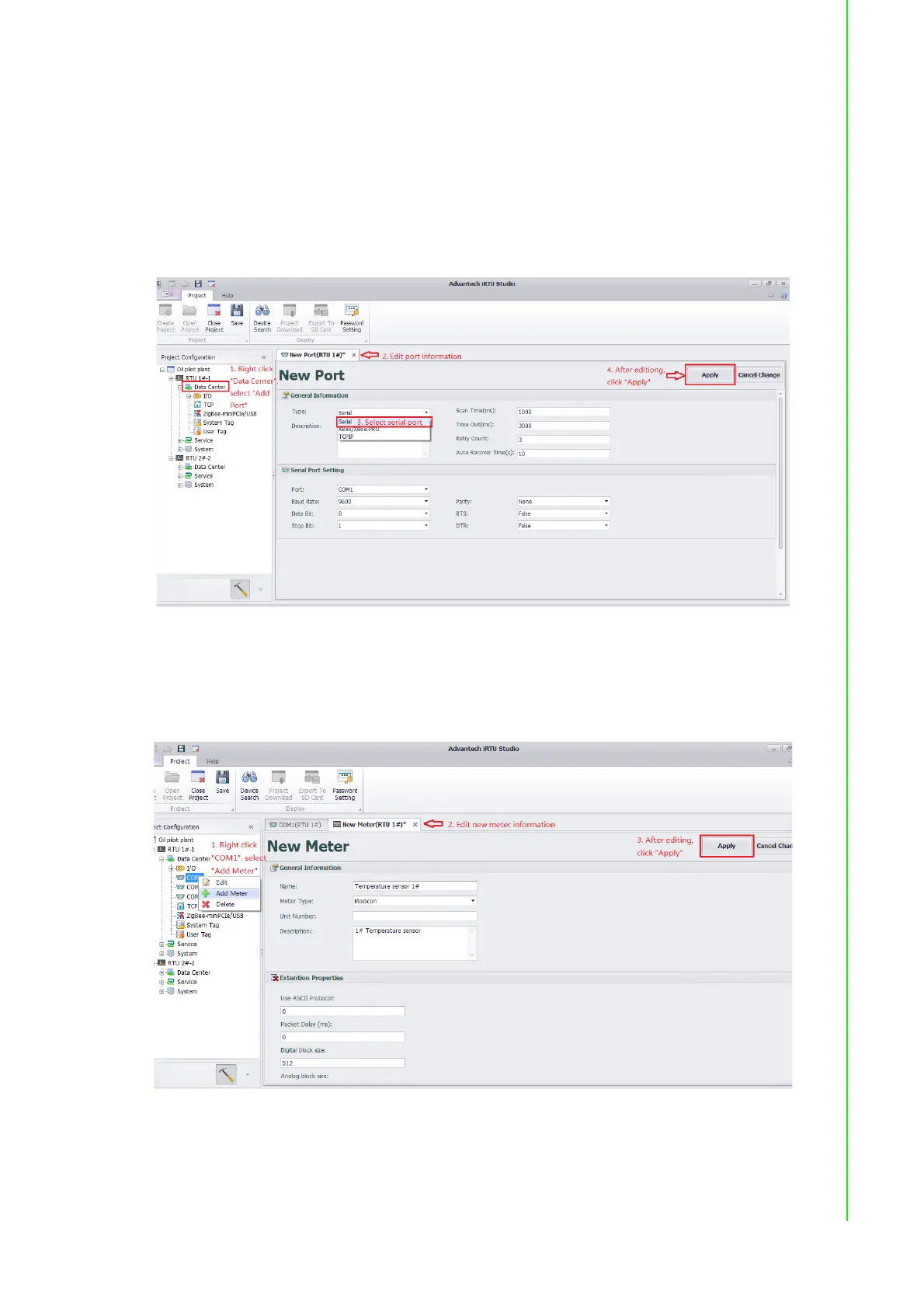

Figure 4.8 Adding COM port
4. Right click the “COMx” item created on the previous step and select “Add Meter”
to add meter.
5. In the “New Meter” page, type in the name and related parameters, and click
“Apply” to add meter. While the meter added, there is a new item “I/O Tag”
below the meter, click the “+” in front of the COM port and meter to unfold it.
Figure 4.9 Adding a COM meter
6. Double click the “IO Tag” item to edit the tag to map with the data from serial
meter.
7. To delete a COM port or a meter, right click to the select the target item and
select “Delete”.
