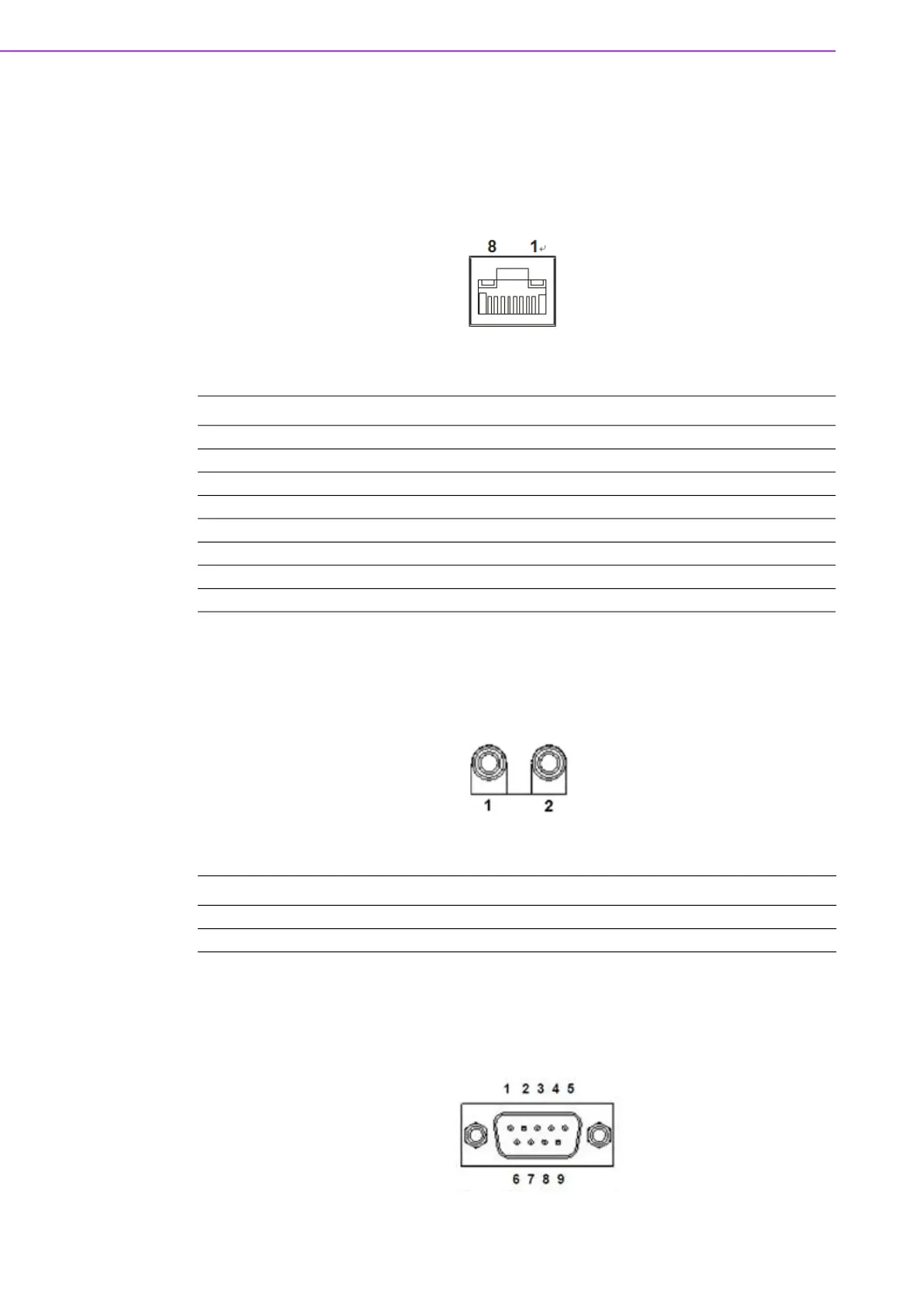

ARK-2250 User Manual 14
2.3.1.7 Ethernet Connector (LAN)
ARK-2250 is equipped with two Ethernet controllers that are fully compliant with IEEE
802.3u 10/100/1000 Mbps CSMA/CD standards. LAN1, LAN2 are all equipped with
an Intel i219/i210 Ethernet controller. The Ethernet port provides a standard RJ-45
jack connector with LED indicators on the front side to show its Active/Link status
(Green LED) and Speed status (Yellow LED).
Figure 2.9 Ethernet Connector (LAN)
2.3.1.8 Audio Connector
ARK-2250 offers stereo audio ports via 2 x phone jack connectors — Line_Out,
Mic_In. The audio chip is controlled by ALC888S, and it’s compliant with Azalea stan-
dards.
Figure 2.10 Audio Connector
2.3.1.9 COM Connector
ARK-2250 provides four D-sub 9-pin connectors, which offers RS232/422/485 serial
communication interface ports. The default setting is RS-232, if you want to use RS-
422/485, you can find the BIOS manual and change settings.
Pin 10/100/1000 BaseT Signal Name
1 TX+
2 TX-
3 RX+
4 MDI2+
5 MDI2-
6 RX-
7 MDI3+
8 MDI3-
Pin Audio Signal Name
1 Line out
2 Mic in
