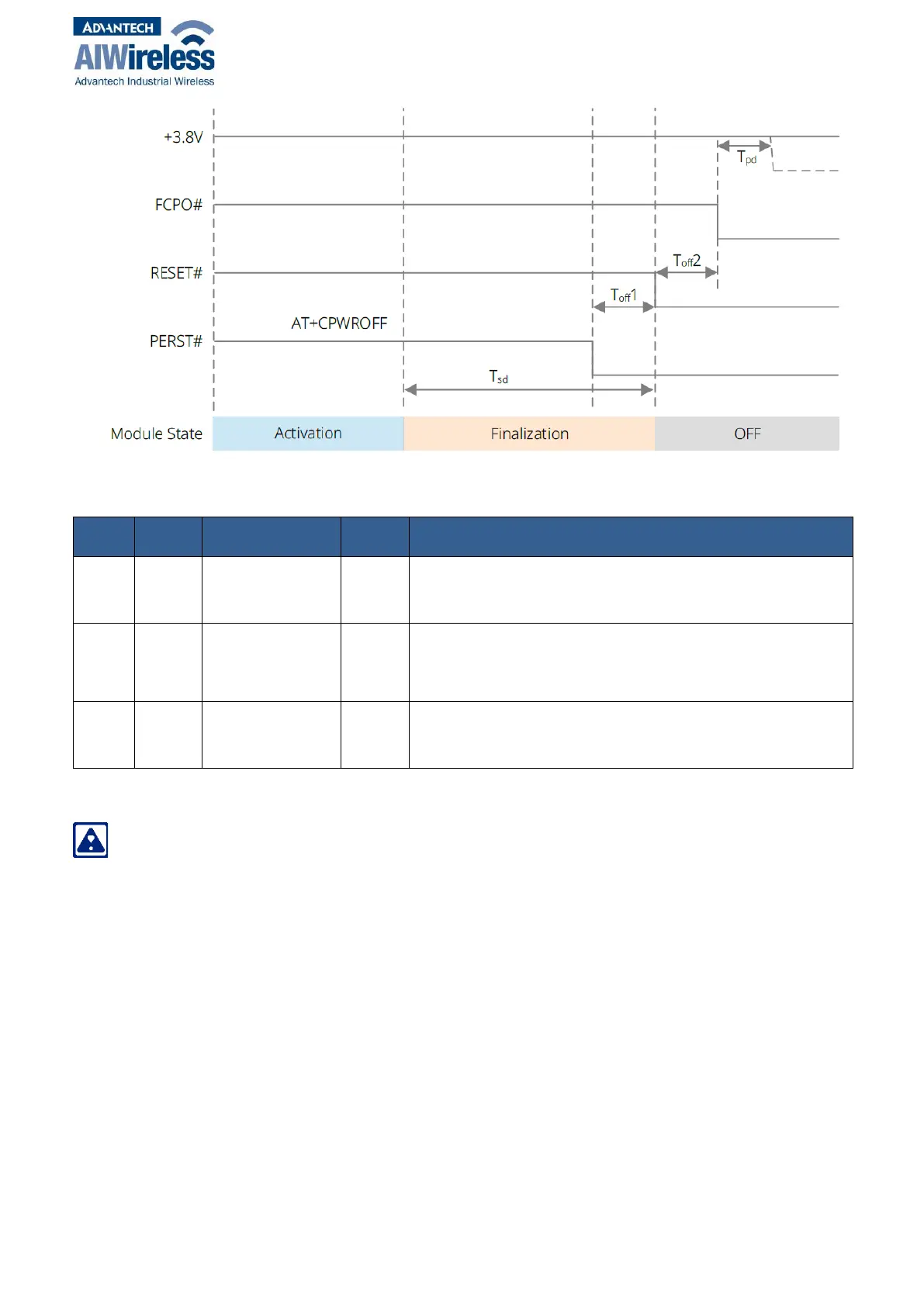

Figure 3-6 Recommended power-off timing
Index
Min.
Recommended
Max.
Comment
t
off1
16ms
20ms
-
Pull-down delay time of RESET# signal relative to
PERST# signal
t
on1
0ms
-
-
Pull-down delay time of FCPO# signal relative to
RESET#
signal
t
pd
10ms
100ms
-
+3.8V power supply off delay time. If power supply is
always on +3.8V, it can be ignored
Table 3-10 Power-off timing
Note:
1. When only USB is used as the data transmission interface, keep PERST # floating, and ignore
the control timing in the figure above.
