21 AIR-120 User Manual
Chapter 2 Hardware Installation
2.4.12 CANBUS Port and Pin Definition (Optional)
AIR-120 offers two CANBUS port and pin definition as below.

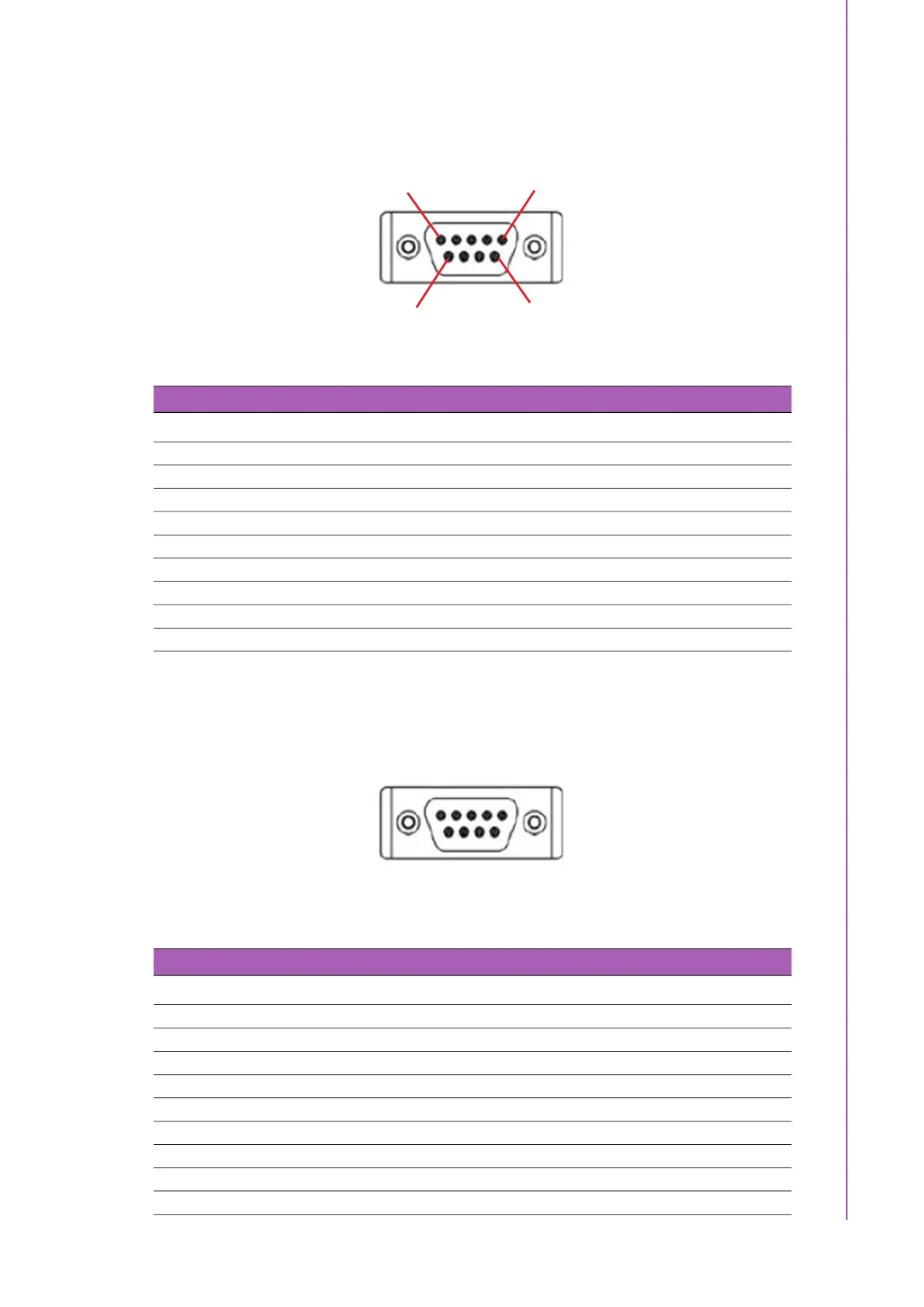

Figure 2.15 CANBUS Port
2.4.13 DIO Connector (optional)
AIR-120 offers 9-bit DI/O and pin definition as below.
Figure 2.16 DIO Connector
Table 2.10: CANBUS Port and Pin Definition
Pin Signal Name
1 NC
2 CAN_D-
3 GND
4 NC
5 NC
6 NC
7 CAN_D+
8 NC
9 NC
1 5
6 9
Table 2.11: DIO Connector and Pin Definition
Pin Signal Name
1 DIO bit 0
2 DIO bit 1
3 DIO bit 2
4 DIO bit 3
5 DIO bit 4
6 DIO bit 5
7 DIO bit 6
8 DIO bit 7
9 GND
5 1
9 6
