AIR-120 User Manual 16
2.4.4 USB 3.2 Gen1 Connector
AIR-120 supports two USB 3.2 interfaces, which support Plug-and-Play functionality
and hot swapping for up to 127 external devices. The USB interfaces comply with
USB UHCI, Rev. 3.2. USB 3.2 connectors contain legacy pins to interface to USB 2.0
devices and a new set of pins for USB 3.2 connectivity.

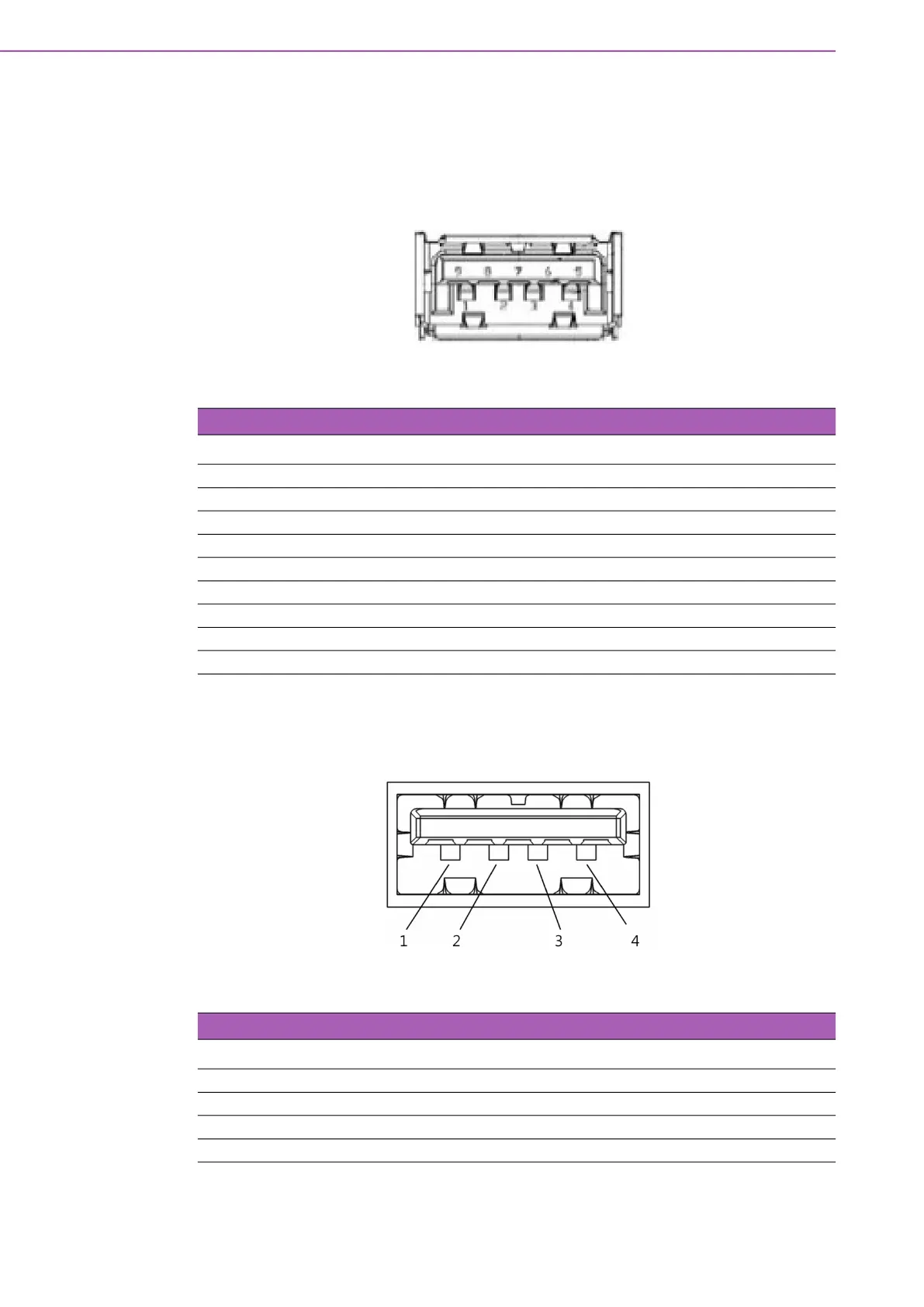

Figure 2.7 USB 3.2 Connector
2.4.5 USB 2.0 Connector
AIR-120 supports two USB 2.0 interfaces, which support Plug-and-Play functionality.
Figure 2.8 USB 2.0 Connector
Table 2.4: USB Connector Pin Definition
Pin Signal Name
1 +5V
2 D-_0
3 D+_0
4 GND
5 USB0_SSRX-
6 USB0_SSRX+
7 GND
8 USB0_SSTX-
9 USB0_SSTX+
Table 2.5: USB 2.0 Pin Definition
Pin Signal Name
1 VCC
2 USB_data
3 USB_data+
4 GND
