15 AIR-120 User Manual
Chapter 2 Hardware Installation
2.4.3 Ethernet Connector (LAN1/LAN2)
AIR-120 is equipped with one Intel® I226 Ethernet and one Intel® I210 controllers
that are fully compliant with IEEE 802.3u and 802.3bz 10/100/1000/2500 Mbps
CSMA/CD standards and connected to LAN1/LAN2. The Ethernet port provides a
standard RJ45 jack connector with LED indicators on the front side to show its Active/
Link status (Green LED) and Speed status (Orange/Yellow LED).

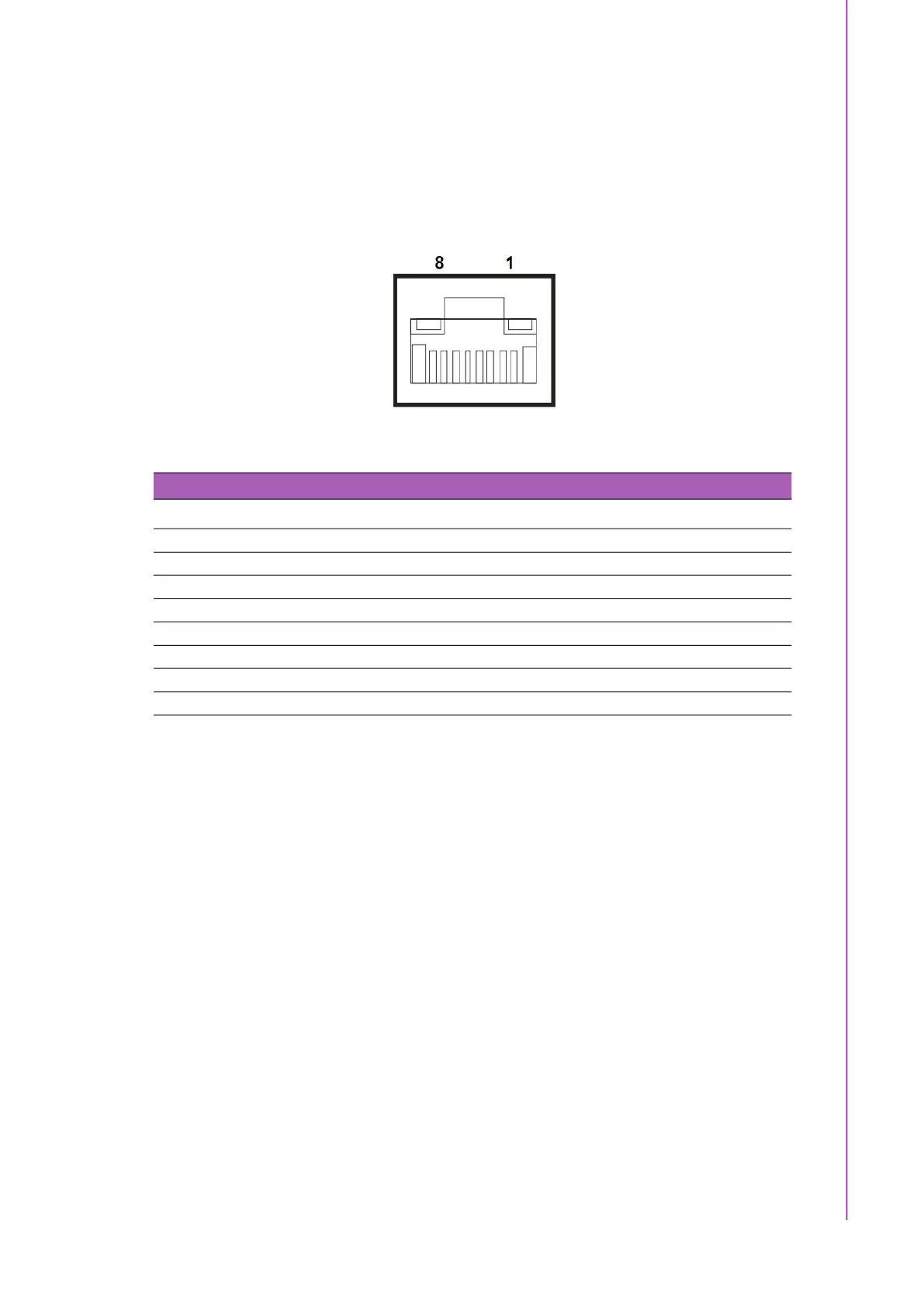

Figure 2.6 Ethernet Connector
Table 2.3: Ethernet Connector Pin Assignments
Pin 100/1000/2500 BaseT Signal Name
1 TX+
2 TX-
3 RX+
4 MDI2+
5 MDI2-
6 RX-
7 MDI3+
8 MDI3-
