13 AIR-101 User Manual
Chapter 2 Hardware Installation
2.4.4 USB 3.0 Connector
AIR-101 supports four USB 3.0 interfaces, which support Plug-and-Play functionality
and hot swapping for up to 127 external devices. The USB interfaces comply with
USB UHCI, Rev. 3.0.
USB 3.0 connectors contain legacy pins to interface to USB 2.0 devices and a new
set of pins for USB 3.0 connectivity.

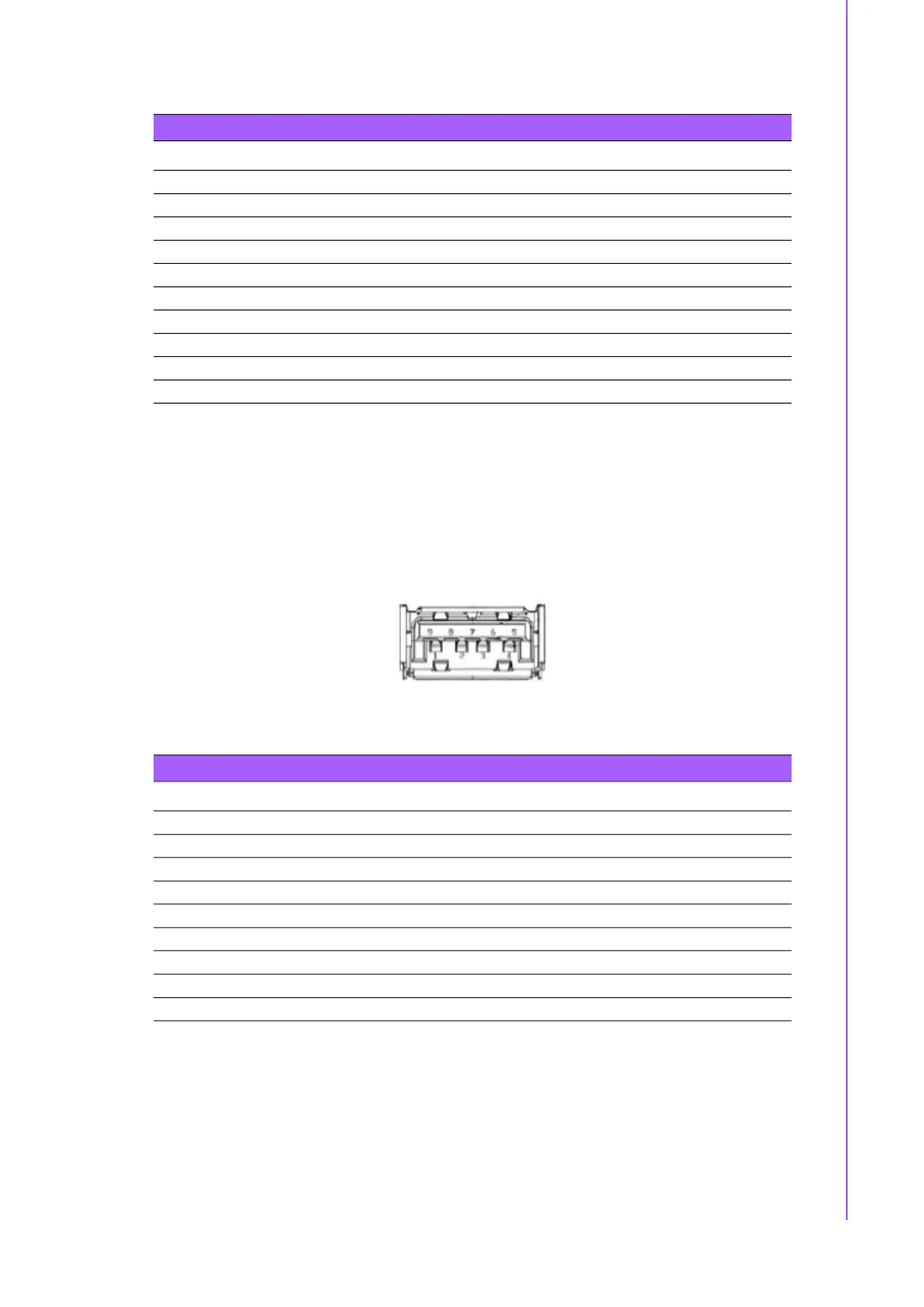

Figure 2.3 USB Connector
Table 2.4: Ethernet Connector (LAN) Pin Definition
Pin 10/100/1000 Mbps Signal Name
1 BI_DA+(GHz)
2 BI_DA-(GHz)
3 BI_DB+(GHz)
4 BI_DC+(GHz)
5 BI_DC-(GHz)
6 BI_DB-(GHz)
7 BI_DD+(GHz)
8 BI_DD-(GHz)
H3 GND
H4 GND
Table 2.5: USB Connector Pin Definition
Pin Signal Name
1 +5V
2 D-_0
3 D+_0
4 GND
5 USB0_SSRX-
6 USB0_SSRX+
7 GND
8 USB0_SSTX-
9 USB0_SSTX+
