AIR-101 User Manual 12

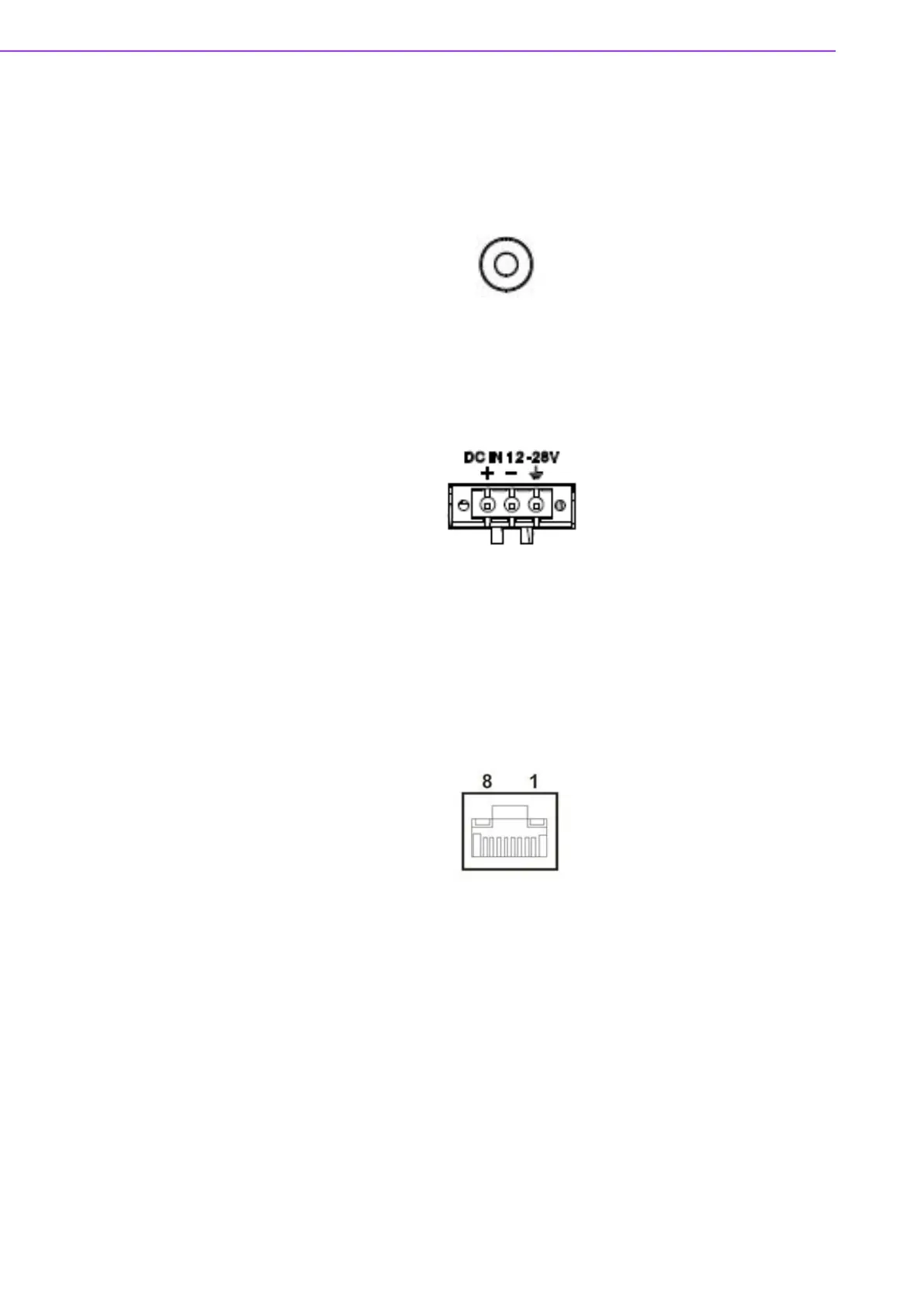

2.4 External I/O
2.4.1 Power On/Off Button
AIR-101 features a Power On/Off button with an LED indicators on the top side that
show On status (Green LED)
Figure 2.1 Power On/Off Button
2.4.2 Power Input Connector
The power input connector supports 12 ~ 28 V. The 3 pins are defined as +, -, and
GND
2.4.3 Ethernet Connector (LAN)
AIR-101 is equipped with two Intel® i210 Ethernet controllers that are fully compliant
with IEEE 802.3u 10/100/1000 Mbps CSMA/CD standards and connected to LAN1
and LAN2. The Ethernet port provides a standard RJ45 jack connector with LED indi-
cators on the front side to show its Active/Link status (Green LED) and Speed status
(Yellow LED).
Figure 2.2 Ethernet Connector (LAN)
