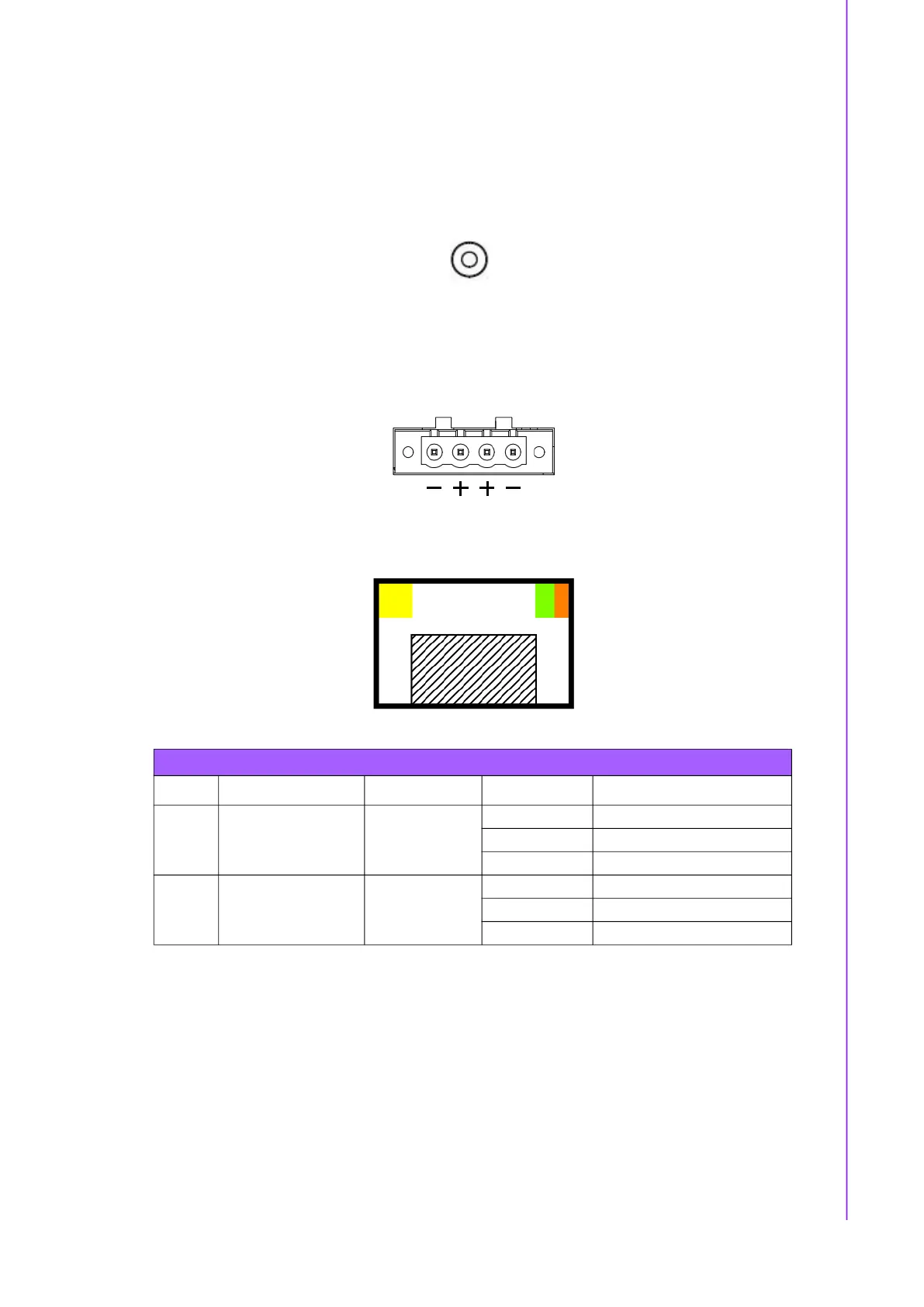

13 AIR-030 User Manual
Chapter 2 Hardware Installation
2.4 External I/O
2.4.1 Power On/Off Button
AIR-030 features a Power On/Off button with an LED indicators on the top side that
show On status (Green LED).
Figure 2.1 Power On/Off Button
2.4.2 Power Input Connector
The power input connector supports DC in 9~36V.
2.4.3 LAN3 LED Indication
Table 2.8: LED Indication of RJ45 Connector (LAN3 I225LM)
LED Position Color LED State NIC State
Link/
Activity
To the left of the
connector
Yellow
On Active Connection
Blinking Transmit/ Receive Activity
Off LAN link is not established
Link
Speed
To the right of the
connector
Green/Orange
orange 2500 Mbps /1000 Mbps
Green 100 Mbps
Off 10 Mbps
