AIMB-588 B1 User Manual 6

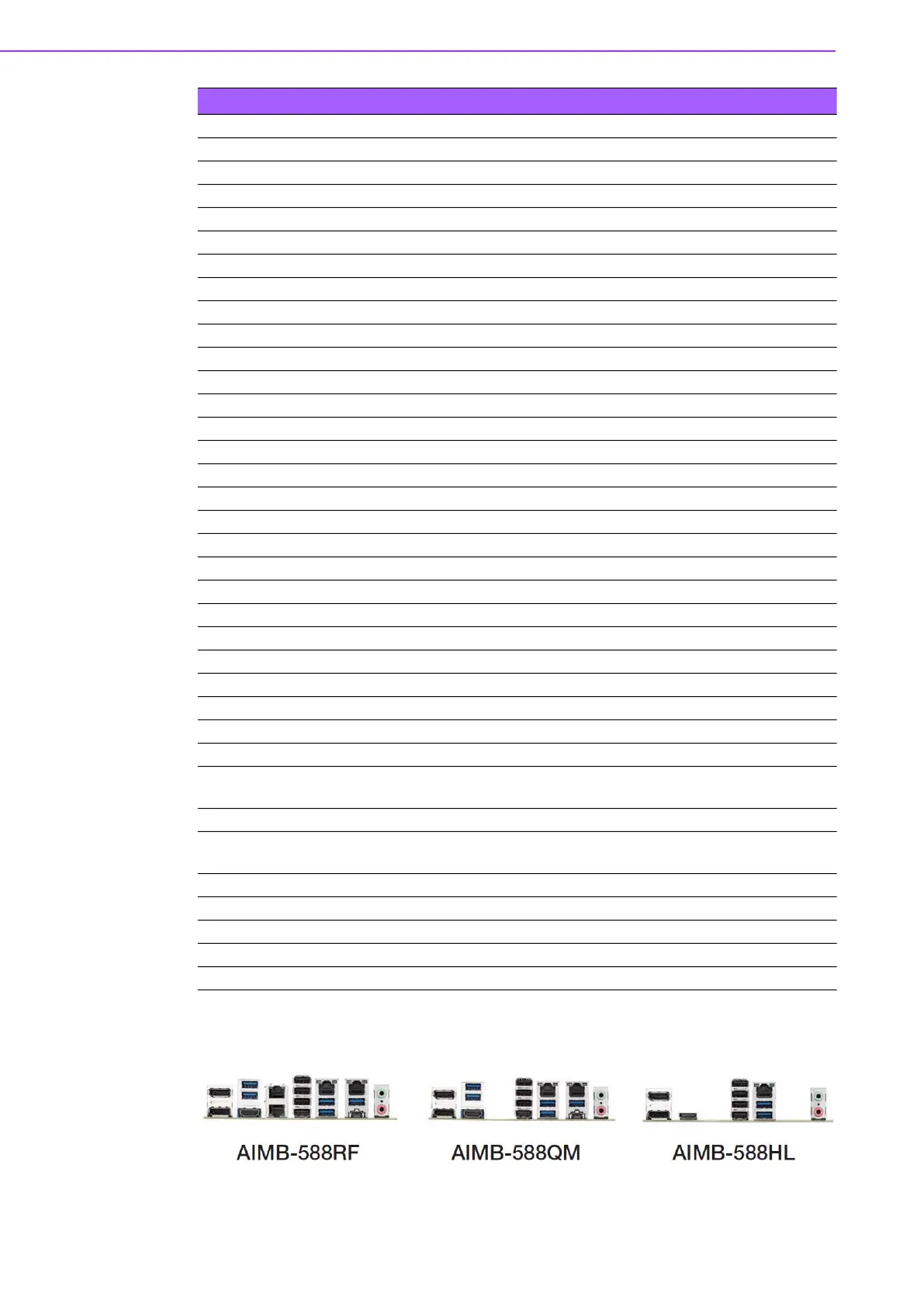

Figure 1.2 I/O Connectors
6 Type-C USB USB4
7 RJ-45 1port+ USB 3.2 Gen2 1port LAN2_USB3
8 Audio Jack AUDIO1
9 PCI Express x16 Slot PCIEX16_1
10 PCI Express x8 Slot PCIEX8_1
11 PCI Express p16-x4 Slot PCIEX4_1
12 PCI Express p16-x4 Slot PCIEX4_2
13 Front panel audio pin header FPAUD1
14 SPDIF interface pin header SPDIF1
15 USB3 PH 2port USB89
16 USB3 internal vertical 1port USB7
17 ESPI debug card pin header ESPI1
18 Battery wafer box BAT1
19 SPI BIOS Flash Socket SPI1
20 Keyboard and mouse connector KBMS1
21 Case open pin header JCASE1
22 BIOS flash pin header SPI_CN1
23 COM1 box header COM12
24 Serial ATA interface connector SATA1~8
25 COM2 box header COM3456
26 Power LED pin header JFP2
27 8-bit General Purpose I/O pin header GPIO1
28 eDP Backlight inverter power connector INV1
29 SMBUS Connector SMBUS1
30 SYSTEM FAN power connector SYSFAN4
31 SYSTEM FAN power connector SYSFAN3
32 SYSTEM FAN power connector SYSFAN2
33 SYSTEM FAN power connector SYSFAN1
34
-V5/+V5/-V12/+V12/+V3.3/+V5_DUAL power supply con-
nector
VOLT1
35 ATX 12/5V/3V/5VSBV power supply connector EATXPWR1
36 DDR5 UDIMM socket
DIMMA1,DIMMA2,
DIMMB1, DIMMB2
37 CPU FAN power connector CPUFAN1
38 MPS I2C/SMBUS Programming for +VCCIN Controller JSMB1
39 NGFF M.2 M-Key connector for 2280 module M2M1
40 ATX 12V Power Supply Connector ATX12V1
41 eDP Panel Connector EDP1
Table 1.2: Connector/Header List
