5 AIMB-588 B1 User Manual
Chapter 1 General Information
1.5 Board Layout: Jumper and Connector
Locations

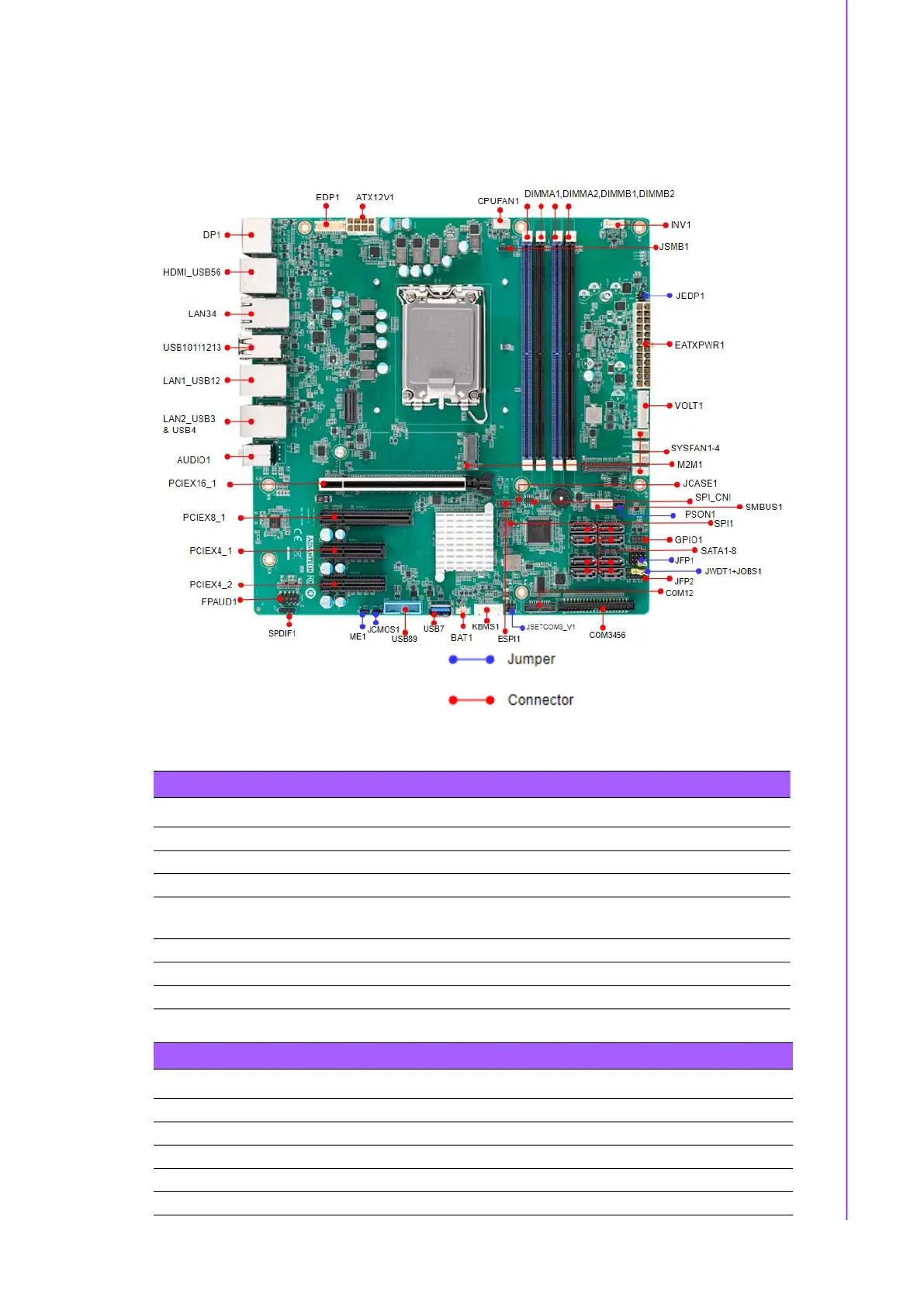

Figure 1.1 Jumper and Connector Locations
Table 1.1: Jumper Setting List
Description Part Reference
1 Flash Descriptor Security Override Setting Jumper ME1
2 CMOS Clear Jumper JCMOS1
3 COM3_RI# Pin RI#/5V/12V Selection JSETCOM3_V1
4
Watchdog Timer Output and OBS Beep (front panel
BEEP sound)
JWDT1+JOBS1
5 Power Switch / HDD LED / SMBUS / Speaker Pin Header JFP1
6 ATX/AT Mode Selection PSON1
7 eDP LCD POWER Selection JEDP1
Table 1.2: Connector/Header List
Description Part Reference
1 DisplayPort DP1
2 High Definition Multimedia Interface + USB 3.2 HDMI_USB56
3 RJ-45 2port LAN34
4 USB 2.0 4port USB10111213
5 RJ-45 1port+ USB 3.2 Gen2 2port LAN1_USB12
