13 AIIS-3411 User Manual
Chapter 2 Hardware Installation
2.1.8 USB 3.0 Connectors
USB ports 1 ~ 4 support the USB 3.0 interface, which gives complete Plug & Play
and hot swapping for up to 127 external devices. The USB interface is USB UHCI,
Rev. 3.0 compliant. Please refer to the table below for pin assignments. USB 3.0 con-
nectors contain legacy pins to interface with USB 2.0 devices, and a new set of pins
for USB 3.0 connectivity (both sets reside in the same connector).

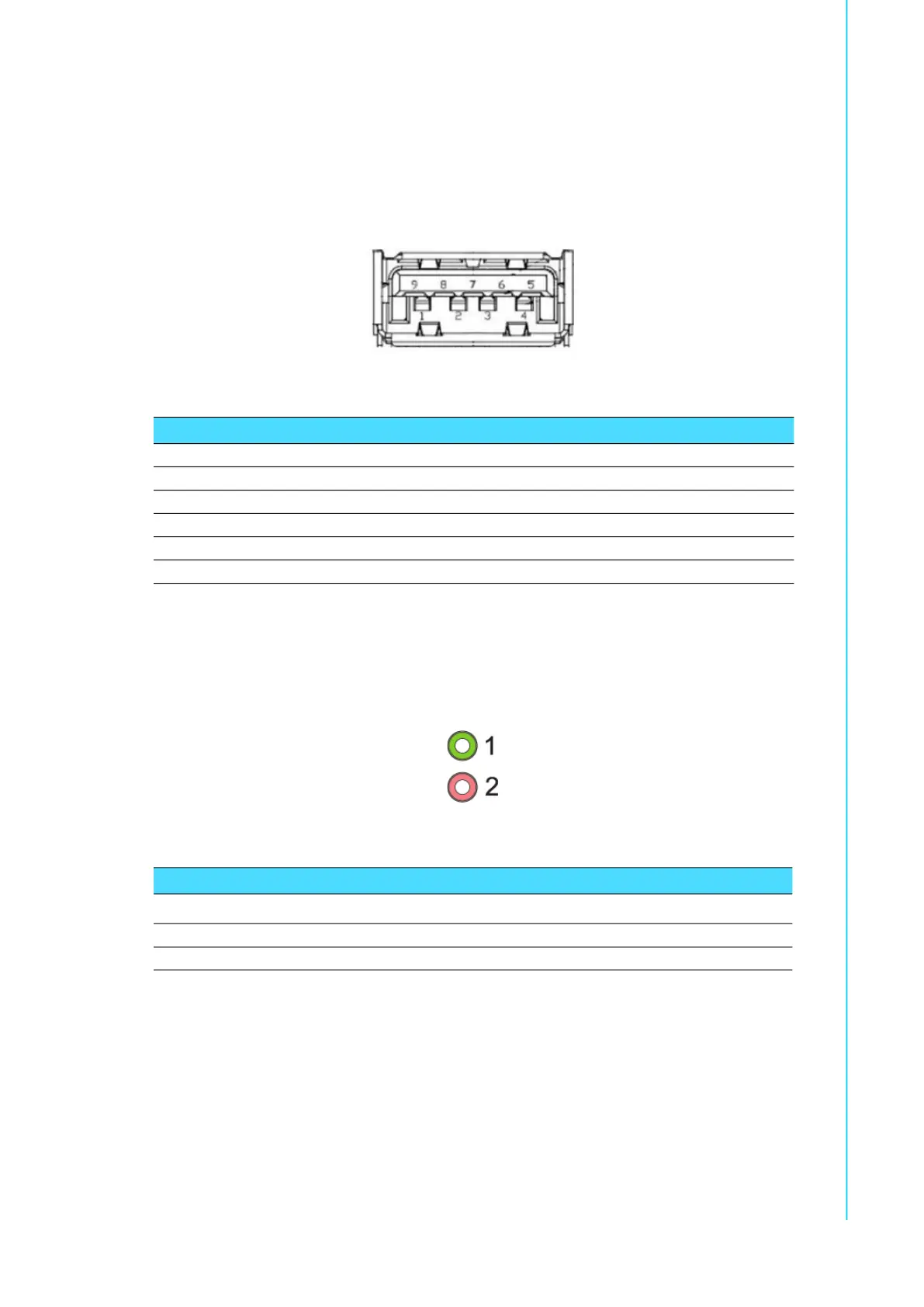

Figure 2.10 USB 3.0 Connectors
2.1.9 Audio Connector
The AIIS-3411 offers stereo audio ports via two headphone jack connectors for
Line_Out and Mic_In. The audio chip is controlled by ALC888s, and it is compliant
with the Azalea standard.
Figure 2.11 Audio Connector
2.1.10 Remote Power Switch Connector
The AIIS-3411 includes a 2-pin Phoenix DC power connector that provides for
remote power control.
Table 2.9: USB3.0 Connector Pin Assignment
Pin Signal Pin Signal
1 +5 V 2 USB Data -
3 USB Data + 4 GND
5 SSRX- 6 SSRX+
7 GND 8 SSTX-
9 SSTX+
Table 2.10: Audio Connector Pin Assignments
Pin Audio Signal Name
1 Line_Out
2 Mic_In
