AIIS-3411 User Manual 12
2.1.6 COM Connectors
The AIIS-3411 provides 2 D-sub 9-pin connectors that are serial communication
interface ports. COM-1 & COM-2 support RS-232/422/485 mode by BIOS selection.

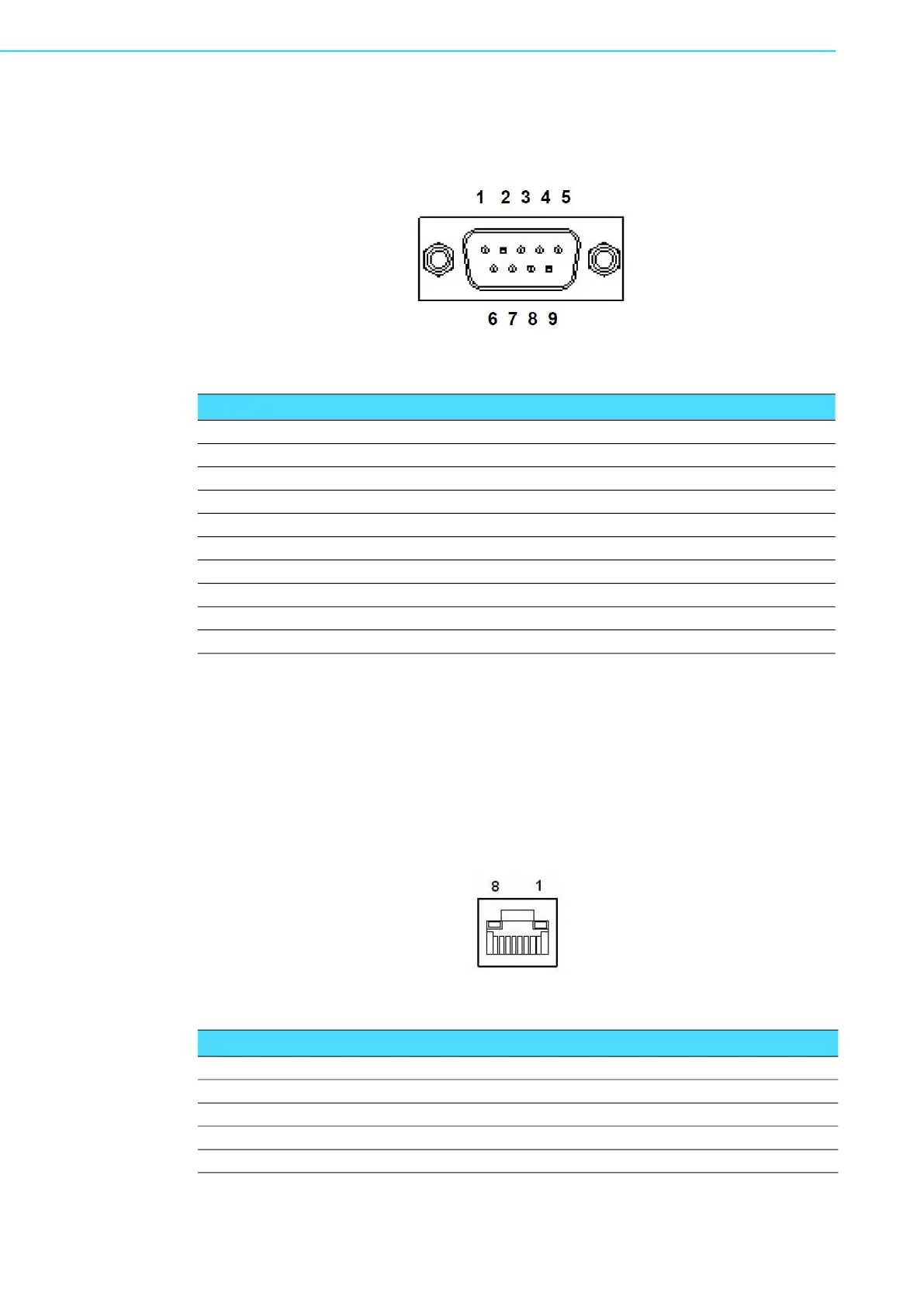

Figure 2.8 COM Connectors
2.1.7 Ethernet Connectors (LANs)
The AIIS-3411 provides six RJ45 connectors for Gigabit LAN interfaces; two of them
are equipped with Intel
®
i219LM, i210AT Ethernet Controllers, and four of them are
equipped with Intel
®
i210 Ethernet Controllers that are fully compliant with the IEEE
802.3af Power over Ethernet standard. The Ethernet ports provide standard RJ-45
jack connectors with LED indicators that show Active/Link status (Green LED) and
Speed status (Yellow LED).
Figure 2.9 Ethernet Connector
Table 2.7: Front 2-COM Pin Assignment
Pin RS-232 RS-422 RS-485
1 DCD TXD - DATA -
2 SIN# TXD + DATA +
3 SOUT# RXD + NC
4 DTR RXD - NC
5 GND GND GND
6 DSR NC NC
7 RTS NC NC
8 CTS NC NC
9 RI NC NC
Table 2.8: Ethernet Connector Pin Assignment
Pin Signal Pin Signal
1 MDI0 + 2 MDI0 -
3 MDI1 + 4 MDI1 -
5 MDI2 + 6 MDI2 -
7 MDI3 + 8 MDI3 -
