AIIS-3411 User Manual 10

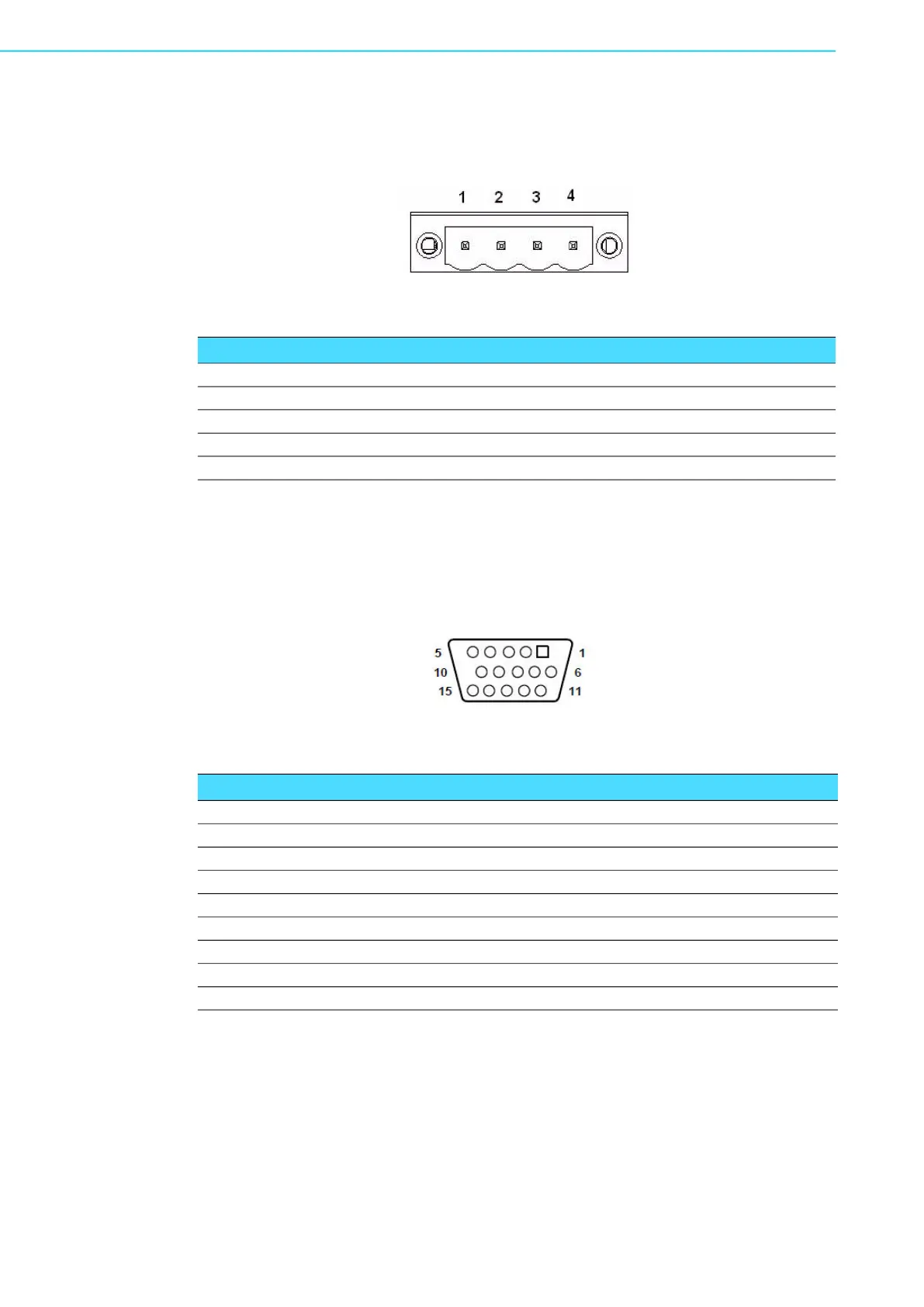

2.1.3 Power Input Connector
The AIIS-3411 comes with a four-pin header that carries 19 VDC - 24 VDC external
power input.
Figure 2.5 Power Input Connector
2.1.4 VGA+HDMI Connector
The AIIS-3411 offers an integrated female HDMI connector and a D-sub 15-pin VGA;
HDMI carries digital video signal. This supports high-speed, high-resolution digital
displays and traditional analog displays.
Figure 2.6 Figure 2.7 VGA Connector
Table 2.4: Power Input Connector Pin Assignments
Pin Signal
1 GND
2 19 VDC - 24 VDC
3 19 VDC - 24 VDC
4 GND
Table 2.5: VGA Connector Pin Assignment
Pin Signal Pin Signal
1 RED 2 GREEN
3 BLUE 4 N/C
5 GND 6 GND
7 GND 8 GND
9 VCC 10 GND
11 N/C 12 SDT
13 H-SYNC 14 V-SYNC
15 SCK
