9 AIIS-3411 User Manual
Chapter 2 Hardware Installation
2.1.1 Power On/Off Button
The AIIS-3411 has a Power On/Off button with LED indicators on the front side that
show On status (green LED) and Off/Suspend status (orange LED). The Power but-
ton supports dual functions: Soft Power - On/Off (Instant off or Delay 4 Seconds then
off), and Suspend.

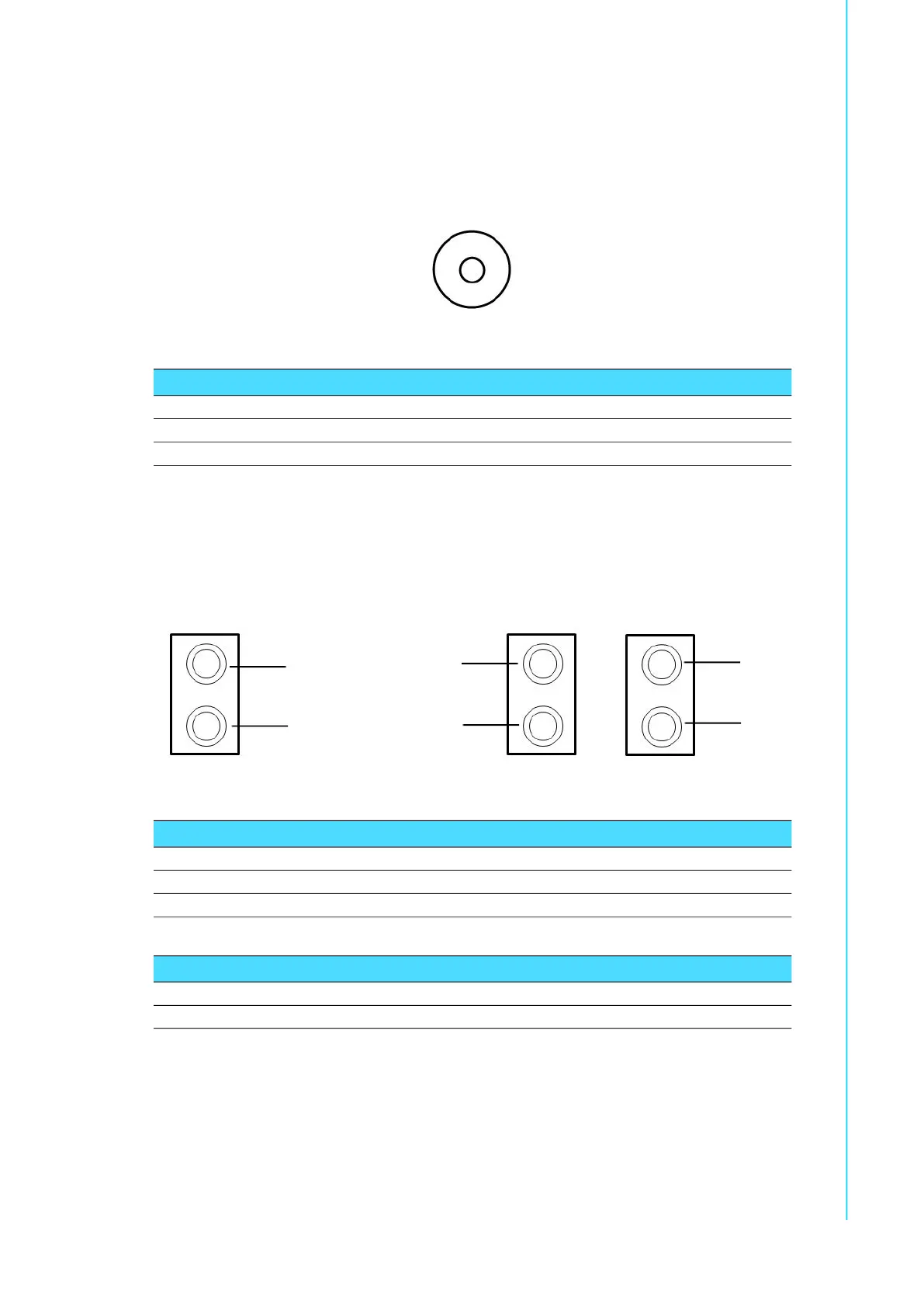

Figure 2.3 Power On/Off Button
2.1.2 LED Indicators
There are two LEDs on the front panel that indicate system status: The temperature
LED is for system thermal alarm status; and HDD LED is for HDD and CFast disk sta-
tus. In addition, there are four LEDs to indicate the connection of powered device via
PoE port.
Figure 2.4 LED Indicators
Table 2.1: Power Button Connector Pin Assignment
LED color Status
Green Power ON
Amber S1/S4/S5
Table 2.2: LED Indicators (Thermal & HDD)
LED color Function
Red Over heating LED
Amber SATA LED
Table 2.3: LED Indicator (PoE)
LED color Function
Red Connected Powered Device
HDD LED
Temp. LED
PoE
PoE
PoE
PoE
