13 AIIS-1882 User Manual
Chapter 2 Installation and Field Application
3-pin Lighting Connectors (LT0~LT3)
This is the optional lighting connection for AIIS-1882. Pin definition is as below:

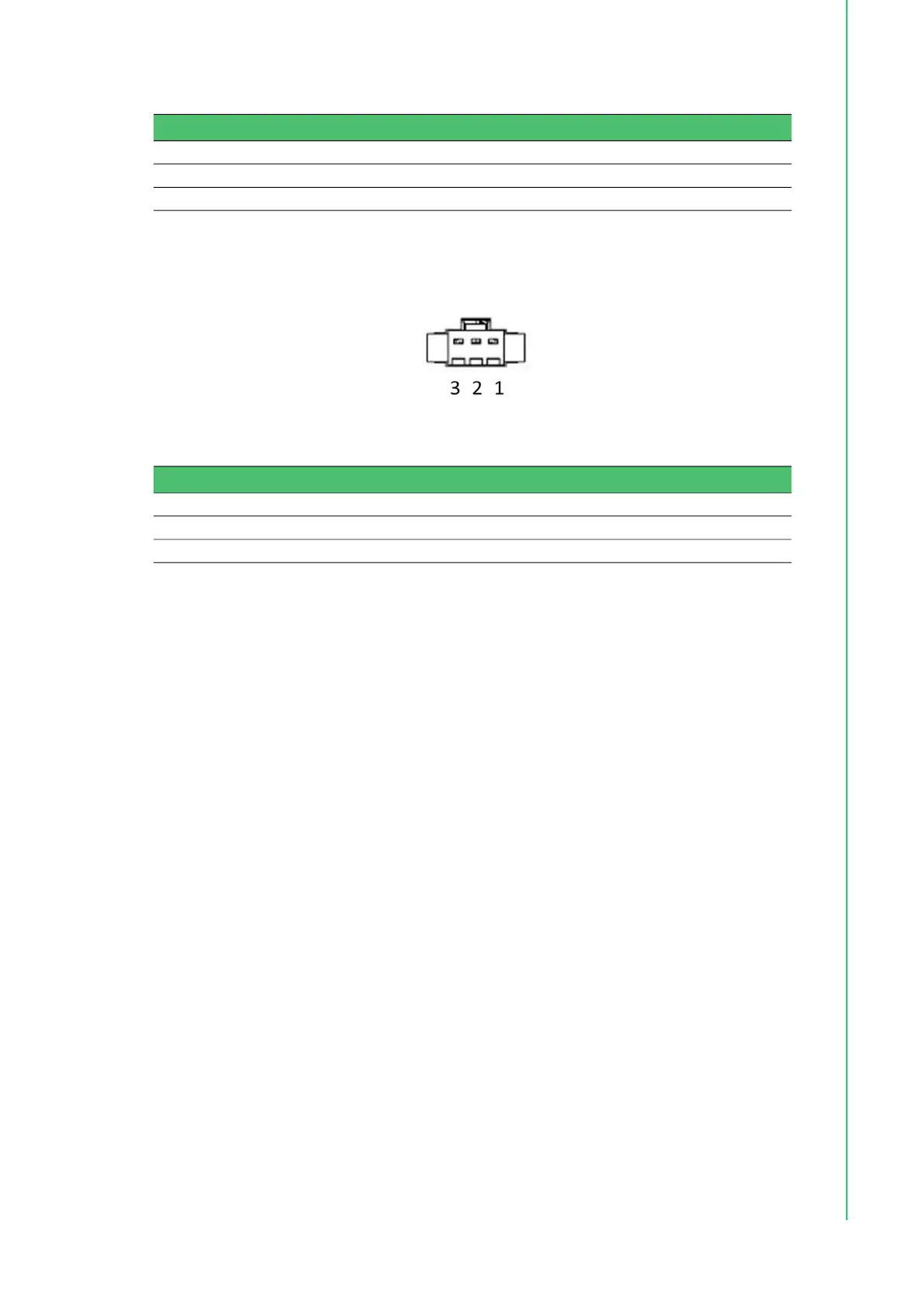

Figure 2.14 Pin assignment of 3-pin lighting connector
Table 2.4: Pin assignment of 2-pin lighting connector
Pin Name Description Pin Number
Lighting V+ (PWR_OUT) Positive pin for lighting 2
Lighting V- (CNT_OUT) Negative pin for lighting (PWM control pin) 1
Table 2.5: Pin assignment of 3-pin lighting connector
Pin Name Description Pin Number
Lighting V+ (PWR_OUT) Positive pin for lighting 2, 3
Lighting V- (CNT_OUT) Negative pin for lighting (PWM control pin) 1
