AFE-R770 User Manual 16
2.3.1.4 Audio Connector
The AFE-R770 features one phone jack connector that supports stereo Line-Out or
Mic-In audio ports. The audio chip is controlled by ALC888S and compliant with the
Azalea standard.

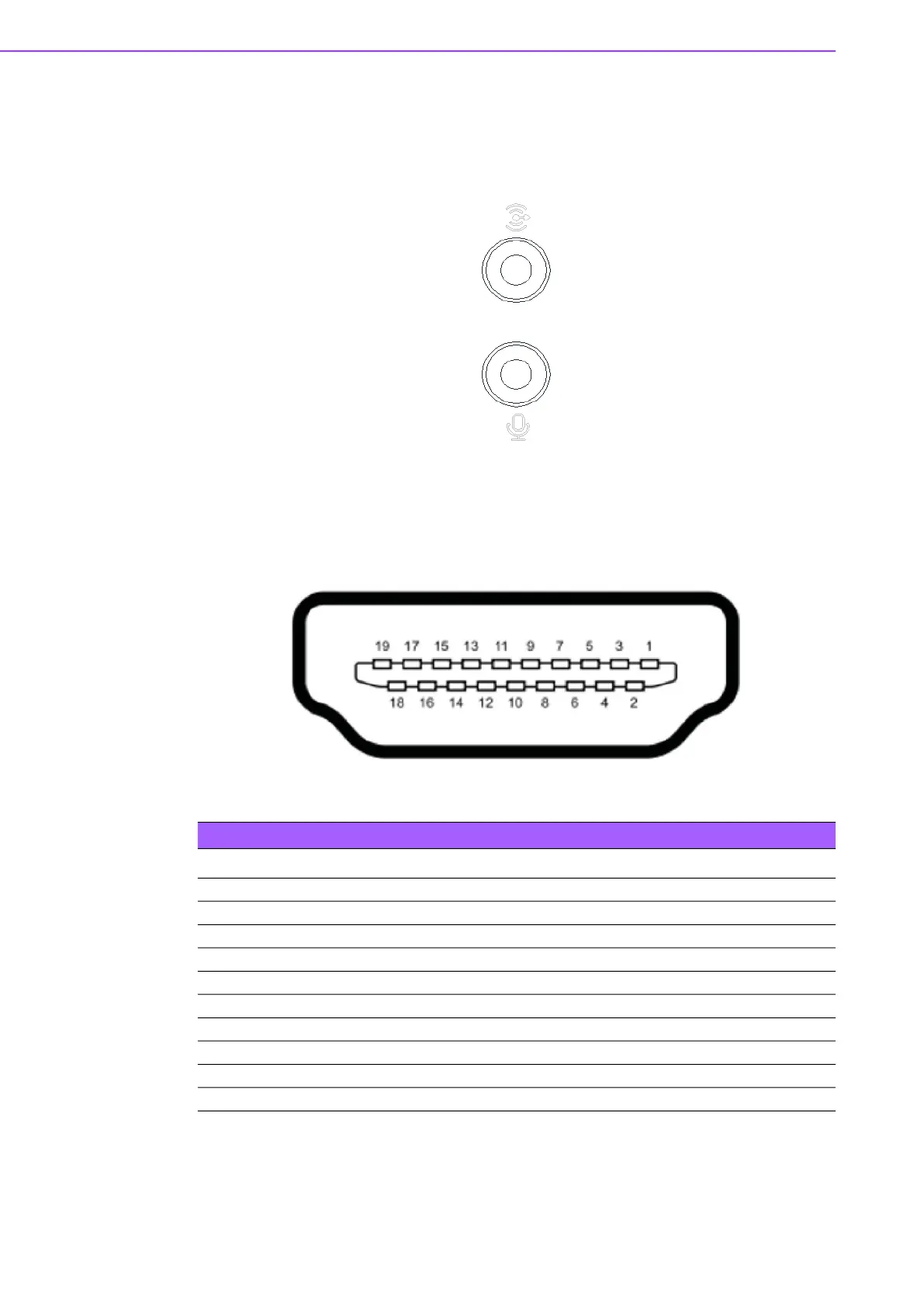

Figure 2.6 Audio Connector
2.3.1.5 HDMI Connector
An integrated, 19-pin receptacle connector for an HDMI Type A Interface is provided.
The HDMI link supports resolutions up to 4096 x 2160 @ 24 Hz.
Figure 2.7 HDMI Receptacle Connector
Table 2.10: HDMI Connector Pin Assignments
Pin Signal Name Pin Signal Name
1 TMDS Data 2+ 2 TMDS Data 2 shield
3 TMDS Data 2- 4 TMDS Data 1+
5 TMDS Data 1 shield 6 TMDS Data 1-
7 TMDS Data 0+ 8 TMDS Data 0 shield
9 TMDS Data 0- 10 TMDS clock+
11 TMDS clock shield 12 TMDS clock-
13 CEC 14 Reserved
15 SCL 16 SDA
17 DDC/CEC Ground 18 +5V
19 Hot Plug Detect
