15 AFE-R770 User Manual
Chapter 2 Hardware Configuration
2.3.1.2 Ethernet Connector (LAN)
The AFE-R770 is equipped with up to 4 x Ethernet controllers. These Ethernet ports
provide a standard RJ-45 jack connector with LED indicators on the front side to
show Active/ Link status (Green LED) and Speed status (LED Yellow:1G /
Green:2.5G).

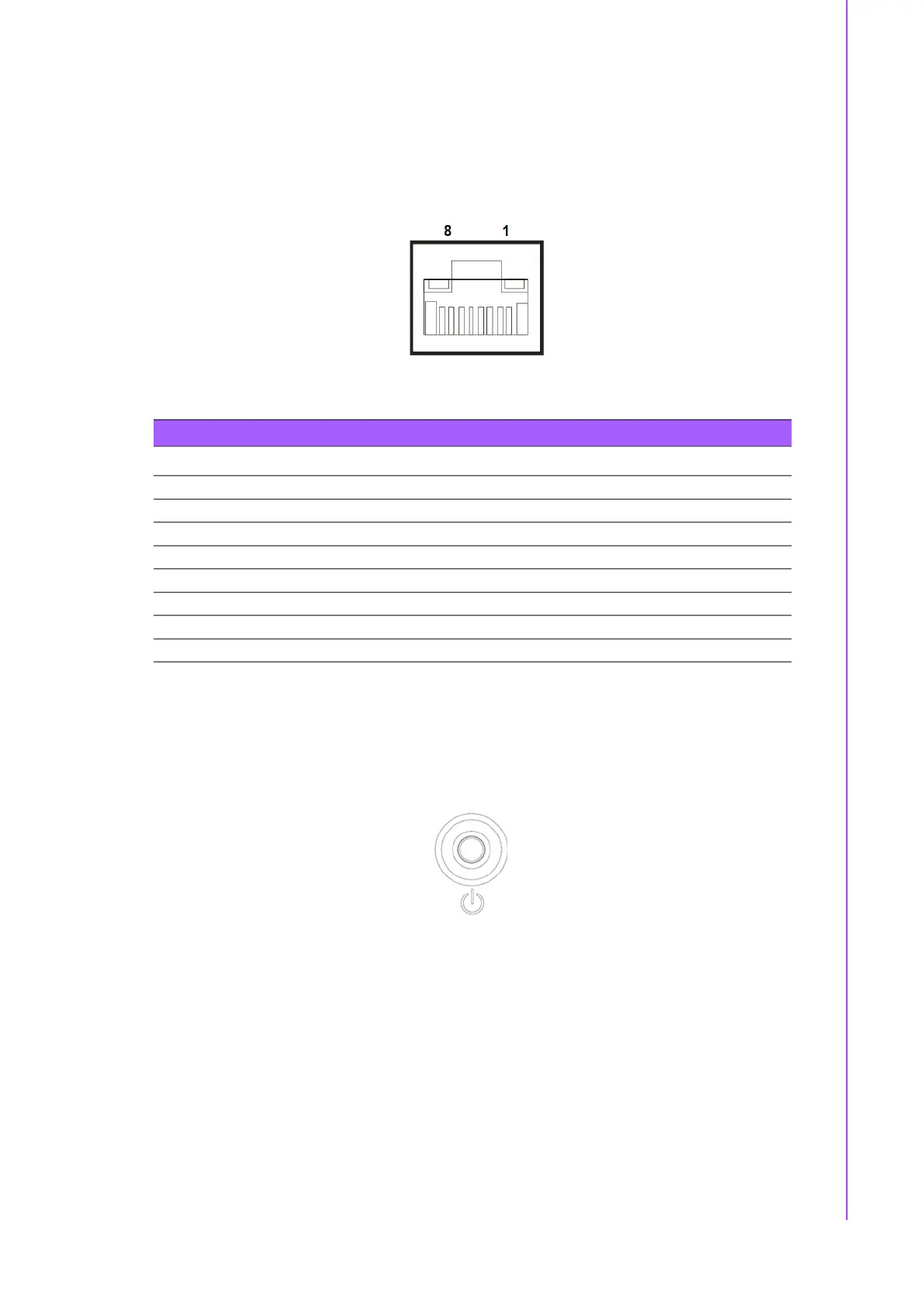

Figure 2.4 Ethernet Connector
2.3.1.3 Power On/Off Button
The AFE-R770 has a Power On/Off button with LED indicators on the front side that
show “On” (Green LED) and “Off/Suspend” status (Orange LED). The Power button
sup- ports dual functions: Soft Power-On/Off (Instant off or Delay 4 Seconds then off),
and Suspend.
Figure 2.5 Power ON/OFF Button
Table 2.9: Ethernet Connector Pin Assignments
Pin 10/100/1000/2500 BaseT Signal Name
1 TX+
2 TX-
3 RX+
4 MDI2+
5 MDI2-
6 RX-
7 MDI3+
8 MDI3-
