AFE-R760 User Manual 14

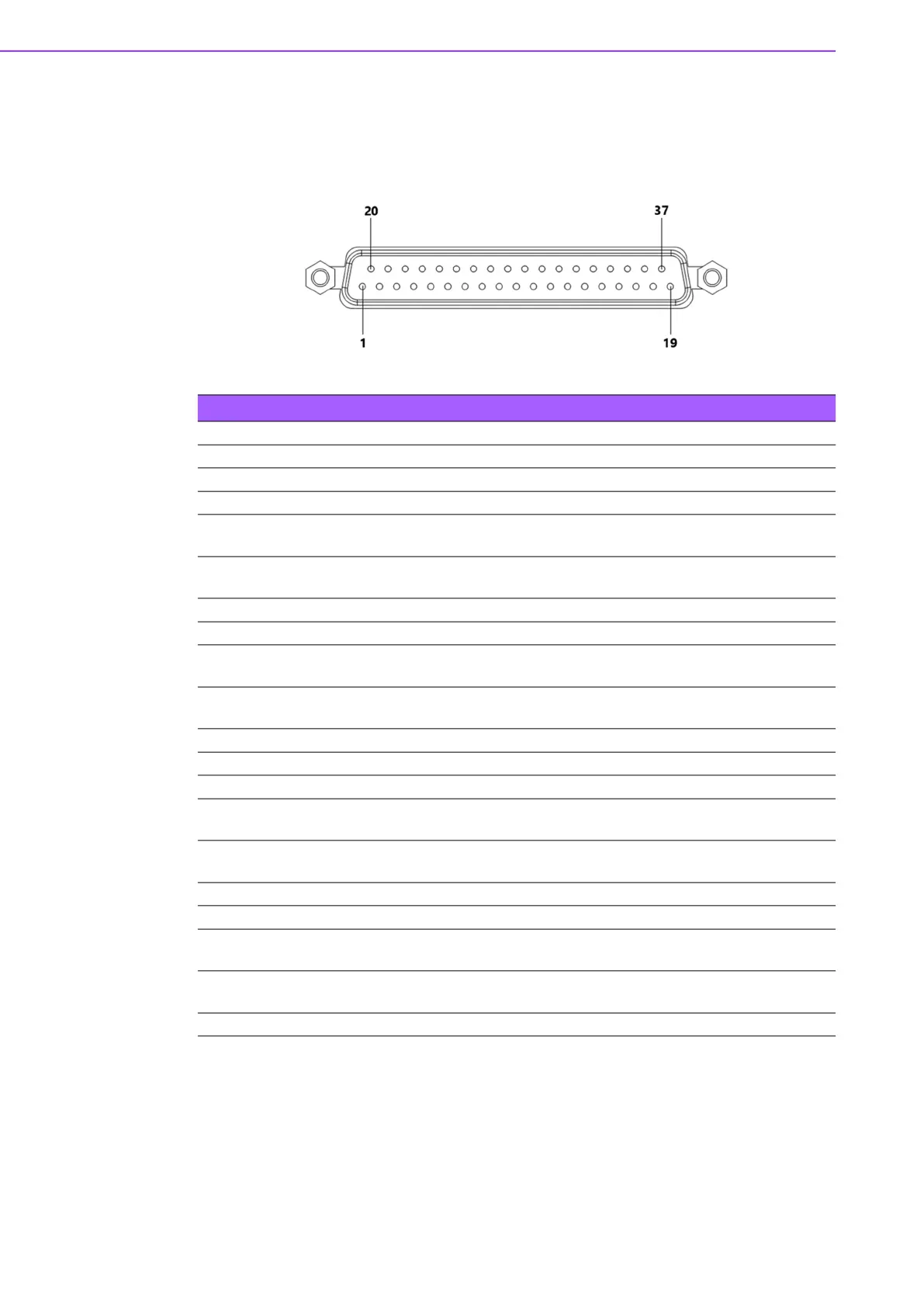

2.3.9 COM Connector
AFE-R760 provides a D-sub 37-pin connector, which offers RS-232/422/485 serial
communication interface ports. The default setting is RS-232, and the mode RS- 422/
485 can be supported via the BIOS settings.
When using the optional 1700021869-01, please ensure that the ports and cables
are connected to the corresponding signals as indicated below.
Table 2.7: COM Port
Pin Signal Definition Pin Signal Definition
1 - 20 -
2 - 21 -
3 COM1_GND 22 -
4
COM1_RS232-CTS#_RS422-TX-
_RS485-DAT-
23 COM1_RS232-RTS#_RS422-RX-
5
COM1_RS232-RXD_RS422-
TX+_RS485-DAT+
24 COM1_RS232-TXD_RS422-RX+
6 - 25 -
7 - 26 COM2_GND
8 - 27
COM2_RS232-CTS#_RS422-TX-
_RS485-DAT-
9 COM2_RS232-RTS#_RS422-RX- 28
COM2_RS232-RXD_RS422-
TX+_RS485-DAT+
10 COM2_RS232-TXD_RS422-RX+ 29 -
11 - 30 -
12 COM3_GND 31 -
13
COM3_RS232-CTS#_RS422-TX-
_RS485-DAT-
32 COM3_RS232-RTS#_RS422-RX-
14
COM3_RS232-RXD_RS422-
TX+_RS485-DAT+
33 COM3_RS232-TXD_RS422-RX+
15 - 34 -
16 - 35 COM4_GND
17 - 36
COM4_RS232-CTS#_RS422-TX-
_RS485-DAT-
18 COM4_RS232-RTS#_RS422-RX- 37
COM4_RS232-RXD_RS422-
TX+_RS485-DAT+
19 COM4_RS232-TXD_RS422-RX+
