13 AFE-R760 User Manual
Chapter 2 Jumpers and Connectors

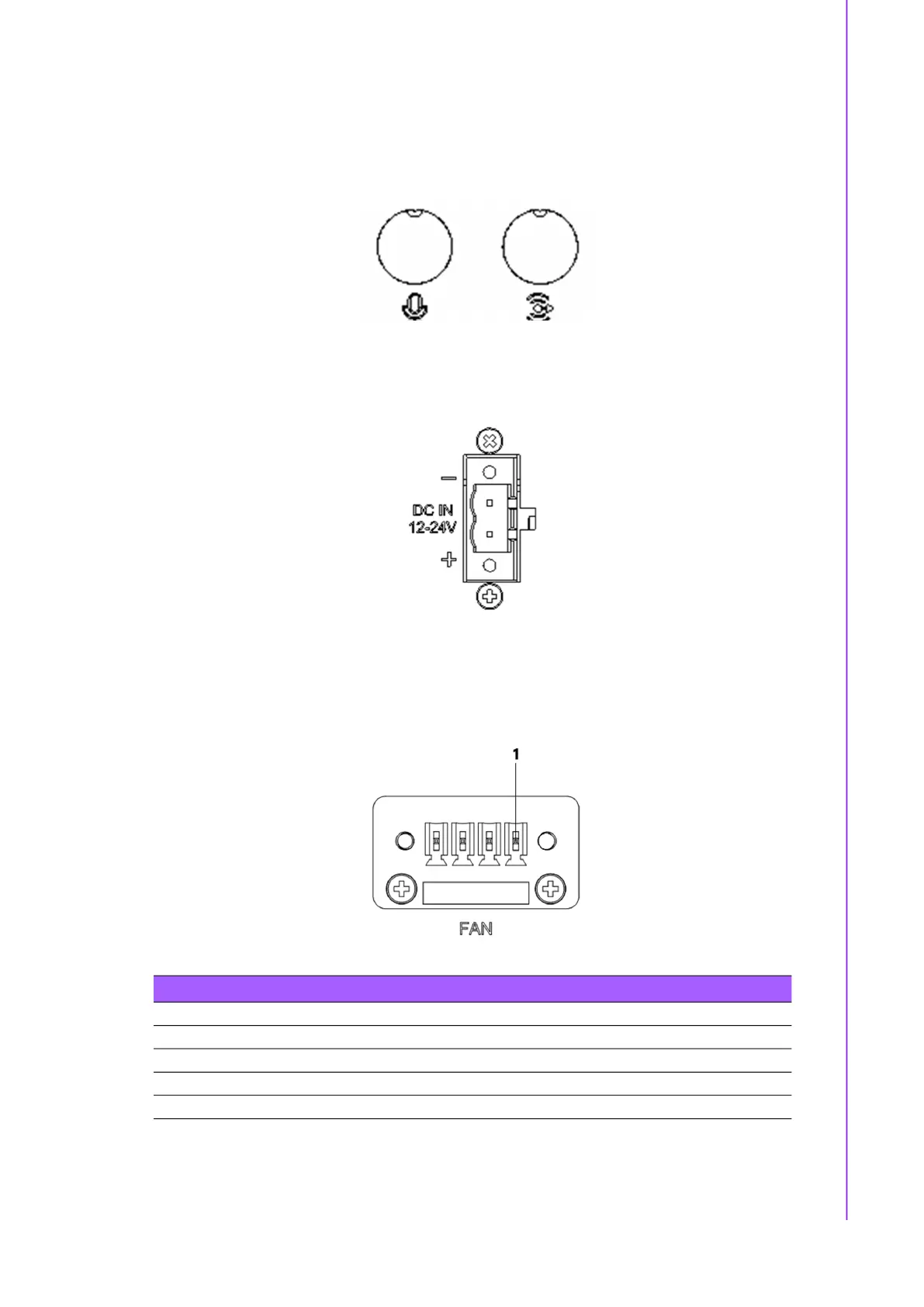

2.3.6 Audio Connector (Optional)
AFE-R760 features one phone jack connector that supports stereo Line-Out or Mic-In
audio ports. The audio chip is controlled by ALC888S and compliant with the Azalea
standards.
2.3.7 Phoenix Terminal Connector
AFE-R760 supports one 2-pin Phoenix terminal power input connector.
2.3.8 FAN Connector
AFE-R760 supports one 2-pin Phoenix terminal power input connector. This is only
compatible with fans rated at 0.38A or less.
Table 2.6: FAN Connector Pin Assignments
Pin Signal Definition
1 GND
2 +12V
3 FAN_TACH
4 CPU_PWM
