63 ADAM-5000 Series User Manual
Chapter 6 Counter/Frequency Modules

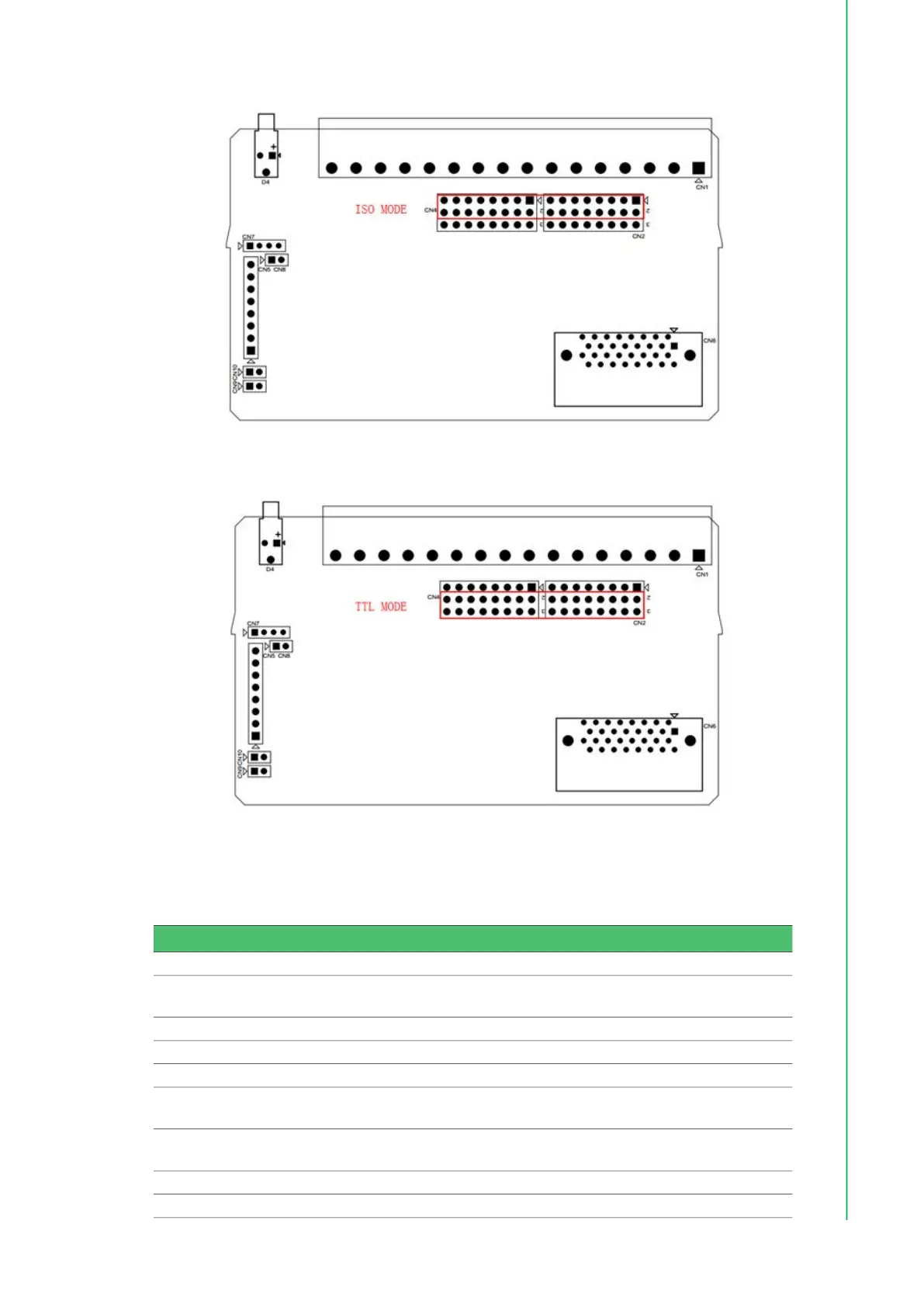

Figure 6.12 Jumper Location for Isolation Mode
Figure 6.13 Jumper Location for TTL Mode
Table 6.1: ADAM-5080 Technical Specifications
Channel 4
Input Frequency 0.3 ~ 1000 Hz max. (Frequency mode) 5000 Hz max. (Counter
mode)
Input Level Isolated or TTL level
Minimum Pulse Width 500 µ sec. (Frequency mode) 100 µ sec. (Counter mode)
Minimum Input Current 2mA (Isolated)
Isolated Input Level Logic Level 0 : +1 V
MAX
Logic Level 1 : + 3.5 V to 30 V
TTL Input Level Logic Level 0 : 0 V to 0.8 V
Logic Level 1 : 2.3 to 5 V
Isolated Voltage 1000 V
RMS
Mode Counter (Up/Down, Bi-direction) Frequency
