ADAM-5000 Series User Manual 62

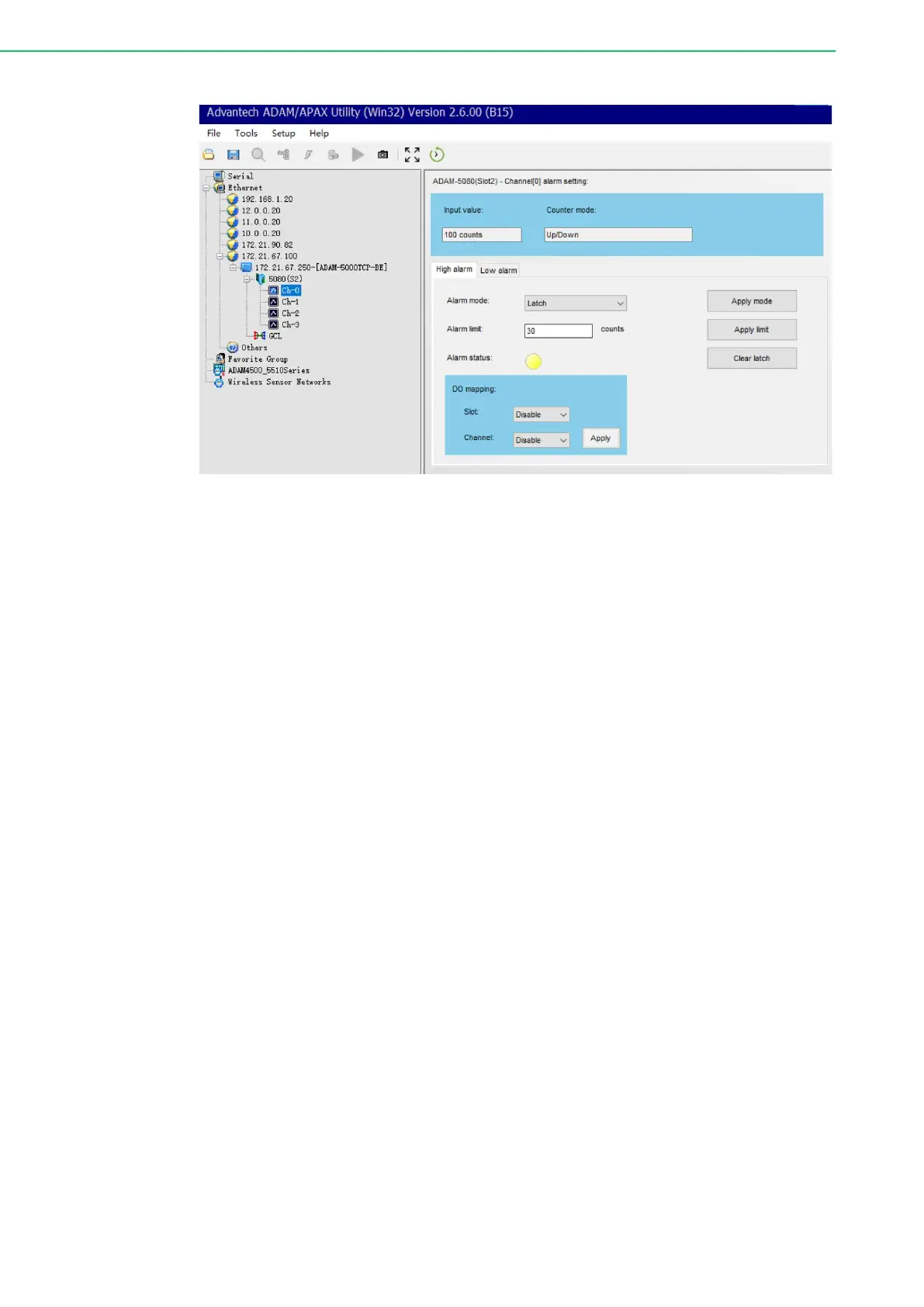

Figure 6.11 Digital Output Mapping
1. High Alarm State--Set Alarm state to "Latch" or "Disable".
2. High Alarm Limit--Set Alarm limit from 0 to 4,294,967,295.
3. High Alarm Output Mode--Enable or Disable D.O. Mapping.
4. High Alarm Output Slot--Users can select D.O Modules such as ADAM-5050,
ADAM-5055, ADAM-5056, ADAM-5060, ADAM-5068.
5. High Alarm Output Channel--Select Alarm Output Channel
6. Clear Latch Alarm--Users can select "Enable" or "Disable" option. When select-
ing "Enable", the latch will be relieved and the alarm state will return to normal. Once
the alarm state returns to normal, the Clear Latch Alarm will return to "Disable".
TTL/Isolated Input Level
According to your need, you can select either TTL or Isolated Input Level by set-
ting the configuration for the jumpers. Select the proper jumper settings for either
TTL or Isolated Input according to Figure 6.12, and Figure 6.13. Please note that you must
configure all six jumpers to the correct configuration for proper function.
