59 ADAM-5000 Series User Manual
Chapter 6 Counter/Frequency Modules

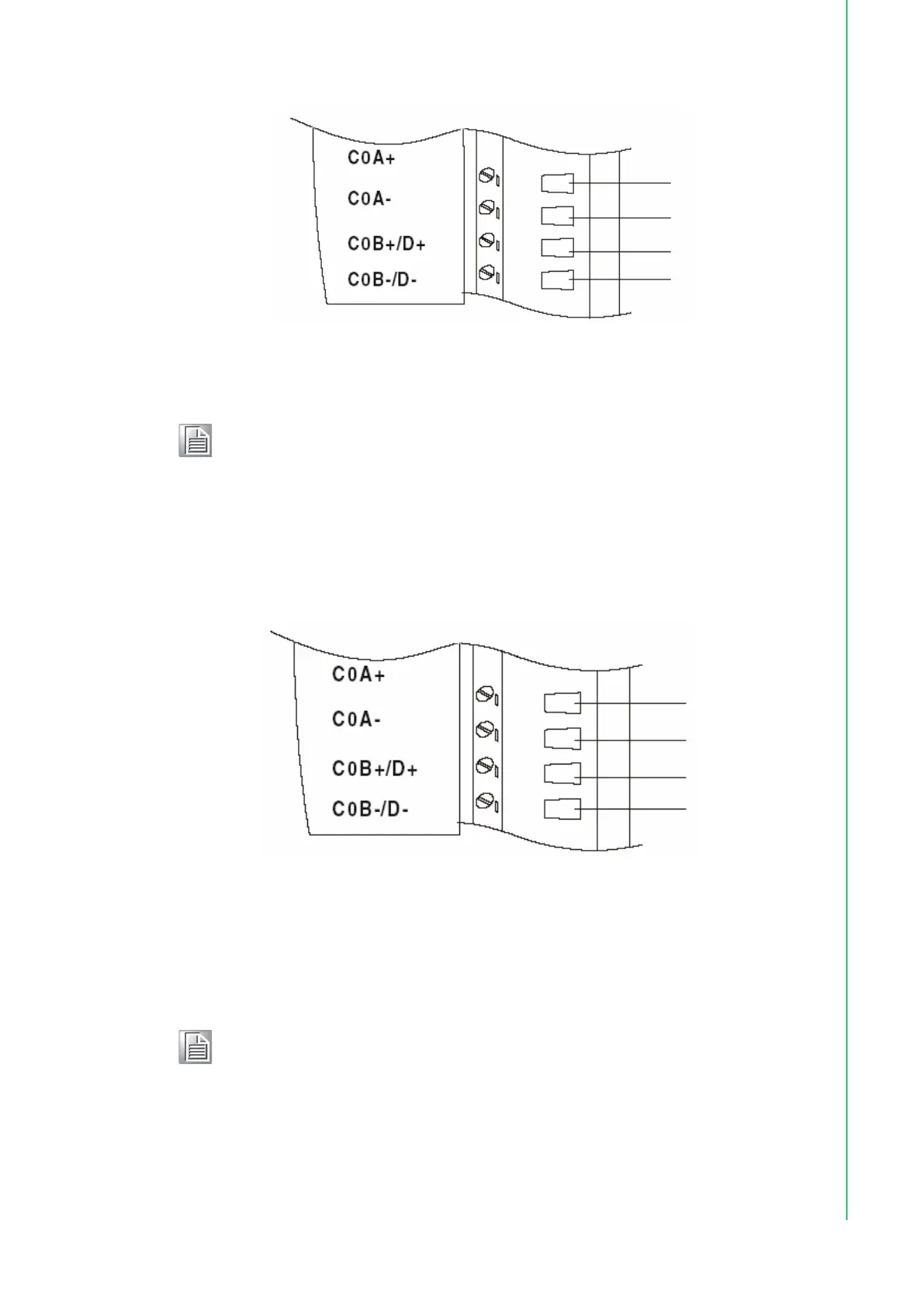

Figure 6.5 Wiring for Up/Down Counting
Bi-direction Counting
For implementing Bi-direction Counting, you need to connect C0B+/D+ and C0B-/D- to
implement the control function for Up/Down Counting. Up Counting: when the input sig-
nal is within logic level "1", the counter value increases.
Figure 6.6 Wiring for Bi-direction Counting
Down Counting: when the input signal is within logic level "0", the counter value
decreases.
Features -- Frequency Mode
If users want to select frequency mode, they can only utilize Up Counting type, and
can only connect to C0A+ and C0A-.
Note! If you need only one type of counting, connect C0A+ and C0A- for Up
Counting only; or connect C0B+ and C0B- for Down Counting only.
Note! If users select TTL mode and don't connect C0B+ C0B-, the counter
value will increase. If users select Isolated mode and don't connect
C0B+ C0B-, the counter value will decrease.
For ADAM-5080-BE, if users don't connect C0B+ C0B-, the counter
value will decrease whichever the mode is.
