ADAM-4100 User Manual 10
repeater modules can be connected, allowing for a maximum of 255 ADAM modules.
As with the converter module, the repeater module is not addressable by the host
and the baud rate must be reset by changing the switch inside the module. The fac-
tory default setting is 9600 baud.
2.2 Basic Configuration and Network Setup
Before placing a module in an existing network, the module should be configured.
Although all modules are initially configured at the factory, it is recommended to
check whether the baud rate is set correctly prior to installing it in your network.
2.2.1 Default Factory Settings
Baud rate 9600 bit/s
Address 01h

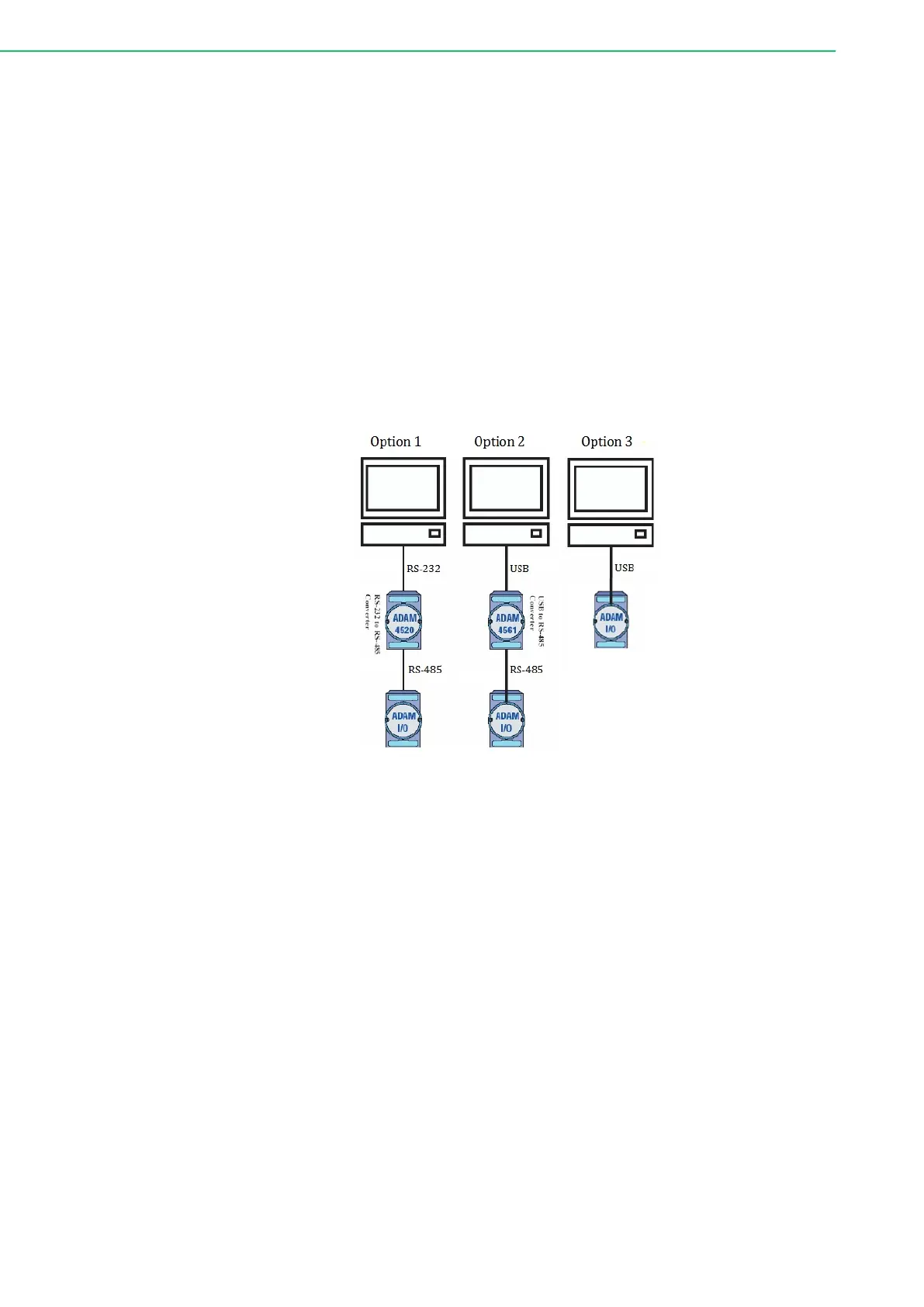

A basic module network configuration is shown in Figure 2.2.
Figure 2.2 Connecting ADAM Modules to Host Switches
The following items are required to configure a module:
ADAM converter module
PC with an RS-232 port (baud rate set to 9600)
Adam/Apax .NET Utility
2.2.2 Grounding Protection
Grounding is one of the most important issues for ADAM systems. Just like the frame
ground of a computer, this signal offers a reference point for the electric circuit inside
the computer. If we want to communicate with this computer, both the signal ground
and frame ground should be connected to make a reference point for each other's
electric circuit. Generally, it is necessary to install an individual grounding bar for
each system, such as computer networks, power systems, and telecommunication
networks. Those individual grounding bars not only provide an individual reference
point, but they also make the earth a ground.
The ADAM-4100 series of modules provides flexible grounding options, in that you
can use the ground connector on the right side of the module to ground the unit, as
shown in the following image:
