A-16 / ENGLISH
A-16 - FORM NO. 56091013 - ES4000
REMOVING THE VACUUM SHOES

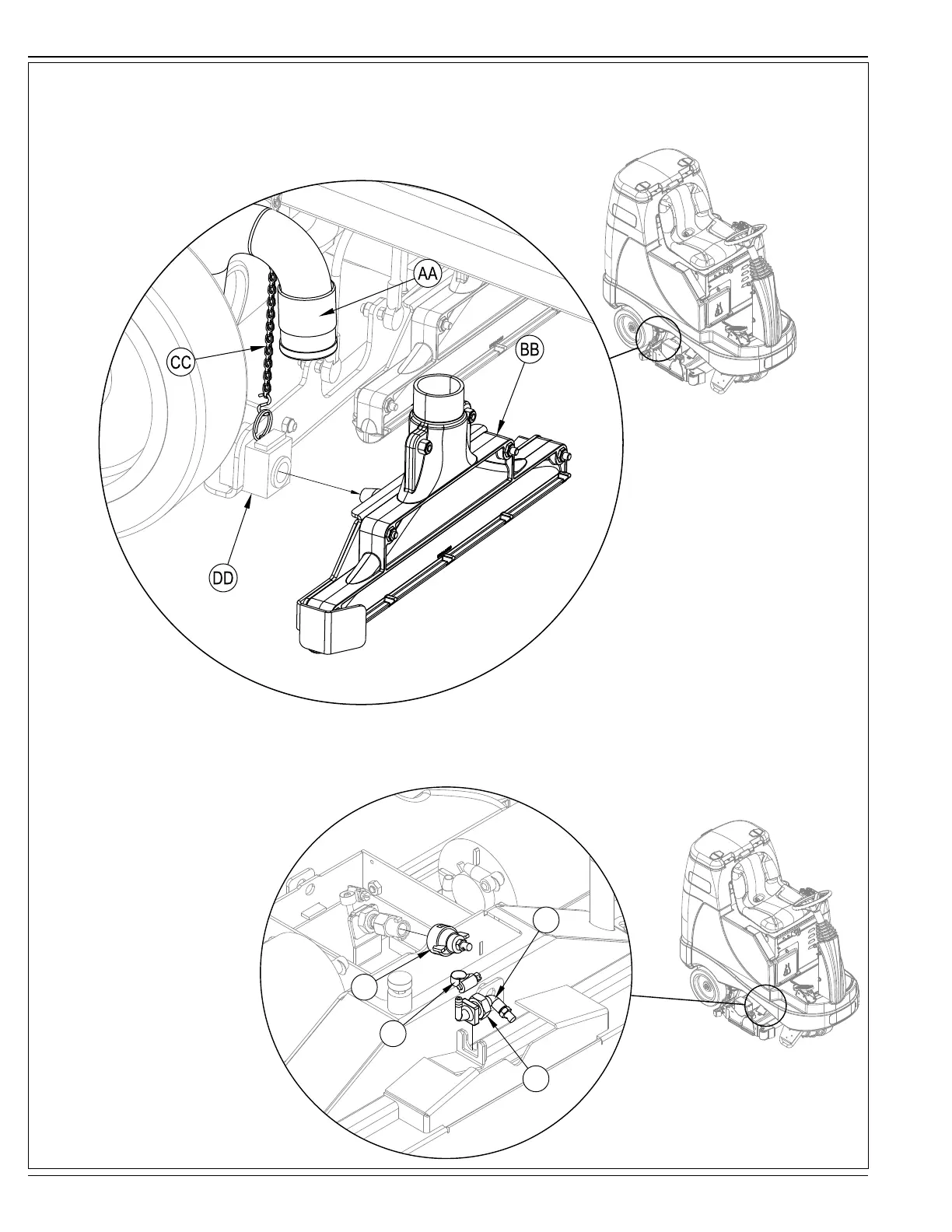

1 See Figure 8. Turn the Key Switch (A) OFF and remove the Debris Hopper (14).
2 Disconnect the Vacuum Hose (AA) from the Vac Shoe (BB) and pull up on the gold Chain (CC). Slide the Vac Shoe (BB) out of the Shoe Support Weldment
(DD). NOTE: The procedure is the same for both vac shoes but the right side shoe must be removed before removing the left side shoe.
3 Reinstallation is reverse of removal.
FIGURE 8
REMOVING THE SPRAY NOZZLES
1 Turn the Key Switch (A) ON and Lower the Brush Deck (13) by pressing the Extract ON/OFF Switch (F).
2 See Figure 9. Remove the Maintenance Nozzle (EE) by turning counter-clockwise and then pulling straight off.
3 Remove the Restoration Nozzle (FF) by loosening Hose Clamp (GG) and disconnecting the solution hose and then loosening Nut (HH). The Nozzle
assembly can then be lifted straight up and off the deck.
FIGURE 9
FF
GG
EE
HH
revised 12/11
