ENGLISH / A-15

FORM NO. 56091013 - ES4000 - A-15

CLEANING THE VACUUM MOTOR FILTERS

Clean the vacuum motor ﬁ lters daily with compressed air. For extremely dirty ﬁ lters, wash with warm, soapy water and rinse thoroughly with clean water. Allow

the ﬁ lters to dry completely before re-installing in the machine. MAINTENANCE NOTE: Keep a second set of ﬁ lters on hand to use while ﬁ rst set is drying.

POWER BRUSH MAINTENANCE

Check the brushes daily. Remove any built-up string, hair or carpet ﬁ bers. Check the bristle length. Have a service technician change the brushes when the

brush bristles are worn to 1/2 inch (12.7 mm).

REMOVING THE FRONT BRUSH

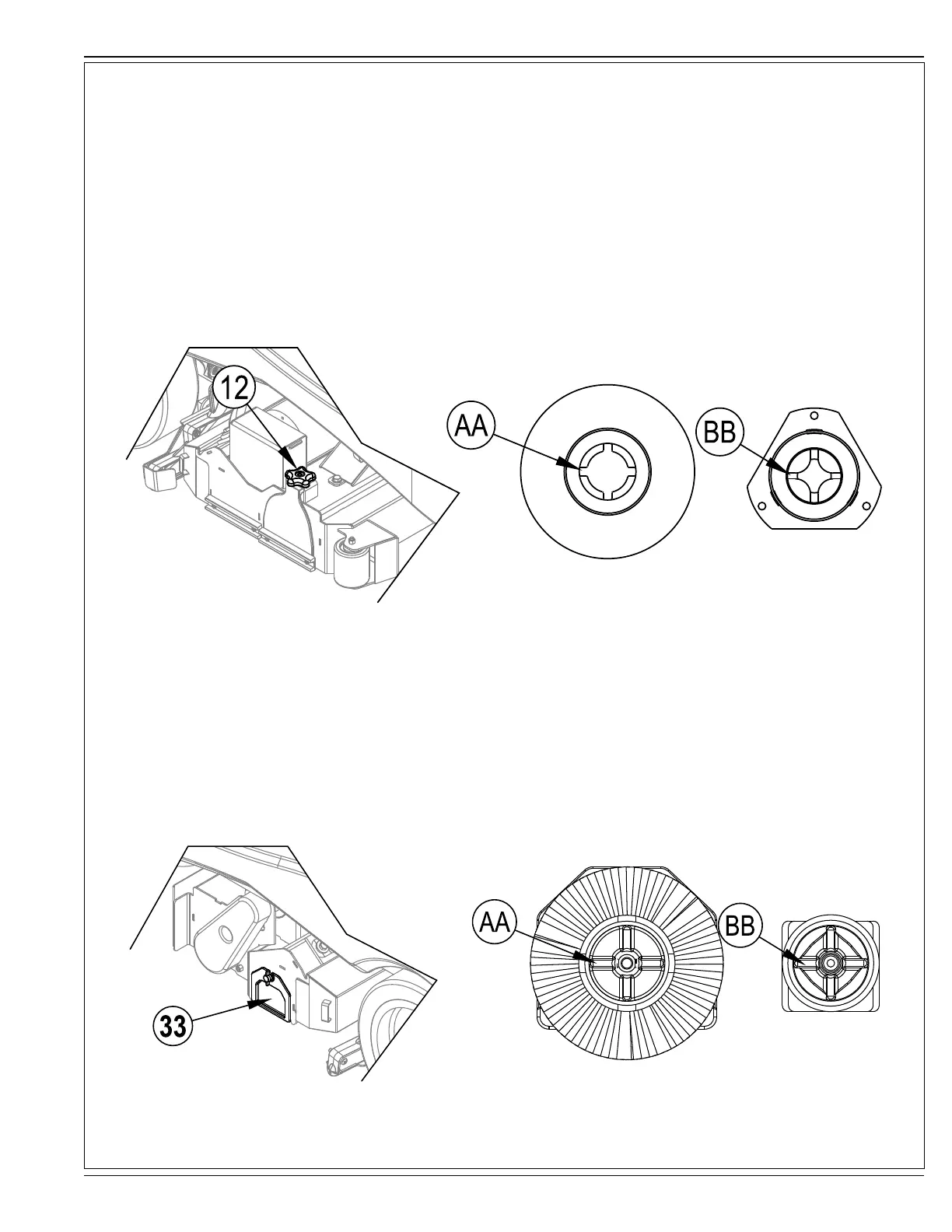

1 See Figure 6. Turn the Key Switch (A) OFF.

2 Loosen the Brush Idler Removal Knob (12) on top of the idler assembly and remove the idler assembly. Slide the brush out of the brush deck housing.

3 To reinstall, slide the brush into the housing, lift slightly, push and turn until it seats. NOTE: Make sure Slots (AA) in end of Brush line up with and seat ﬁ rmly

on Lugs (BB) on the Drive End Assembly. Re-install the idler assembly and tighten Knob (12).

FIGURE 6

REMOVING THE REAR BRUSH

1 See Figure 7. Turn the Key Switch (A) OFF.

2 Loosen the T-Knob holding the Rear Brush Access Panel (33) and slide the Panel (33). Slide the brush out of the brush deck housing.

3 To reinstall, slide the brush into the housing, lift slightly, push and turn until it seats. NOTE: Make sure Slots (AA) in end of Brush line up with and seat ﬁ rmly

on Lugs (BB) on the Drive End Assembly. Re-install the idler assembly and tighten Knob (12).

FIGURE 7
