17
HANGING INSTALLATION
The video panel is compatible with ADJ’s FLEX45RB Rigging Bar (sold separately), which easily and
securely locks to the top of the rst panel in a vertical column of up to 20 video panels, allowing
them hang from a truss, hoist, or lintel beam.
A qualied technician or trained professional is required to y the FLEX45RB Rigging Bar/
Video Panel assembly.
!

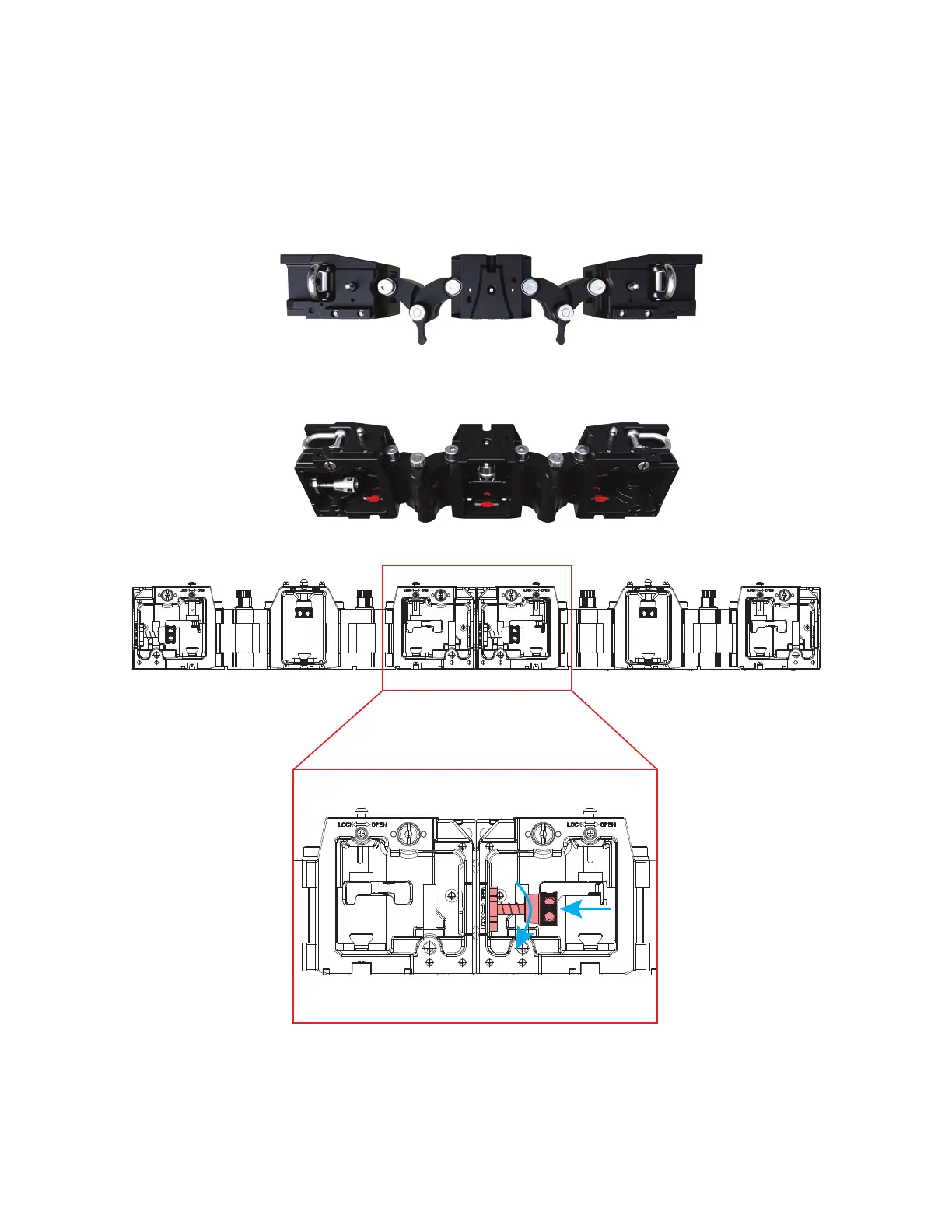

1. If your planned setup includes multiple vertical columns of panels, begin by linking the Rigging
Bars together, using one Rigging Bar for each vertical column. Use the connectors located on
each end of the Rigging Bars to link them together, as shown above. Place the Rigging Bars side
by side, then push the spring-loaded connector of one Rigging Bar through the matching connec-
tor slot of the Rigging Bar beside it. Twist the connector to lock it into position.
