Vizi Q Wash7 DMX Setup

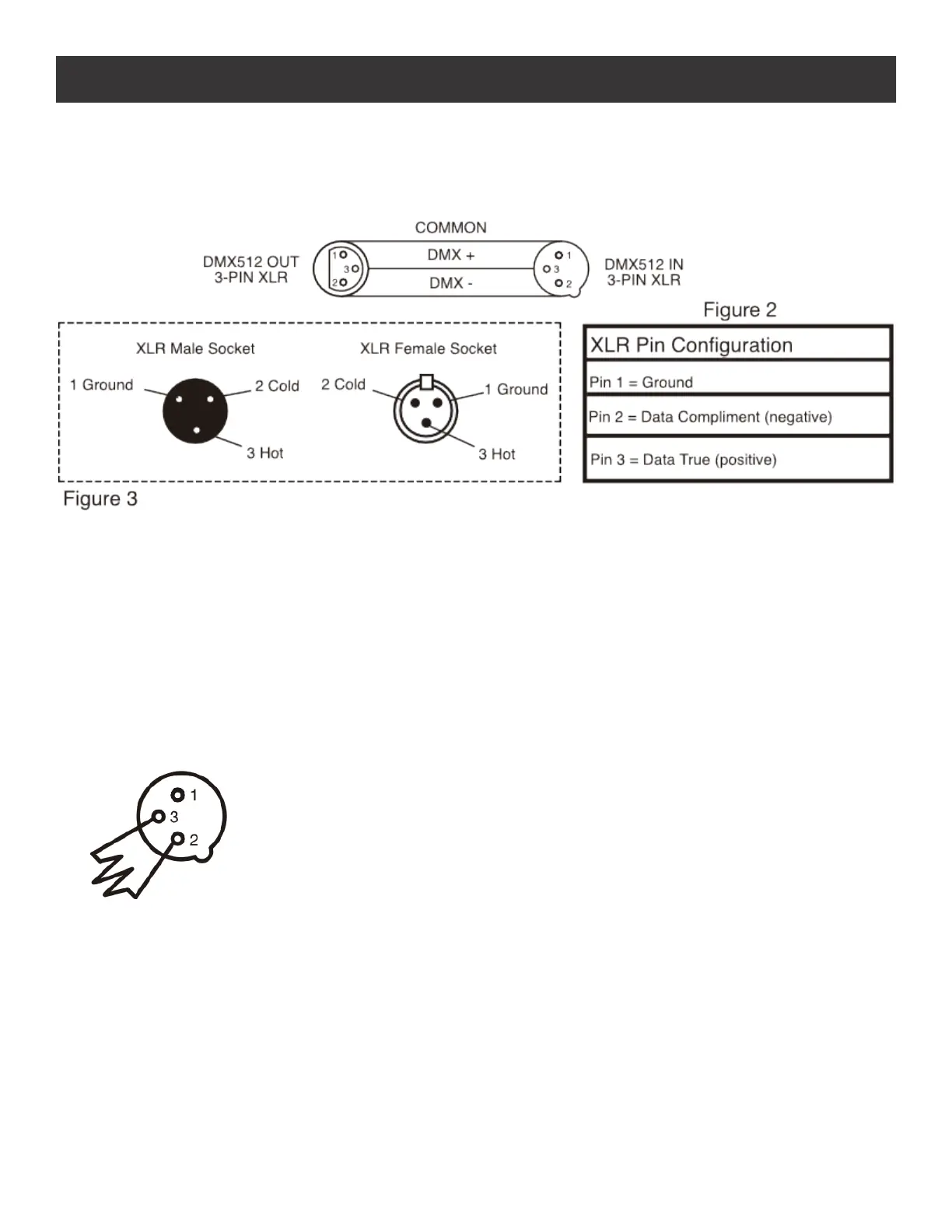

Notice: Be sure to follow gures two and three when making your own cables. Do not
use the ground lug on the XLR connector. Do not connect the cable’s shield conductor
to the ground lug or allow the shield conductor to come in contact with the XLR’s outer
casing. Grounding the shield could cause a short circuit and erratic behavior.
Special Note: Line Termination. When longer runs of cable are used, you may need
to use a terminator on the last unit to avoid erratic behavior. A terminator is a 110-120
ohm 1/4 watt resistor which is connected between pins 2 and 3 of a male XLR connector
(DATA+ and DATA-). This unit is inserted in the female XLR connector of the last unit
in your daisy chain to terminate the line. Using a cable terminator (ADJ part number
Z-DMX/T) will decrease the possibilities of erratic behavior.
Termination reduces signal errors and
avoids signal transmission problems and
interference. It is always advisable to
connect a DMX terminal, (Resistance 120
Ohm 1/4 W) between PIN 2 (DMX-) and
PIN 3 (DMX +) of the last xture.
Figure 4
