26
DMX SETUP
Power Supply: The ADJ Vizi Beam Hybrid 2R incorporates an electronic ballast, which automatically
senses the voltage when it is plugged into the power source. With the electronic ballast, this unit can be
plugged in anywhere.
DMX-512: DMX stands for Digital Multiplex. This is a universal protocol used by most lighting and
controller manufacturers as a form of communication between intelligent fixtures and controllers. A DMX
controller sends DMX data instructions from the controller to the fixture. DMX data is sent as serial data
that travels from fixture to fixture via the DATA “IN” and DATA “OUT” XLR terminals found on all DMX
fixtures (most controllers only have a DATA “OUT” terminal).
DMX Linking: DMX serves as a language that allows all makes and models from different manufacturers
to be linked and operated from a single controller if all fixtures and the controller are DMX compliant.
To ensure proper DMX data transmission when using several DMX fixtures, use the shortest cable
path possible. The order in which fixtures are connected in a DMX line does not influence the DMX
addressing. For example, a fixture assigned a DMX address of 1 may be placed anywhere in a DMX
line—at the beginning, at the end, or anywhere in the middle. Therefore, the first fixture controlled by the
controller could be the last fixture in the chain. When a fixture is assigned a DMX address of 1, the DMX
controller knows to send DATA assigned to address 1 to that unit, no matter where it is in the DMX chain.

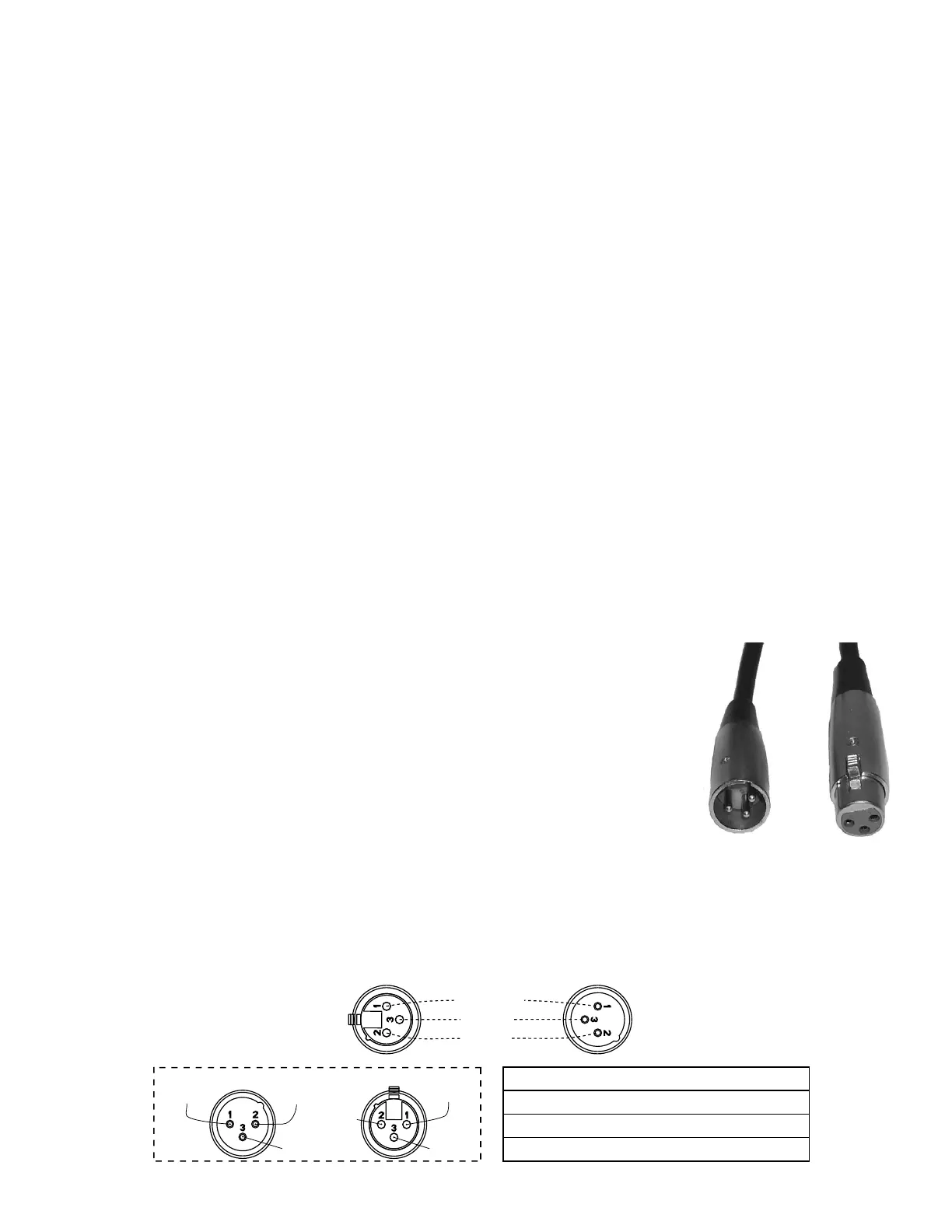

Data Cable (DMX Cable) Requirements (For DMX and Primary/Secondary Operation): The Vizi
Beam Hybrid 2R can be controlled via DMX-512 protocol. It can be either a 10, 12, or 16-channel DMX
unit. The DMX address is electronically set using the controls on the front panel
of the unit. One’s unit and DMX controller require an approved DMX-512 110
Ohm Data cable for data input and data output (Figure 1). Accu-Cable DMX
cables are recommended. If one is making their own cables, be sure to use
standard 110-120 Ohm shielded cable (This cable may be purchased at almost
all professional sound and lighting stores). Cables should be made with a male
and female XLR connector on either end of the cable. Also, remember that
DMX cable must be daisy-chained and cannot be split.
Notice: Be sure to follow figures two and three when making one’s own cables. Do not use the ground
lug on the XLR connector. Do not connect the cable’s shield conductor to the ground lug or allow the
shield conductor to contact the XLR’s outer casing. Grounding the shield could cause a short circuit and
erratic behavior.
DMX +
COMMON
DMX512 IN 3-PIN XLR
DMX512 OUT 3-PIN XLR
DMX -
3 Hot
1 Ground
2 Cold
3 Hot
1 Ground
2 Cold
XLR Male Socket XLR Female Socket
XLR Pin Conguration
Pin 1 = Ground
Pin 2 = Data Compliment (negative)
Pin 3 = Data True (positive)
