12
INSTALLATION
MULTI-UNIT SETUPS

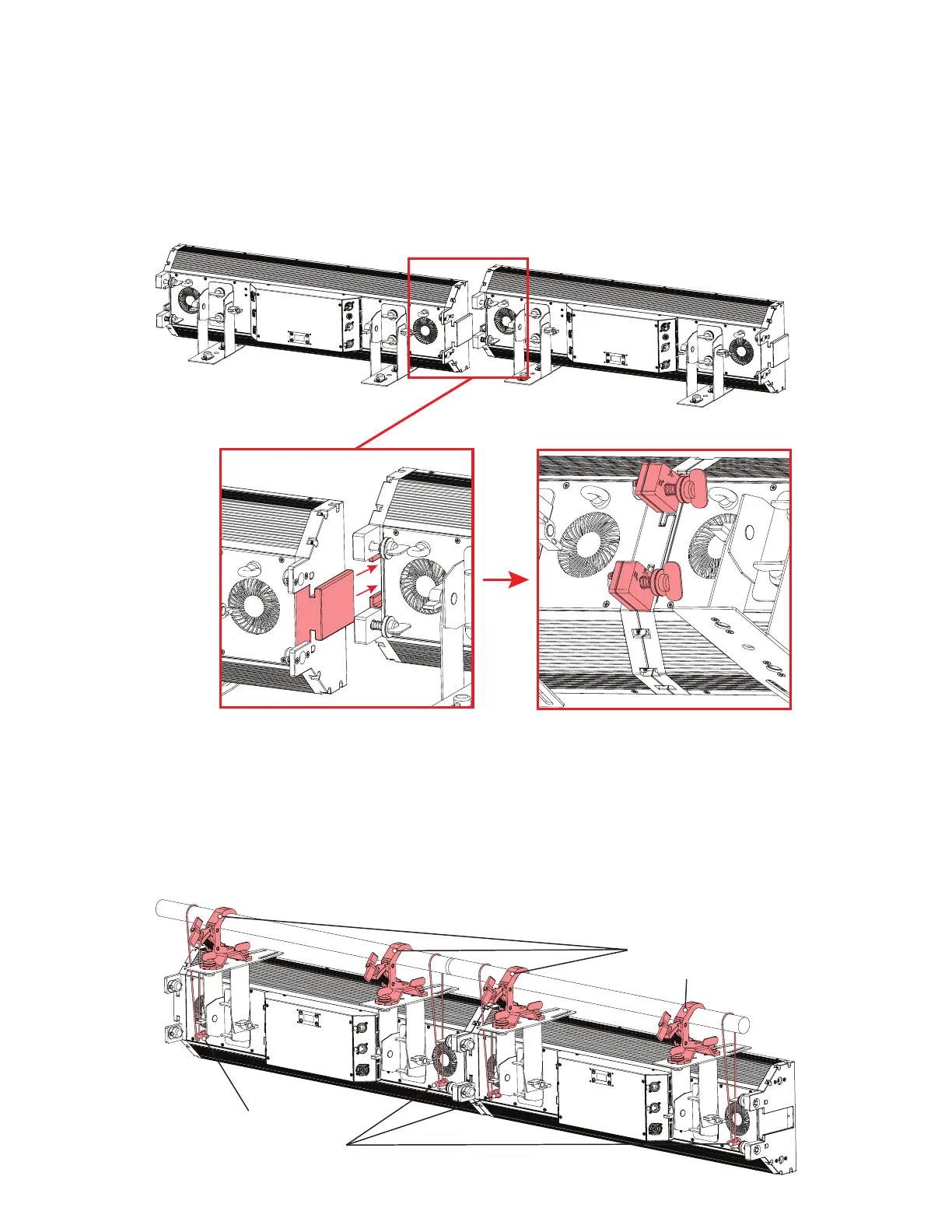

These fixtures can be linked together using connectors located on each end. First, slide the connector
bar on the end of first unit into the matching slot on the second unit, as shown in the lower left image
below. The connector bar should sit completely flush in the slot. At this point, the female interlock
connectors on the first unit should align with the male interlock connectors on the second unit, as
shown in the lower right image below. Push the twist lock connectors in and twist to lock in place.
MULTI-UNIT CLAMP MOUNTING
Multi-unit setups can also be clamped mounting in a suspended setting, using the same procedure
as a single unit installation. However, each individual fixture must be independently secured using
its own mounting clamps (2 per fixture) and safety cables (2 per fixture). End connectors are NOT
rated to support the weight of a fixture on their own, and each individual fixture must ALWAYS
be secured with mounting clamps and safety cables. Failure to do so may result severe
personal injury and damage to the fixture.
Mounting
Clamps
Safety
Cable Loops
