INSTALLATION

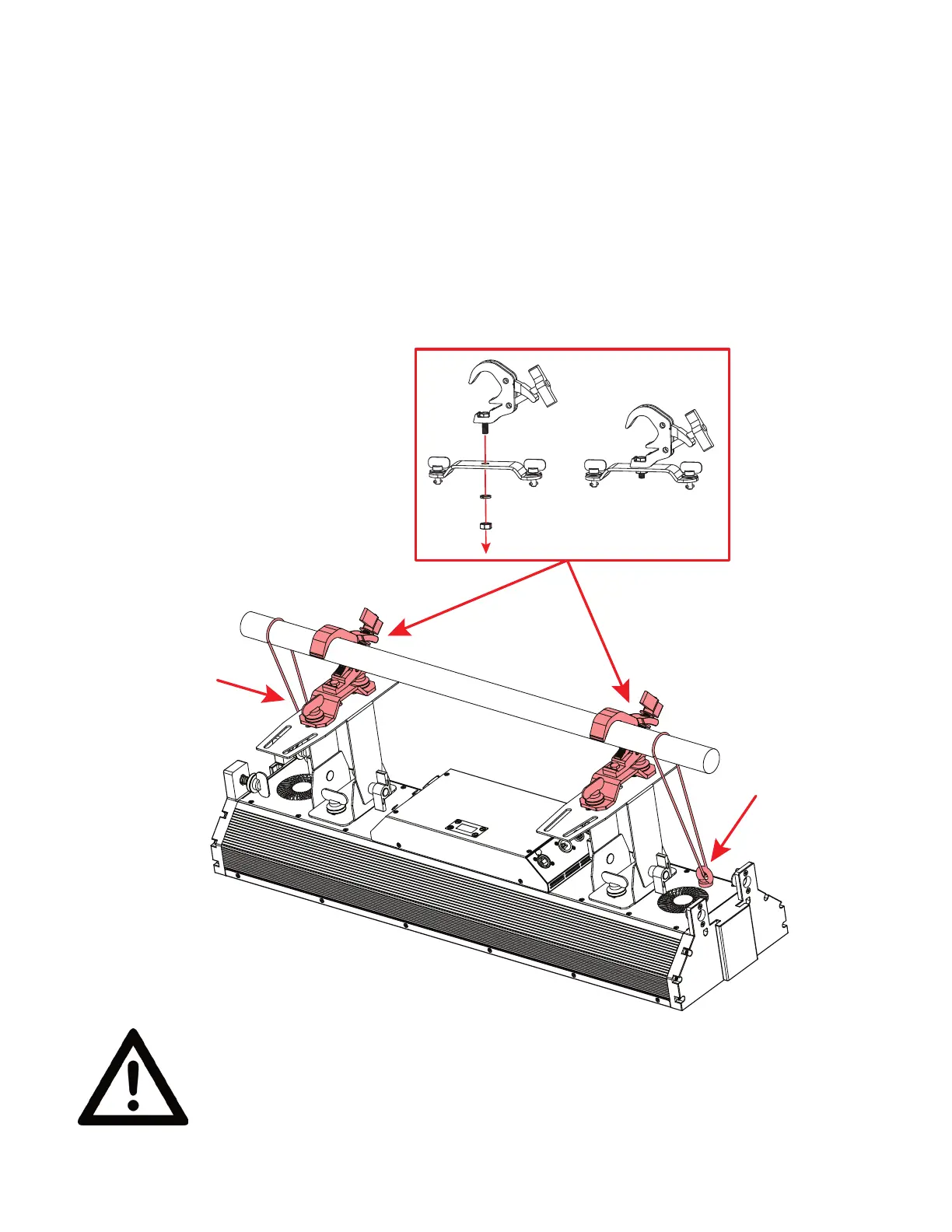

CLAMP MOUNTING
This fixture features mounting holes on each foot for the attachment of Omega clamps. When
mounting the fixture to a truss or any other suspended structure, be sure to secure an appropriately
rated clamp (not included) to each Omega bracket. Insert a bolt of appropriate size through the
bottom of the mounting clamp and the central hole on the mounting bracket, and secure them
together with a matching nut. Then insert the twist lock fasteners of the Omega bracket into the
mounting holes on the fixture, and twist to secure in place. Additionally, a safety cable of the
appropriate weight rating should be secured to the provided location near the base of each foot.
Please note that two (2) mounting clamps and two (2) safety cables are required to safety
install this device in a suspended setting.
ALWAYS ATTACH A SAFETY CABLE WHENEVER INSTALLING THIS FIX-
TURE IN A SUSPENDED ENVIRONMENT TO ENSURE THAT THE FIXTURE
WILL NOT FALL IF THE CLAMP FAILS.
SAFETY
CABLE
ATTACHED
TO LOOP
SAFETY
CABLE
ATTACHED
TO LOOP
(HIDDEN
FROM VIEW)
