Post-Lock Tab
L-Track Locks can
adjust up and
down within the
slots in the VFB1
Floor Base
Connector Tabs
L-Track
Connector
Recesses
With Fixture fully
seated, secure
the L-Track Locks
ACCESSORY INSTALLATION - VFB1 FLOOR BASE
VFB1 FLOOR BASE: MOUNTING & STACKING

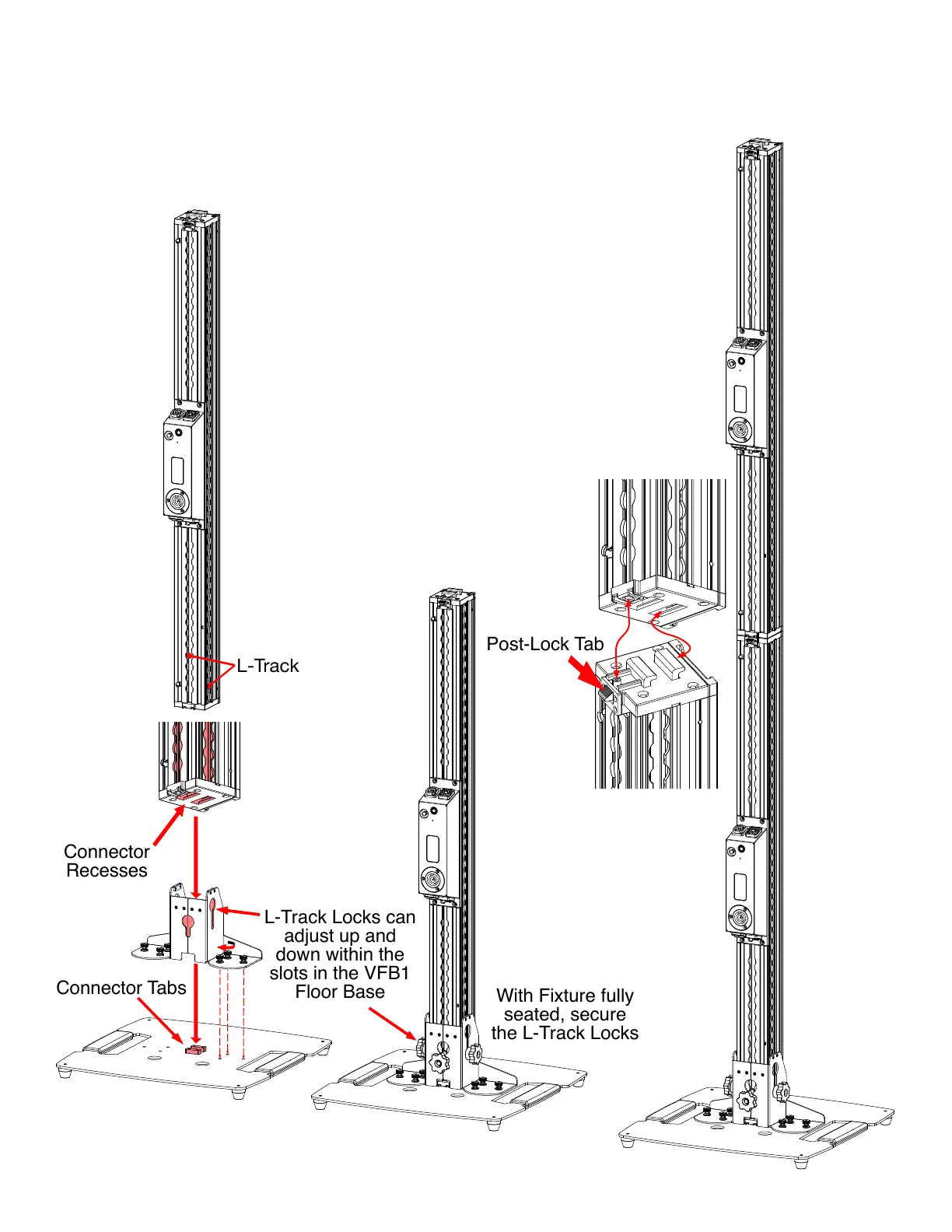

To mount the ElectraPix BAR 16 xture to the VFB1 Floor Base, align the connector
recesses located at one end of the xture with the bars on the VFB1 Floor Base.
This xture features two L-tracks mounted along the sides of the unit to mount
and secure the ElectraPix BAR 16 xture into the VFB1 Foor Base.
To stack an ElectraPix BAR 16 xture on another
ElectraPix BAR 16 xture, align the Connector
Recesses with the Connector Lock Tabs, depress the
Knurled Post-Lock Tab, hook the Connector Tabs into
the shelved Connector Recesses until the xtures are
ush, then release the knurled Post-Lock Tab to lock
it into place.
NOTE: A MAXIMUM OF TWO (2X) ELECTRAPIX
BAR 16 FIXTURES CAN BE SAFELY STACKED
ON THE VFB1 FLOOR BASE.
