17
IN ORDER TO MAINTAIN THE IP65 RATING ON THE LIGHTING FIXTURES, ALL SCREWS MUST
BE TIGHTENED TO THE FOLLOWING TORQUE SPECIFICATION USING A TORQUE DRIVER.

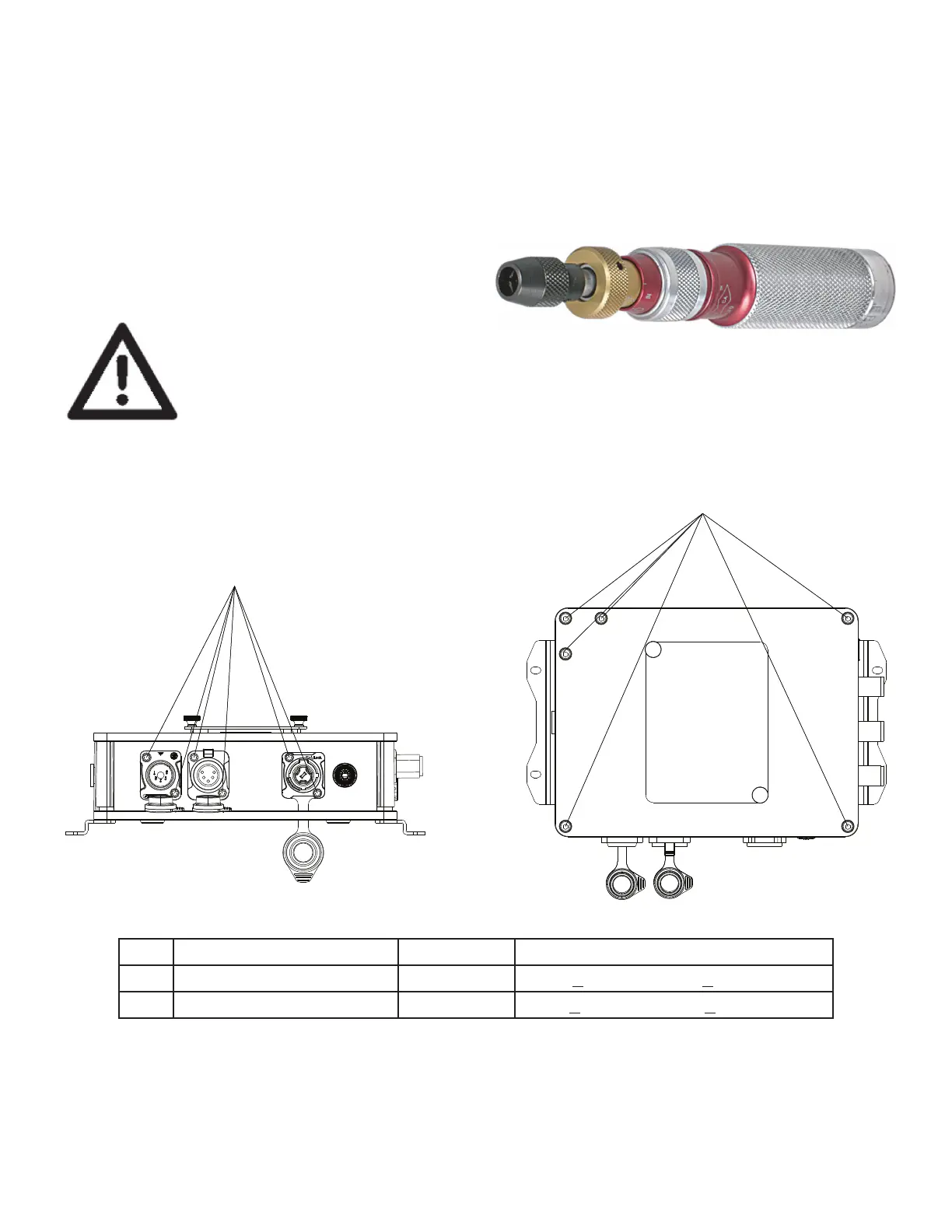

Refer to the table and diagram below for torque specifications.
TORQUE DRIVERS (Recommended): UTICA TS-30 (shown)
ALTERNATE DRIVERS:
• Proto J6107A
• Wiha 28887
NO. LOCATION QUANTITY TORQUE
1 Connector Ports 6 5.5 + 0.4 lb-in (6.3 + 0.5 kg-cm)
2 Cover Screws 6 9.4 + 0.4 lb-in (10.8 + 0.5 kg-cm)
CAUTION! DO NOT OVER TORQUE SCREWS, AS THIS CAN CAUSE
LEAKAGE ISSUES!
TORQUE SETTINGS FOR SCREWS
1
2
